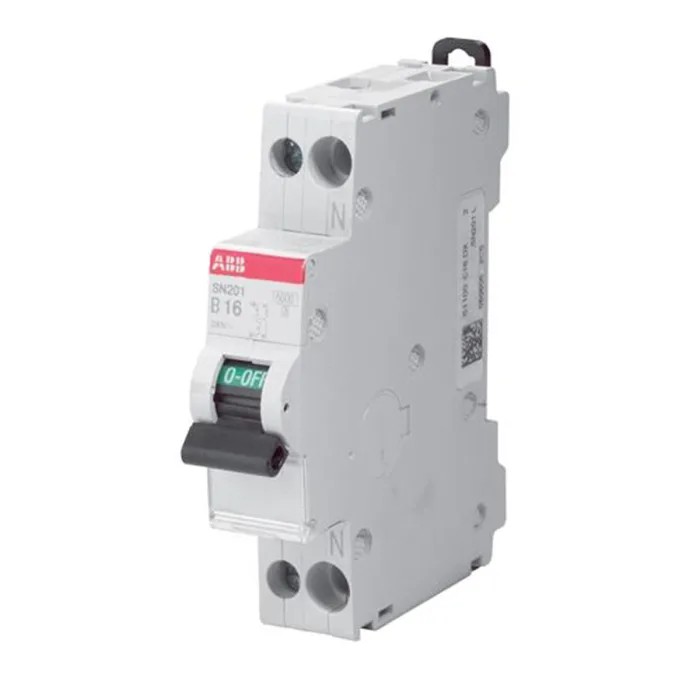

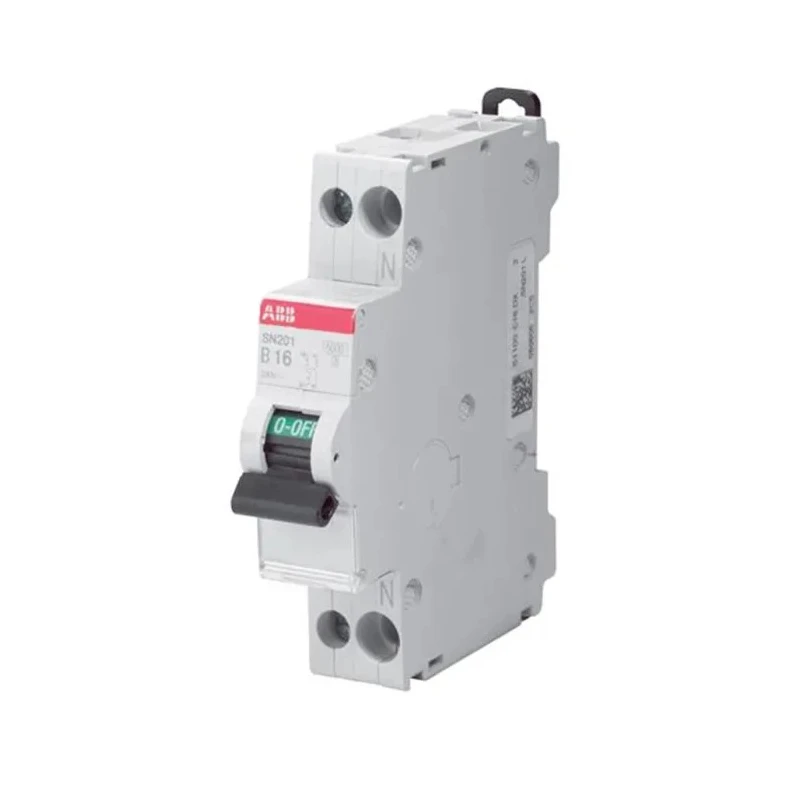

ABB Miniature Circuit Breaker SN201 1-Pole 16A Type D 230V AC 6kA Breaking Capacity

ABB SN201 Miniature Circuit Breaker model SN201 is a 1-pole + neutral configuration device rated for 16A current protection designed to safeguard electrical installations against overloads and short circuits. It operates at a rated AC voltage of 230V with a breaking capacity of 6kA, ensuring robust protection in demanding environments.

This circuit breaker features Type D tripping characteristics, making it particularly effective for circuits with motors and high inrush currents, allowing temporary overloads without nuisance tripping while ensuring circuit integrity against sustained faults.

The DIN rail mounting system facilitates easy installation and efficient space utilization in electrical panels, while the cage clamp terminal design provides secure wiring connections and maintains long-term reliability.

Its compact dimensions (18mm width, 85mm height, and 85mm depth) allow it to fit standard DIN rail setups with ease. Compliant with IEC/EN 60898-1 standards, this MCB guarantees international safety and quality benchmarks.

This product is suitable for commercial, industrial, and residential applications, including protection of long cable lengths and installations in TN and IT systems where a neutral conductor is required on the left side.

Type D tripping for high inrush current applications. 6kA breaking capacity for fault tolerance. Compact DIN rail mounting design. Cage clamp terminals for secure connections. Compliance with IEC/EN 60898-1 standards. Explore EnvMart’s comprehensive range of electrical protection devices for industrial, commercial, and residential needs.
