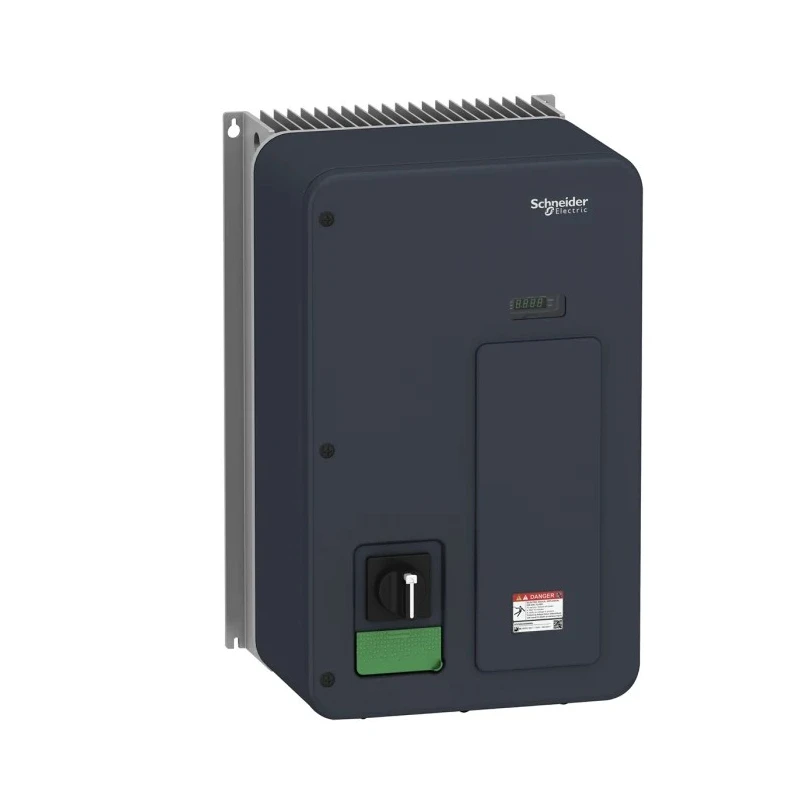

Schneider Electric Variable Speed Drive, 5.5 kW, 3 Phase, Altivar Series, 500V AC, 14.3 A ATV320U55N4WS
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U55N4WS |
| IP Rating | IP65 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 320mm |
| Series | Altivar |
| Overall Width | 300mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 14.3A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 521mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, Asynchronous Motor, AC Motor |
Key Features
- Designed for synchronous and asynchronous three-phase AC motors.
- IP65 rating enables use in washdown and harsh environments.
- Integrated Modbus and CANopen communication protocols via RJ45 connector.
- Fanless design with embedded EMC C2 filter for reliable operation.
- Operating temperature range from -10°C to +60°C.
- Complies with IEC, UL, TUV, KC, and other international safety standards.
- Suitable for conveyors, packaging, woodworking, metal processing, and food & beverage sectors.
- Compact dimensions 320 mm length, 300 mm width, and 521 mm depth.
Product Description
Schneider Electric ATV320U55N4WS is a variable speed drive designed for advanced motor control applications in industrial automation and manufacturing. This model delivers 5.5 kW power and supports three-phase AC motors, operating at a supply voltage range between 380V and 500V AC, with a maximum output current of 14.3 A.
The drive features a high ingress protection rating of IP65, making it washdown-capable and suitable for harsh and chemically polluted environments common in food and beverage industries. It comes without a fan and includes an embedded EMC C2 filter, ensuring compliance with electromagnetic compatibility standards for safe operation.
Communication protocols such as Modbus and CANopen, accessible via an RJ45 connector, allow easy network integration for automation architectures. Its operating temperature range spans from -10°C to +60°C, providing reliable performance over diverse industrial conditions.
The ATV320U55N4WS drive supports both synchronous and asynchronous motors, delivering dynamic accuracy even at low speeds, which is ideal for start/stop applications, conveyors, carton packers, gantry cranes, woodworking machines, and metal processing equipment. It features five safety functions configurable through SoMove software to help meet machinery safety requirements.
Designed for flexible installation, it can be mounted on walls and placed side-by-side in multi-drive setups. It meets various national and international standards including CSA, UL 61800-5-1, EN/IEC 61800-3, IEC 61508, NOM, and REACH, assuring quality and regulatory compliance.
Designed for synchronous and asynchronous three-phase AC motors. IP65 rating enables use in washdown and harsh environments. Integrated Modbus and CANopen communication protocols via RJ45 connector. Fanless design with embedded EMC C2 filter for reliable operation.
Operating temperature range from -10°C to +60°C. Complies with IEC, UL, TUV, KC, and other international safety standards. Suitable for conveyors, packaging, woodworking, metal processing, and food & beverage sectors. Compact dimensions 320 mm length, 300 mm width, and 521 mm depth.
Weight of 22.7 kg enables easy handling and installation. Software compatibility with EcoStruxure Machine environment for integrated machine development.
Schneider Electric’s Altivar Machine ATV320U55N4WS exemplifies advanced industrial Variable Speed Drives, facilitating energy savings and operational efficiency in demanding applications. Explore more automation and control gear options on EnvMart to optimize your industrial and manufacturing setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This variable speed drive has a power rating of 5.5 kW, suitable for controlling three-phase AC motors.
The maximum output current for the ATV320U55N4WS is 14.3 A, allowing it to effectively manage motor loads.
The operating temperature range for this model is from -10°C to +60°C, ensuring reliable performance in various industrial conditions.
This drive is compatible with both synchronous and asynchronous three-phase AC motors, making it versatile for different applications.
The ATV320U55N4WS has an IP65 rating, which means it is protected against dust and can withstand water exposure, suitable for harsh environments.
It supports communication protocols such as Modbus, CANopen, EtherNet/IP, Profinet, EtherCAT, and DeviceNet, facilitating easy integration into automation systems.
The dimensions of this drive are 320 mm in length, 300 mm in width, and 521 mm in depth, making it compact for installation.
This model is designed for wall mounting, allowing for flexible installation in various environments.
The output frequency range for the ATV320U55N4WS is from 0.1 Hz to 599 Hz, providing a wide range for motor speed control.
It features five configurable safety functions that can be set up using SoMove software, helping to meet machinery safety requirements.
This model complies with various international safety standards including IEC, UL, TUV, and KC, ensuring quality and regulatory adherence.
This drive is suitable for applications in sectors such as conveyors, packaging, woodworking, metal processing, and food & beverage industries.
