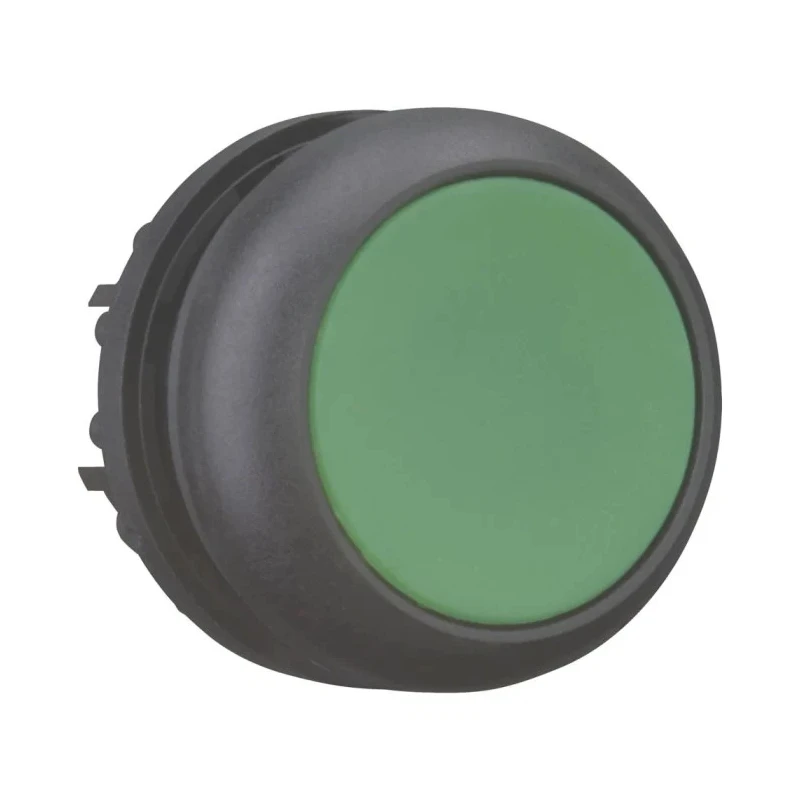

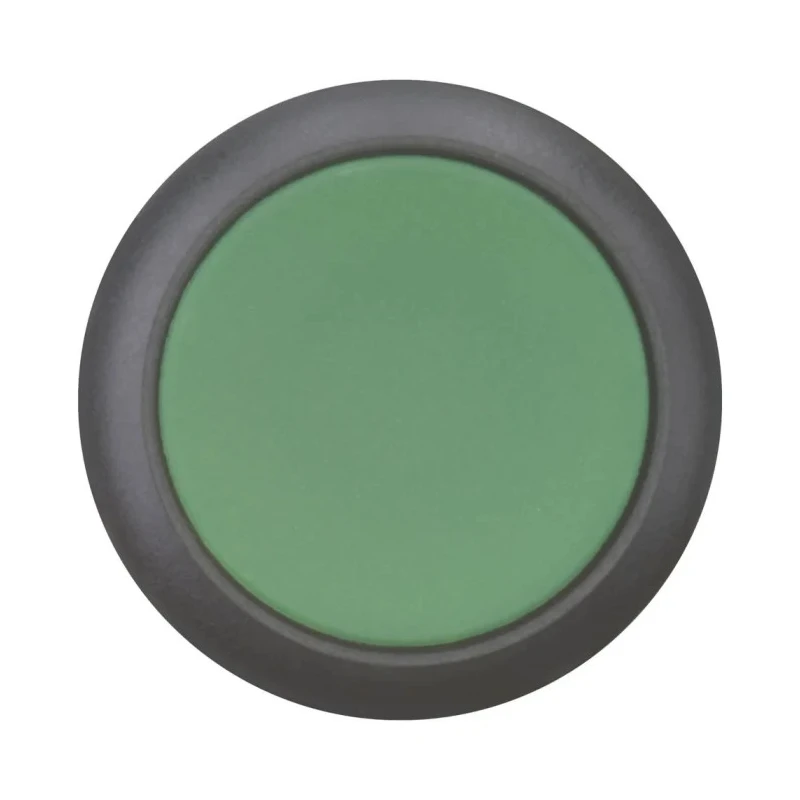

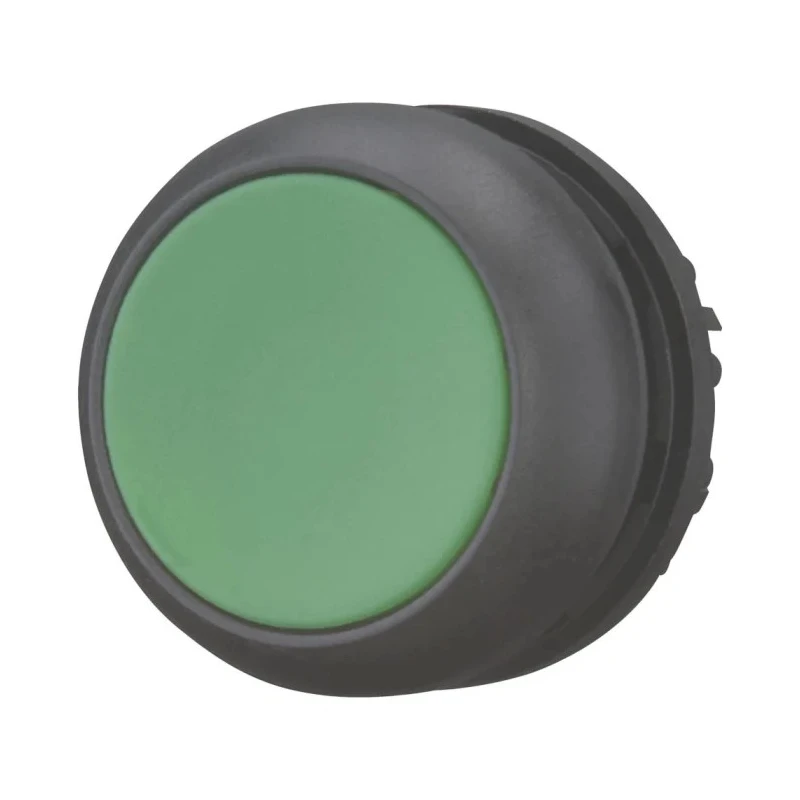

Eaton RMQ Titan M22 Series Green Round Push Button Switch, Momentary Spring Return, Panel Mount, 22 mm 216597 M22S-D-G

Eaton 216597 M22S-D-G RMQ Titan M22 Series push button switch is a high-quality momentary switch with spring return designed for panel mount applications. Featuring a green, round actuator with a 22 mm cut-out diameter, this switch offers durable performance in demanding industrial and commercial environments.

The device supports a contact DC voltage of 30 V and is engineered to function reliably within a temperature range of -25°C to +70°C. Its robust plastic construction provides impact resistance and corrosion protection, ensuring longevity even under harsh conditions.

With an IP67 rating, the switch is fully dust-tight and protected against immersion up to 1 meter, while the IP69K rating certifies resistance to high-pressure, high-temperature washdown, ideal for environments requiring stringent cleanliness and durability.

The spring return mechanism facilitates rapid and automatic reset of the switch actuator after each use, enhancing control efficiency in automation systems. Compact dimensions of 30 mm in length, width, and height allow space-efficient installation on control panels or machinery interfaces.

Spring return mechanism ensures reliable reset after activation. Green round actuator enhances user visibility and operational accuracy. Standard 22 mm panel cut-out size for versatile mounting options. IP67 and IP69K ratings protect against dust ingress and washdown conditions.

Durable plastic casing for long-term reliability and environmental resistance. Operates safely up to 30 V dc contact voltage. Wide operating temperature from -25°C to 70°C for various settings. Complies with IEC/EN 60529 and UL NEMA standards for quality and safety.

Compact 30 mm cube form factor for use in limited spaces or panels. Widely used in industrial control panels, automation, and electrical switching applications.

This Eaton Push Button Switch is ideal for integration into control panels for automation machinery, electrical systems, and other industrial applications where reliability and ruggedness are crucial. Its certified IP ratings make it suitable for both indoor and outdoor protected environments and demanding washdown contexts.
