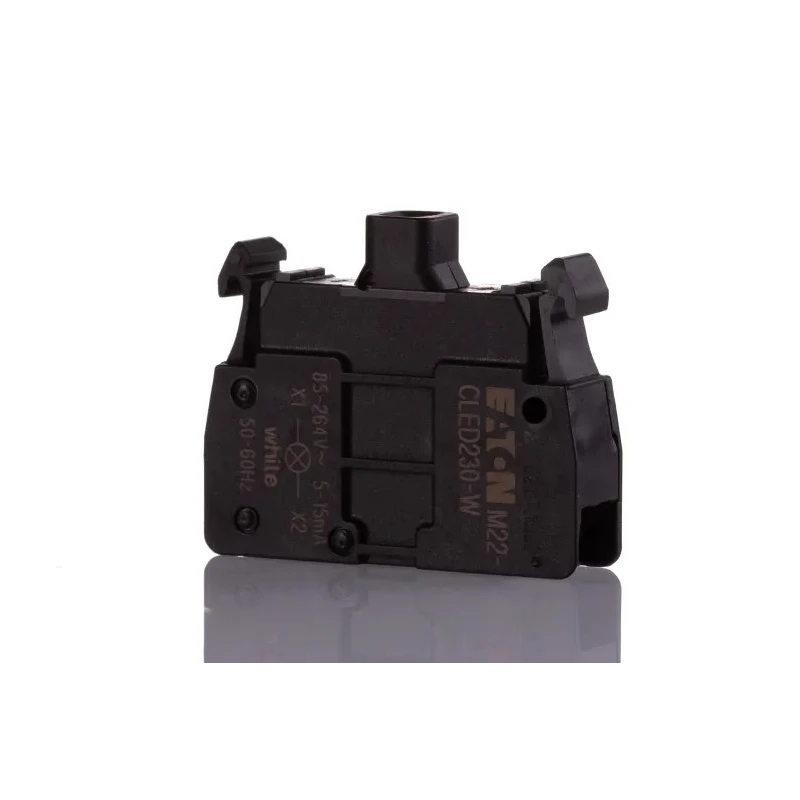

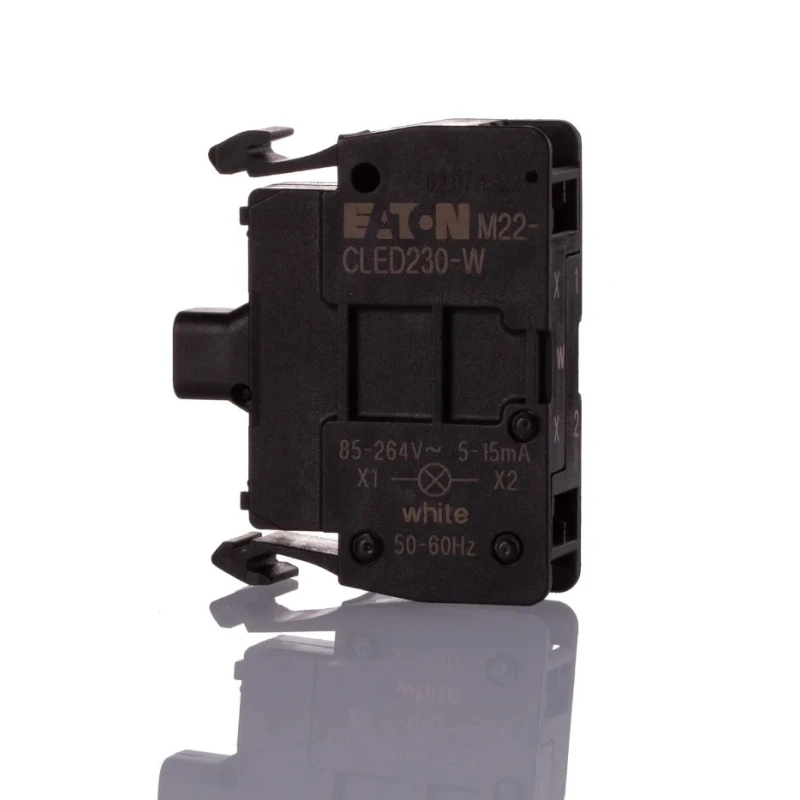

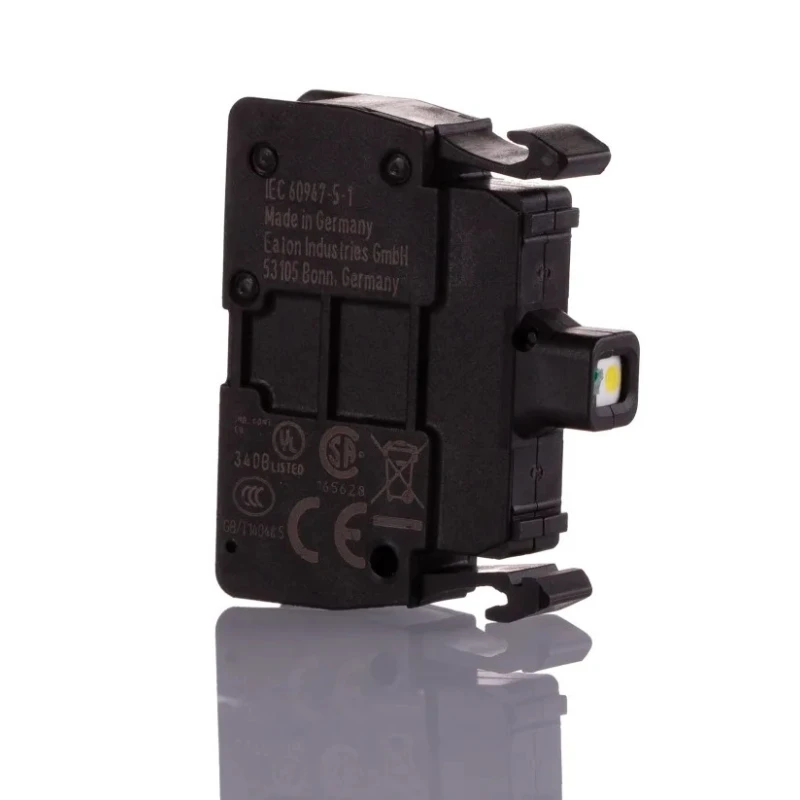

Eaton M22 Series Light Block, LED Illuminated, White Light, 264V AC, 15mA Current Rating, IP20 216575 M22-CLED230-W

The Eaton 216575 M22-CLED230-W M22 Series Light Block is a high-performance LED illuminated light block engineered for use in industrial, laboratory, and automation control environments. Operating at 264V AC with a low current draw of 15mA, this white LED light block provides clear visual indication suitable for push button assemblies in control panels.

Part of Eaton's modular M22 series, this light block is designed for easy compatibility with a wide range of contact blocks and push button components. Its LED illumination offers energy efficiency with a power consumption of just 0.33W, minimizing heat generation and enhancing device longevity.

Engineered to withstand tough operating conditions, it supports a broad temperature range from -25°C to 70°C and features an IEC IP20 rating for finger-safe protection. The device resists impacts up to 30g and can tolerate impulse voltages up to 6000V AC, bolstering its electrical and mechanical robustness.

The compact dimensions of 39mm height, 71mm length, and 30mm width provide versatile installation options within industrial control stations and factory automation lines. Electrical safety compliance with standards such as CSA-C22.2 No. 14-05, IEC 60947-5-1, UL 508, and CE marking ensures reliable performance and regulatory adherence.

This light block offers a rated life of 100,000 operating cycles, making it a dependable choice for long-term industrial applications requiring bright, white LED indication. Energy-efficient LED with low power consumption of 0.33W.

15mA current rating suitable for low-power applications. State-of-the-art impulse withstand voltage rating of 6000V AC for enhanced electrical safety. IP20 protection ensures finger-safe operation against objects larger than 12mm.

Robust mechanical design capable of withstanding impacts up to 30g. Wide operating temperature range from -25°C to 70°C for diverse environments. Compact dimensions: 39mm height, 71mm length, 30mm width. Compliance with IEC, UL, CSA, and CE standards for global regulatory requirements.

Durable lifespan of 100,000 operating cycles suitable for automation and control systems.

This Eaton M22 Series Light Block is an ideal component for factory automation, manufacturing, electrical control panels, and industrial machinery requiring reliable LED indication. Its modular and compliant design simplifies integration into existing modular systems.
