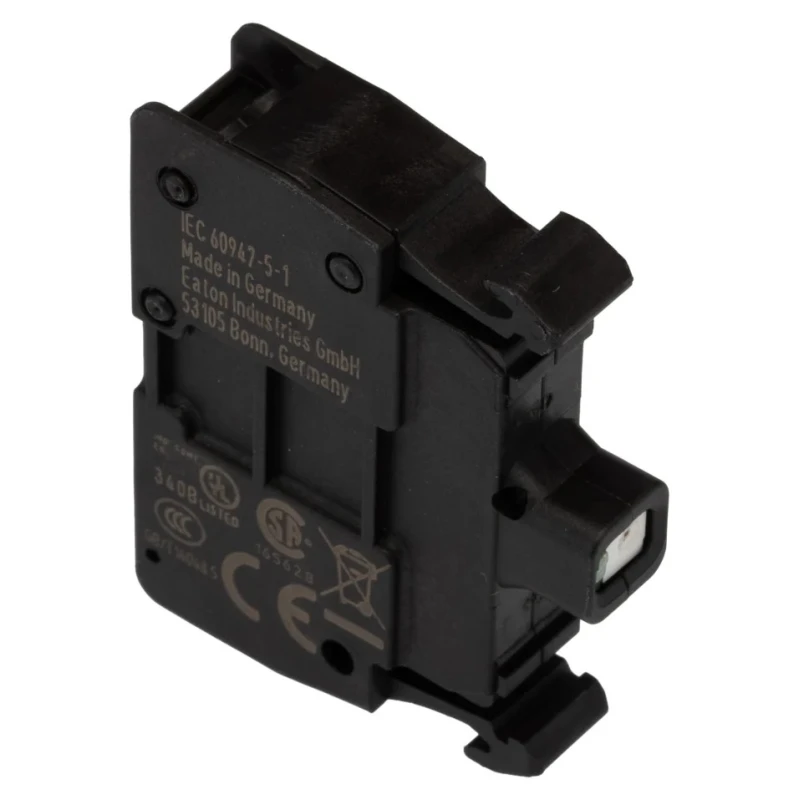

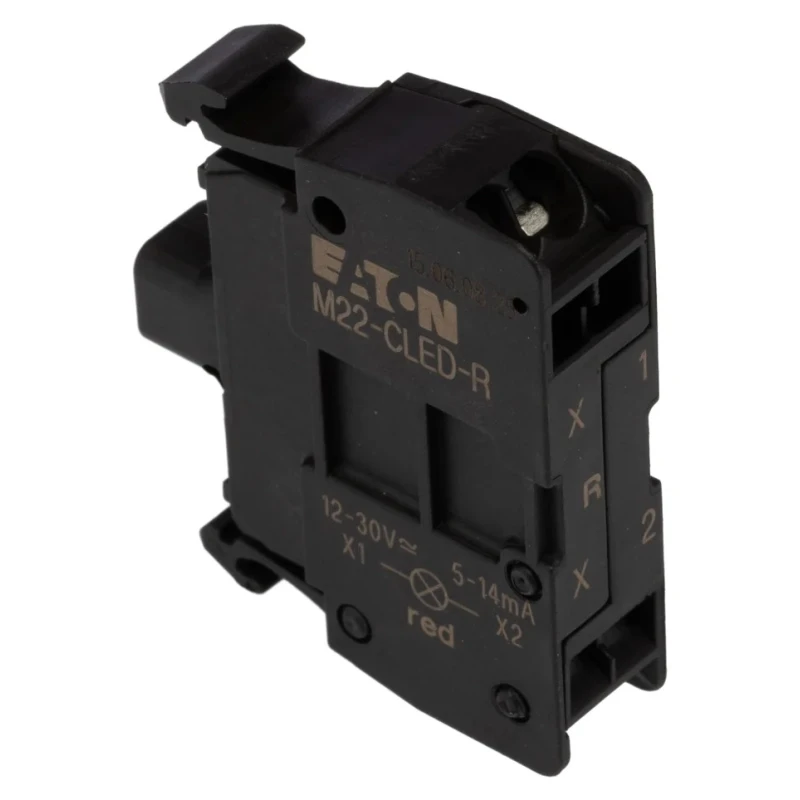

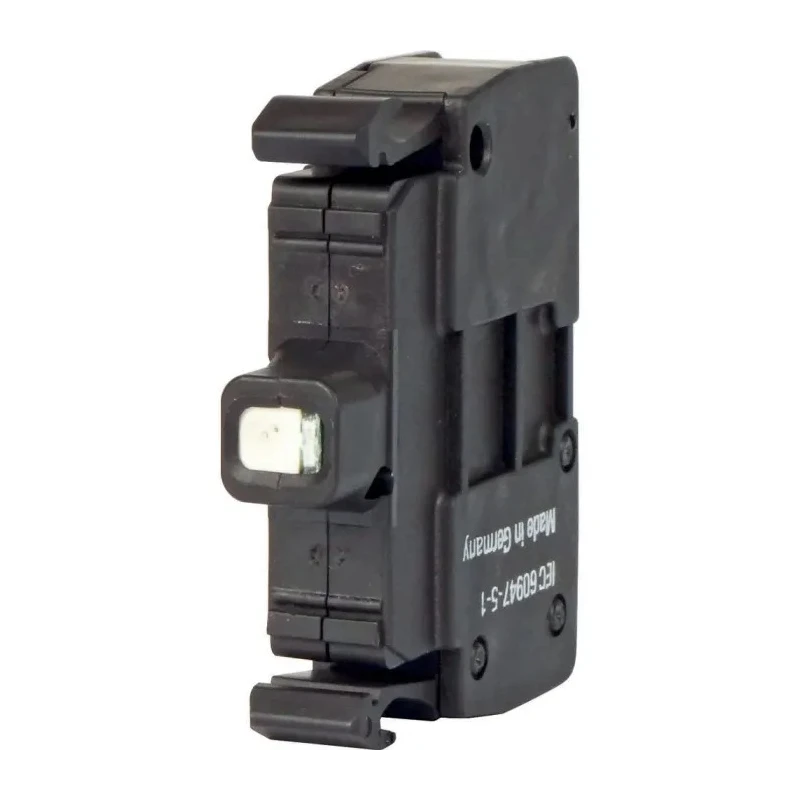

Eaton M22 Series Light Block, 30 V ac, 30V dc, Red LED Illumination 216570 M22-CLED-R
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 30, 30V ac |
| Brand | Eaton |
| Height | 39mm |
| Length | 71mm |
| Model | 216570 M22-CLED-R |
| Width | 30mm |
| Current Rating | 15mA |
| Series | M22 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Illumination type | LED |
| Block Type | Light Block |
| Illumination Colour | Red |
| Cooper Bussmann 8A Cartridge Fuse, 14 x 51mmBrand | Cooper Bussmann |
| Eaton M22 Series, 12 → 30V ac/dc, Red LightBrand | Eaton |
Key Features
- This light block uses energy-efficient LED technology with a distinct red illumination color.
- Designed for robust use with operating temperature from -25°C to +70°C.
- Features screw terminal connections for easy wiring with solid and stranded wires from 0.5 to 2.5 mm².
- Manufactured to internationally recognized standards including IEC/EN 60947-5 and UL 508.
- Compact dimensions measuring 71 mm length, 39 mm height, and 30 mm width ensure suitability for panel mounting.
- Impulse voltage withstand rating of 6 kV guarantees durability against electrical surges.
- IP20 rated for finger-safe operation, protecting against objects greater than 12 mm.
- Ideal for industrial automation, machinery control panels, and manufacturing environments.
Product Description
Eaton 216570 M22-CLED-R Light Block is a reliable push button contact block featuring low power LED illumination designed for industrial control panels operating at 30 V ac and 30V dc. The red LED provides clear visual indication when switches are activated, enhancing safety and operational monitoring.
This unit supports screw terminal types compatible with solid and stranded wiring sizes between 0.5 mm² to 2.5 mm², facilitating straightforward electrical connections. Its robust construction allows for operation across a temperature range from -25°C to +70°C, making it suitable for demanding industrial settings.
Compliant with IEC/EN 60947-5, UL 508, CSA standards, and CE marking, this M22 series light block offers trustworthy performance with an impulse withstand voltage rating of 6 kV to protect against electrical spikes.
Its IP20 protection rating ensures finger safety by preventing accidental contact with live parts. The compact form factor with dimensions of 71 mm (length), 39 mm (height), and 30 mm (width) makes it ideal for panel installation where space is constrained.
This product is manufactured in Germany to stringent quality standards, suited to industrial automation, manufacturing controls, and electrical switchgear systems. This light block uses energy-efficient LED technology with a distinct red illumination color.
Designed for robust use with operating temperature from -25°C to +70°C. Features screw terminal connections for easy wiring with solid and stranded wires from 0.5 to 2.5 mm². Manufactured to internationally recognized standards including IEC/EN 60947-5 and UL 508.
Compact dimensions measuring 71 mm length, 39 mm height, and 30 mm width ensure suitability for panel mounting. Impulse voltage withstand rating of 6 kV guarantees durability against electrical surges. IP20 rated for finger-safe operation, protecting against objects greater than 12 mm.
Ideal for industrial automation, machinery control panels, and manufacturing environments. Explore more Eaton push button components and LED signaling solutions on EnvMart to enhance your electrical systems with reliable industrial-grade products.
Explore more products in our Push Button Contact Blocks & Light Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This light block features low power LED illumination, specifically in red color, providing clear visual indication when activated.
The dimensions of this model are 71 mm in length, 39 mm in height, and 30 mm in width, making it suitable for panel mounting.
It operates within a temperature range of -25°C to +70°C, suitable for demanding industrial environments.
This model supports voltage ratings of 30 V ac and 30 V dc, making it versatile for various applications.
It features screw terminal connections that are compatible with solid and stranded wiring sizes from 0.5 mm² to 2.5 mm², facilitating easy wiring.
The light block has an impulse voltage withstand rating of 6 kV, providing protection against electrical surges.
Yes, it is manufactured to comply with internationally recognized standards including IEC/EN 60947-5 and UL 508, ensuring reliable performance.
The current rating for this model is 15 mA, which is suitable for its intended applications in industrial settings.
This unit has an IP20 protection rating, which ensures finger-safe operation by preventing contact with live parts greater than 12 mm.
The Eaton M22-CLED-R is manufactured in Germany, adhering to stringent quality standards.
It is ideal for use in industrial automation, machinery control panels, and manufacturing environments, enhancing operational monitoring.
Key features include energy-efficient LED technology, a compact design for panel mounting, and a wide operating temperature range, among others.
