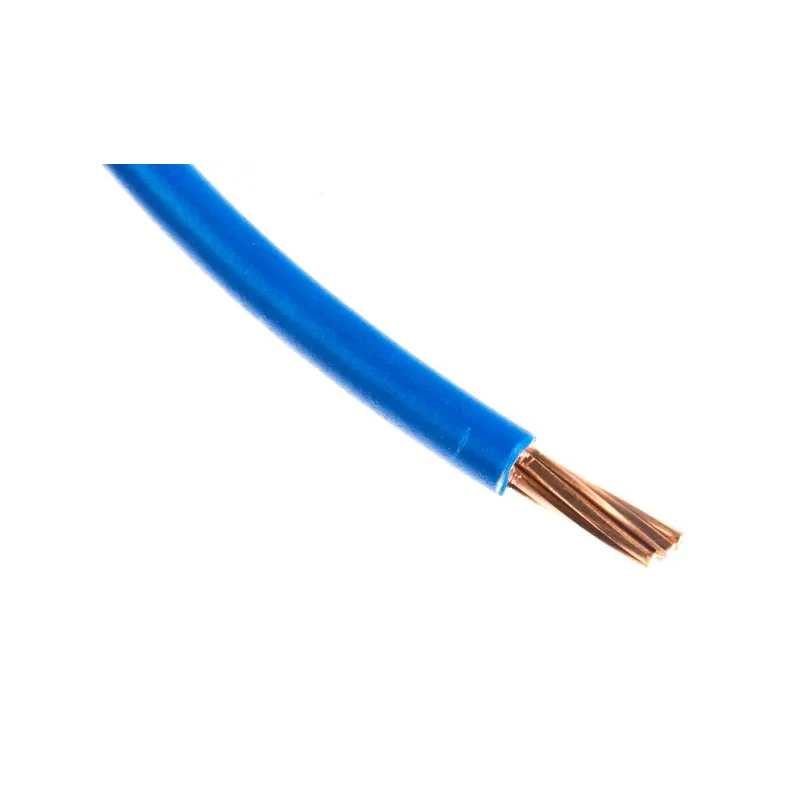

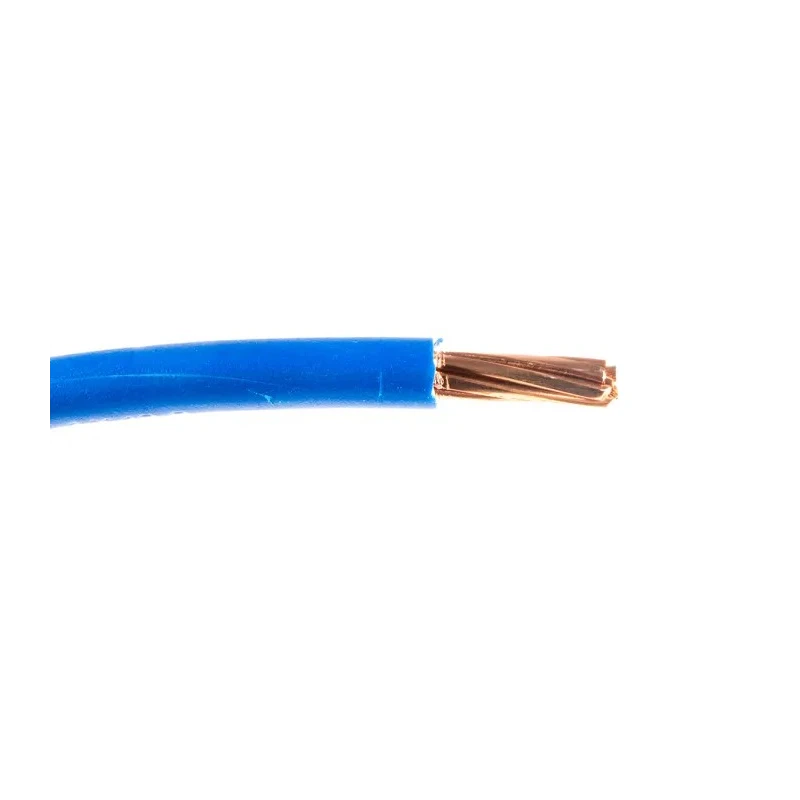

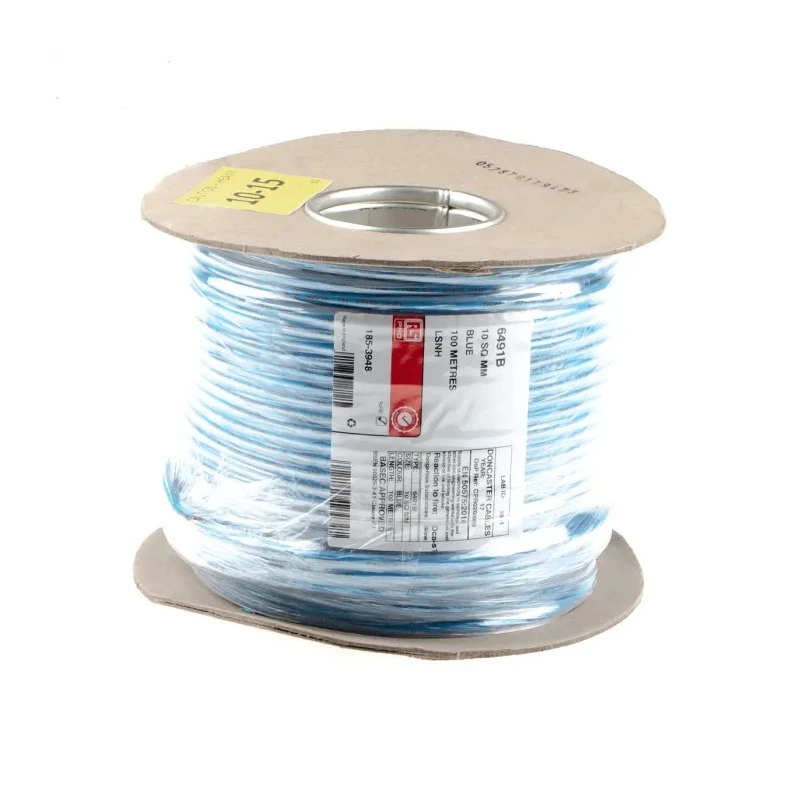

RS PRO Blue Hook Up Wire 7/1.35 mm Core Strands, 100 m Length, Thermoplastic Polyolefin Insulation, Stranded LSNH 185-3948

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Blue Hook Up Wire 7/1.35 mm Core Strands, 100 m Length, Thermoplastic Polyolefin Insulation, Stranded LSNH 185-3948

Name: RS PRO Blue Hook Up Wire 7/1.35 mm Core Strands, 100 m Length, Thermoplastic Polyolefin Insulation, Stranded LSNH 185-3948
Brand: RS PRO
SKU: 256744
Price: 786.24 USD
Availability: InStock



Category Hook Up Wire Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Voltage	450, 750V dc
Brand	RS PRO
Model	185-3948
Cable Length	100m
Series	6491B
Outside diameter	7mm
Maximum Operating Temperature	90°C
Conductor Material	Copper
Sub Type	Stranded Lsnh
Cable Type	Conduit
Minimum Operating Temperature	-15°C
Jacket Material	Thermoplastic Polyolefin
Jacket Colour	Blue
Fire Behaviour	Low Smoke Non-Halogen (LSNH), Designed for reduced smoke and acid gas emission
Number of Strands	7
Core Strands	7 x 1.35mm
Size of Strands	1.35mm
Insulation Wall Thickness	1mm
Standards/Approvals BS EN 50525-3-41	2011 Clause 4.1
BS EN 50525-3-41	2011

Key Features

The cable features stranded LSNH insulation for low smoke and non-halogen fire behaviour.
It has a nominal voltage rating of 450 V DC and 750 V AC suitable for various electrical applications.
The conductor consists of 7 strands at 1.35 mm diameter, made from high-quality copper material.
The cable length is 100 meters, with an outside diameter of 7 mm and insulation wall thickness of 1 mm.
It operates reliably in temperature ranges from -15°C minimum to 90°C maximum.
The blue jacket material is thermoplastic polyolefin providing mechanical and environmental protection.
Ideal for use in fixed protection installations and switchgear or controlgear wiring.

Product Description

RS PRO 185-3948 is a professional-grade blue hook up wire from the 6491B Series featuring 7 stranded copper core strands at 1.35 mm diameter each. This single-core cable is 100 meters long and insulated with thermoplastic polyolefin that provides a low smoke non-halogen (LSNH) jacket for improved fire safety.

The wire is designed to conform to BS EN 50525-3-41:2011 Clause 4.1, ensuring compliance with industrial cable standards suitable for conduit installation. It supports a voltage rating of 450 V DC and 750 V AC and can operate safely within a temperature range of -15°C to 90°C, making it suitable for a wide range of electrical wiring and automation applications.

Its nominal outer diameter of 7 mm and insulation thickness of 1 mm provide mechanical durability, while the stranded copper conductor ensures flexibility and reliable conductivity. The blue conduit-type cable is ideal for fixed protection installations, switchgear, controlgear wiring, and other professional electrical projects requiring compliance with modern fire safety regulations.

The stranded LSNH thermoplastic insulation diminishes smoke and acid gas emissions during fire incidents. High-quality copper conductor strands provide excellent electrical conductivity. Designed for use in surface-mounted or embedded conduit channels for secure wiring.

The cable's operational range supports industrial, commercial, and HVAC control systems. Constructed with thermoplastic polyolefin for enhanced electrical and mechanical protection. This cable is manufactured in the United Kingdom, ensuring compliance with stringent quality and safety standards for electrical wiring products.

For reliable and safe conduit wiring installations, RS PRO 6491B Series Blue Hook Up Wire offers a professional solution combining safety, performance, and compliance, suitable for industrial and commercial electrical projects requiring durable, low smoke, non-halogen insulation.
