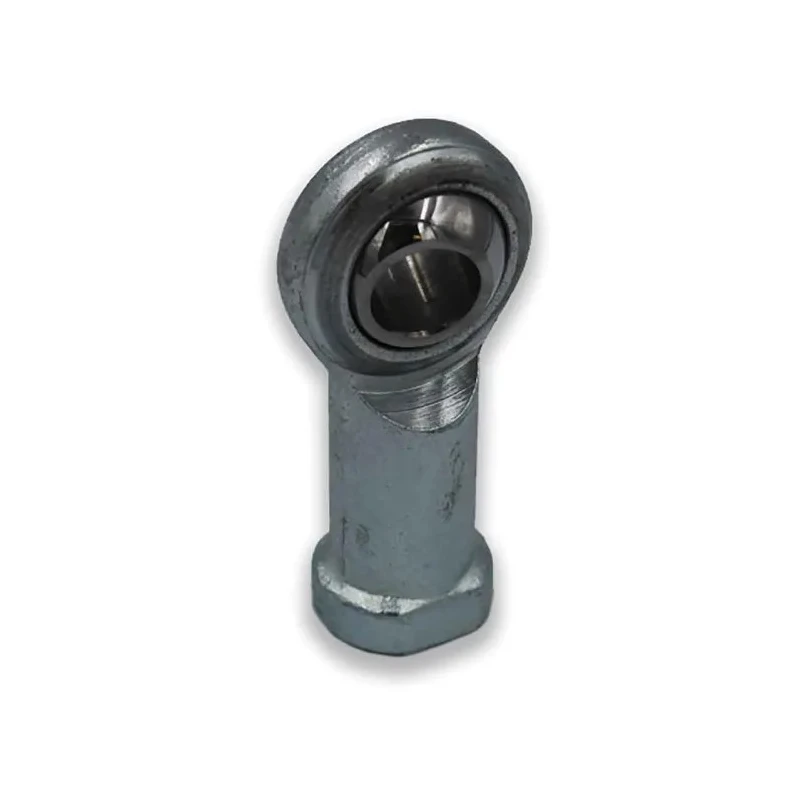

LDK M16 Female Carbon Steel Rod End with 16mm Bore, Left Hand Thread Precision PHS 16ECL

LDK PHS 16ECL Female Carbon Steel Rod End is a precision mechanical component designed with a 16mm bore and M16 x 2 left hand thread for industrial applications. This rod end features a robust carbon steel body coated with clear zinc plating to provide corrosion resistance and structural strength necessary for demanding use.

The internal ball is crafted from AISI 52100 bearing steel, which is heat treated to HRC58-64, providing exceptional hardness and wear resistance. This ball is precision ground and polished to ensure smooth rotary motion and low friction during operation.

The PTFE composite race and steel/PTFE composite sliding contact surfaces reduce friction further and enhance the durability of this rod end bearing. Its dynamic load rating of 21kN and static load rating of 35.1kN enable it to withstand significant operational stresses in various mechanical systems.

The rod end has an outside diameter of 36mm and an overall width of 83mm, making it compatible for medium-sized metric bearing assemblies. The left hand thread direction and female M16 thread connection standard enable specific assembly options in hydraulic, pneumatic, and mechanical machinery.

This product is manufactured in China under stringent quality controls and adheres to metric thread standards but has no additional certifications or approvals specified. Constructed from carbon steel with clear zinc plating for corrosion resistance.

Ball is made from AISI 52100 bearing steel, heat treated to HRC58-64 for enhanced hardness and durability. Precision ground and polished ball ensures smooth operation. Race comprises PTFE composite material for low friction sliding surfaces.

Suitable for industrial mechanical applications requiring reliable rotary bearing motion. Outside diameter measures 36mm with an overall width of 83mm. Designed as a female connection with M16 thread size and metric thread standard.

Rated for dynamic load of 21kN and static load of 35.1kN. Thread direction is left hand for specialized assembly requirements. Manufactured in China with rigorous quality standards.

This LDK rod end bearing is ideal for use in industrial machinery, hydraulic and pneumatic systems, manufacturing equipment, and maintenance applications requiring precise and durable rotary bearing components. It is an essential part for mechanical engineers and maintenance specialists seeking reliable performance in demanding operational environments.
