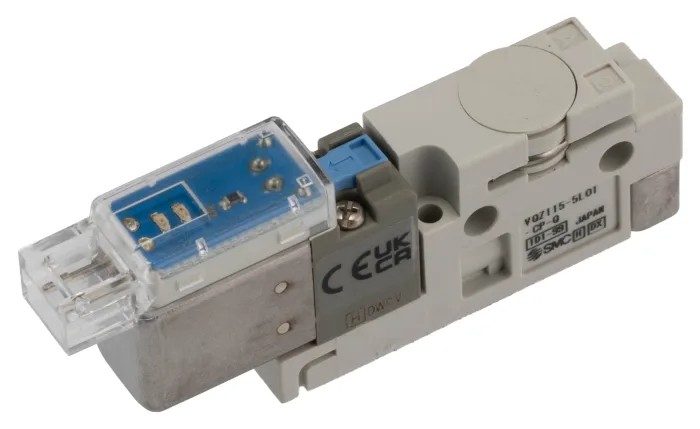

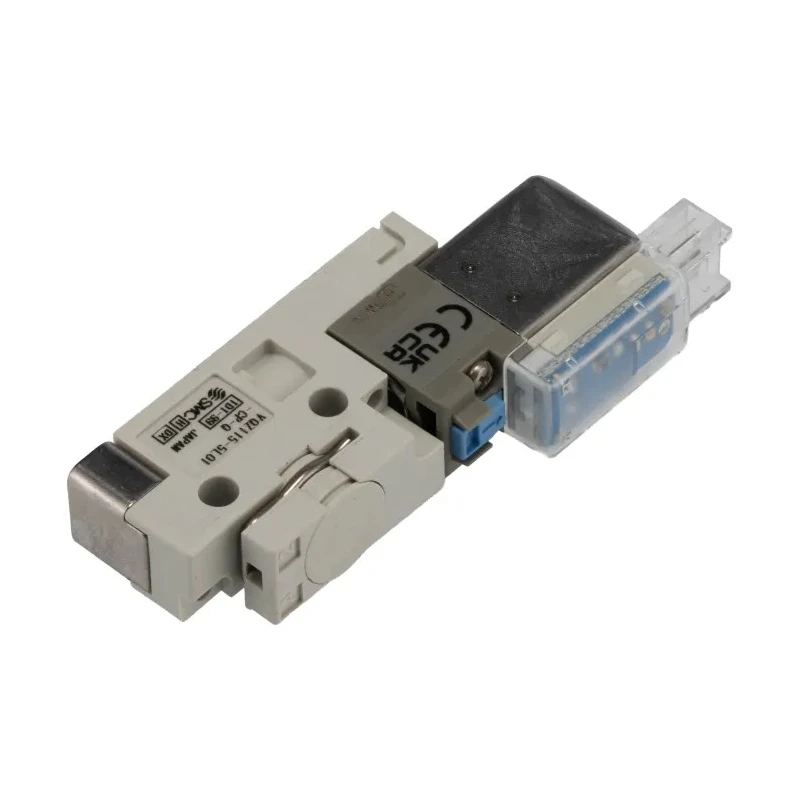

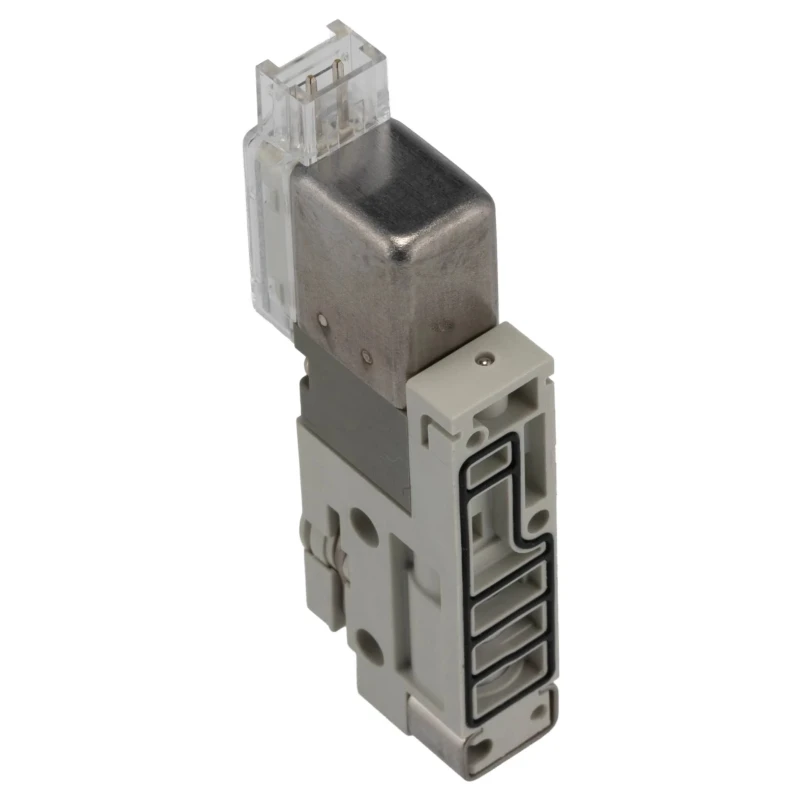

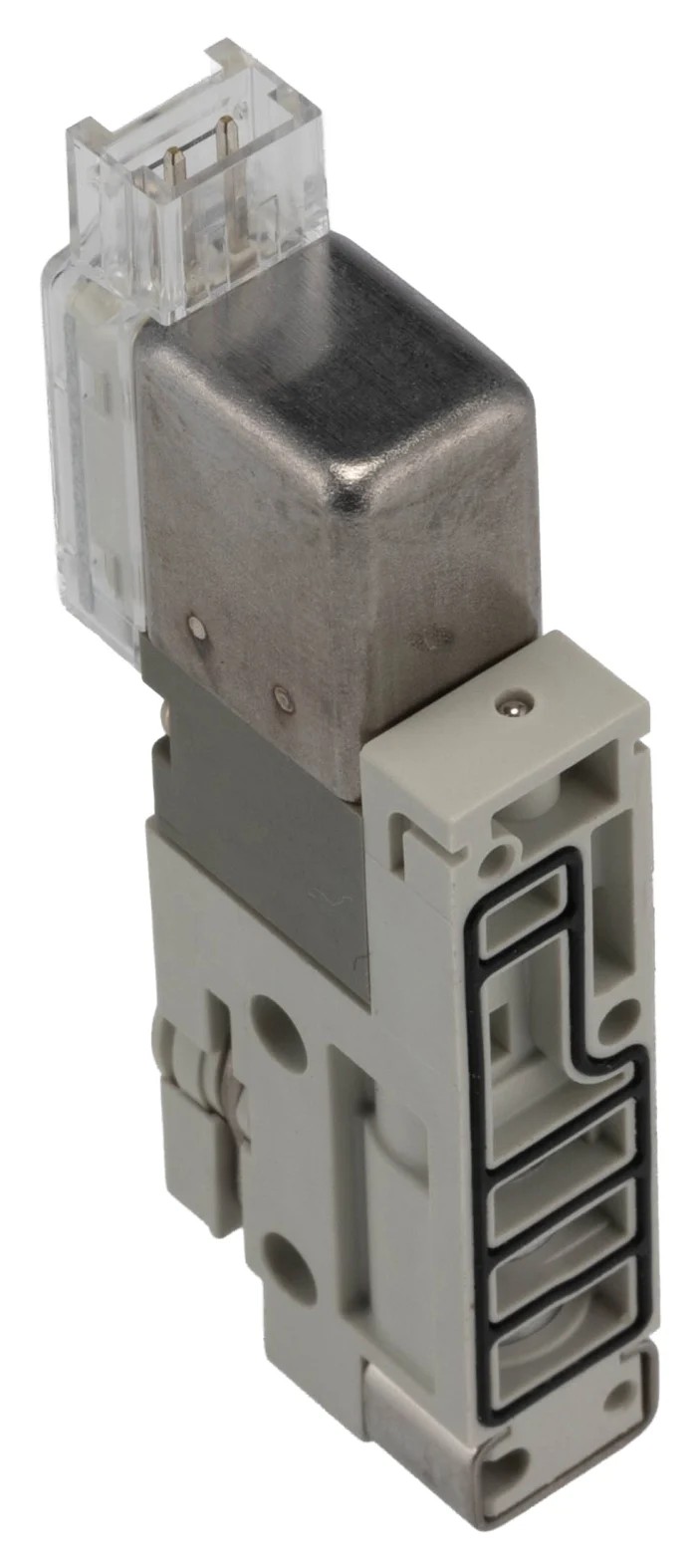

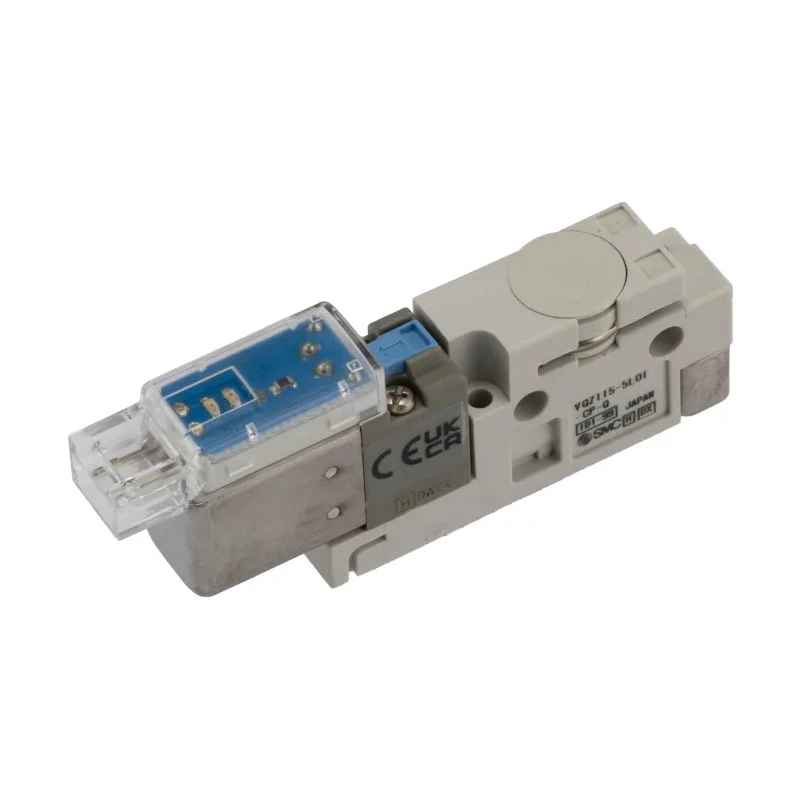

SMC 3 Port Normally Closed Solenoid Valve, Die Cast Aluminium Body, 24V DC, 10mm Orifice VQZ115-5LO1-CP-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC 3 Port Normally Closed Solenoid Valve, Die Cast Aluminium Body, 24V DC, 10mm Orifice VQZ115-5LO1-CP-Q



Category Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	7 bar
Model	VQZ115-5LO1-CP-Q
Series	VQZ100
Number Of Ports	3
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Operating pressure range	0.1 - 0.7MPa
Orifice Diameter	10mm
Fluid	air, inert gas
Supply Voltage	24V dc
Inlet Port Size	1/8 in
Default Valve Position	NC
Maximum Opening Time	10ms
Ambient and fluid temperature	-10 to 50 C

Key Features

Operates at 24V DC supply voltage for efficient control.
Die cast aluminium body ensures durability and corrosion resistance.
Features a 10mm orifice diameter for optimal fluid flow.
Suitable for operating pressures up to 7 bar.
Ambient and fluid temperature range from -10°C to 50°C.
Features a normally closed valve position for controlled operation.
Offers quick response with maximum opening and closing times of 10ms.
Designed for industrial pneumatic control applications.

Product Description

SMC VQZ115-5LO1-CP-Q is a 3 Port Normally Closed Solenoid Valve designed with a robust die cast aluminium body suitable for industrial fluid power applications. Operating at 24V DC, it efficiently controls air and inert gas flow through a 10mm orifice, making it ideal for pneumatic systems that require precise actuation and reliable valve function.

This valve supports operating pressures up to 7 bar and maintains functionality within an ambient and fluid temperature range from -10°C to 50°C, ensuring performance stability in varied industrial environments including manufacturing, HVAC, and automation sectors.

The normally closed configuration offers fail-safe operation where the valve remains closed without power. The valve's fast response with maximum opening and closing times of 10 milliseconds enables high-speed control processes.

Its compact design with a 1/8 inch inlet port size facilitates easy integration in pneumatic piping systems. As part of the SMC VQZ100 series, the valve supports various mounting options such as base mount and body ported styles, extending its application versatility.

Manufactured to high Japanese quality standards, this solenoid valve is suitable for demanding industrial and laboratory use cases requiring consistent pneumatic control. Operates at 24V DC supply voltage for efficient control.

Die cast aluminium body ensures durability and corrosion resistance. Features a 10mm orifice diameter for optimal fluid flow. Suitable for operating pressures up to 7 bar. Ambient and fluid temperature range from -10°C to 50°C.

Features a normally closed valve position for controlled operation. Offers quick response with maximum opening and closing times of 10ms. Designed for industrial pneumatic control applications. Compact inlet port size of 1/8 inch for easy installation.

Manufactured in Japan with high quality and reliability. Part of the VQZ100 series with flexible mounting options. Explore the full range of industrial Solenoid Valves and pneumatic components at EnvMart for your fluid power and automation needs.
