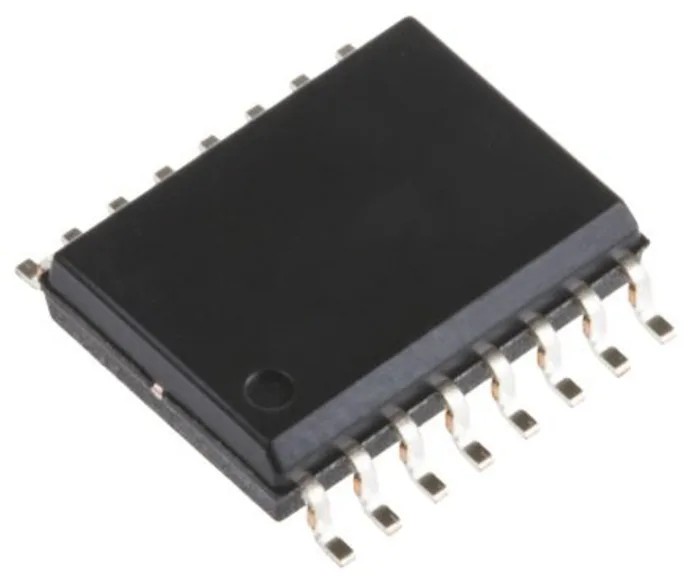

onsemi CMOS Dual Multiplexer Demultiplexer IC, 16-Pin SOIC Package MC74HC4052ADG
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 10mm |
| Model | MC74HC4052ADG |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS, LSTTL |
| Configuration | Dual |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2V |
| Multiplexer/Demultiplexer | Demultiplexer, Multiplexer |
| Maximum On State Resistance | 280Ω |
Key Features
- This IC supports 2 elements per chip with CMOS logic family technology.
- It operates at a minimum supply voltage of 2V and a maximum of 12V.
- The device features low crosstalk and diode protection on all inputs and outputs.
- The package is a 16-pin SOIC surface mount type ideal for compact circuit designs.
- Operating temperature ranges from -55°C to 125°C ensuring reliability in harsh environments.
- This model ensures improved linearity and lower ON resistance compared to metal-gate counterparts.
- Complies with RoHS standards and meets the automotive AEC-Q100 qualification.
- Physical dimensions include a length of 10 mm, width of 4 mm, and height of 1.75 mm.
Product Description
onsemi MC74HC4052ADG is a high-performance CMOS dual multiplexer and demultiplexer IC designed for efficient signal routing in electronic circuits. It incorporates fast switching speeds and low propagation delay to enhance signal integrity. The device features low crosstalk between switches and diode protection on all input/output lines to improve noise immunity and device reliability.
Engineered using CMOS logic family technology, this IC operates within a supply voltage range of 2V to 12V, making it suitable for various power supply configurations. The 16-pin SOIC surface mount package supports compact PCB layouts and automated assembly processes.
With operating temperature capability from -55°C up to 125°C, the MC74HC4052ADG offers robust performance in automotive and industrial environments. It holds RoHS compliance and meets the stringent automotive AEC-Q100 standard, ensuring quality and environmental safety.
The chip's complexity includes 168 FETs or 42 equivalent gates, providing versatile switching and multiplexing capability for complex signal management in communication, power management, and control systems.
This IC supports 2 elements per chip with CMOS logic family technology. Fast switching and low propagation delay support high-speed applications. Low crosstalk and diode protection enhance signal integrity and durability.
Surface mount SOIC package ensures compact, reliable board integration. Wide operating temperature range suits automotive and industrial uses. RoHS compliant and meets AEC-Q100 automotive standards. Physical dimensions optimized for modern electronics manufacturing.
High chip complexity supports advanced multiplexing functions. Applicable for power, signal routing, and logic control in electronic designs.
Choose onsemi MC74HC4052ADG for reliable, high-quality multiplexing and demultiplexing solutions in your electronic and industrial applications. Explore our full range of semiconductor products and enhance your project performance with trusted components.
Explore more products in our Multiplexer/Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2V to 12V.
The maximum operating temperature for the MC74HC4052ADG is 125°C.
It supports 2 elements per chip, allowing for versatile signal routing.
The device is packaged in a 16-pin SOIC surface mount type, suitable for compact circuit designs.
The height of this model is 1.75 mm.
Yes, it complies with RoHS standards and meets the automotive AEC-Q100 qualification.
The maximum on-state resistance for the MC74HC4052ADG is 280Ω.
This model belongs to the CMOS logic family.
The dimensions are 10 mm in length, 4 mm in width, and 1.75 mm in height.
It supports CMOS and LSTTL output types.
Key features include low crosstalk, diode protection on all inputs and outputs, and fast switching speeds.
This IC can be utilized in power management, signal routing, and logic control applications.
