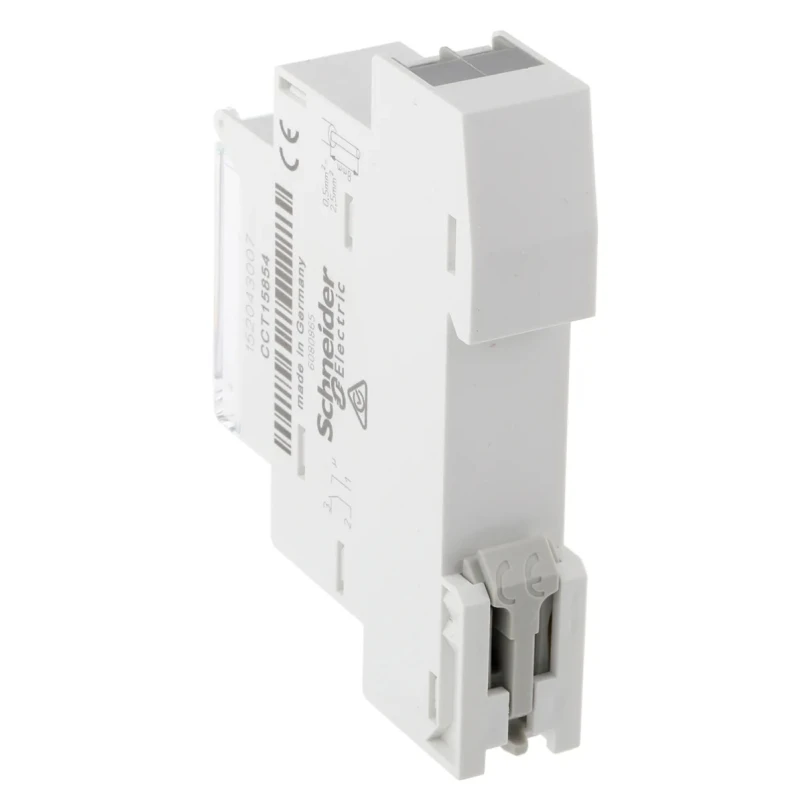

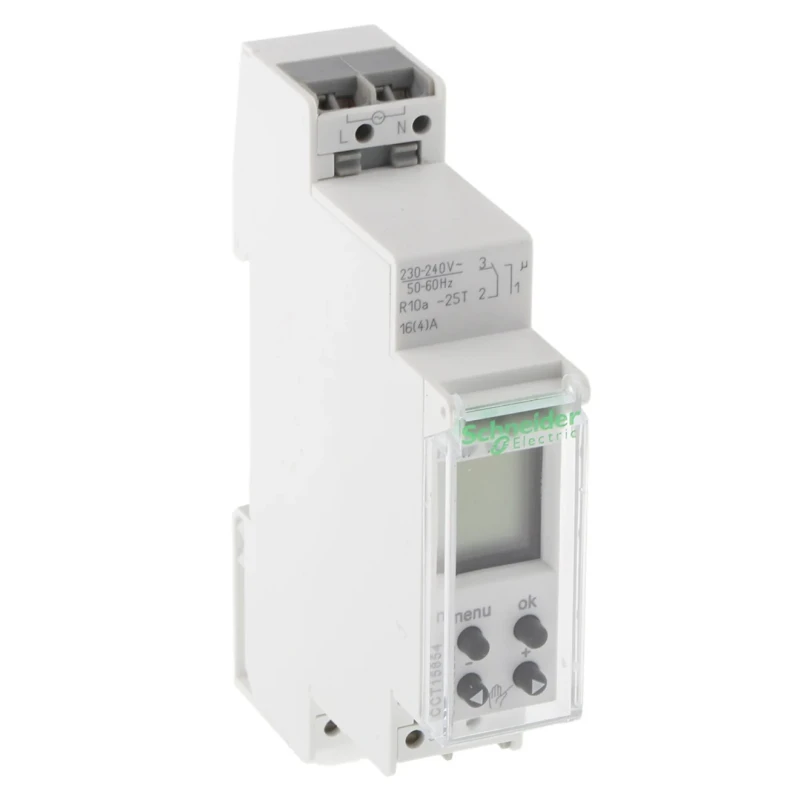

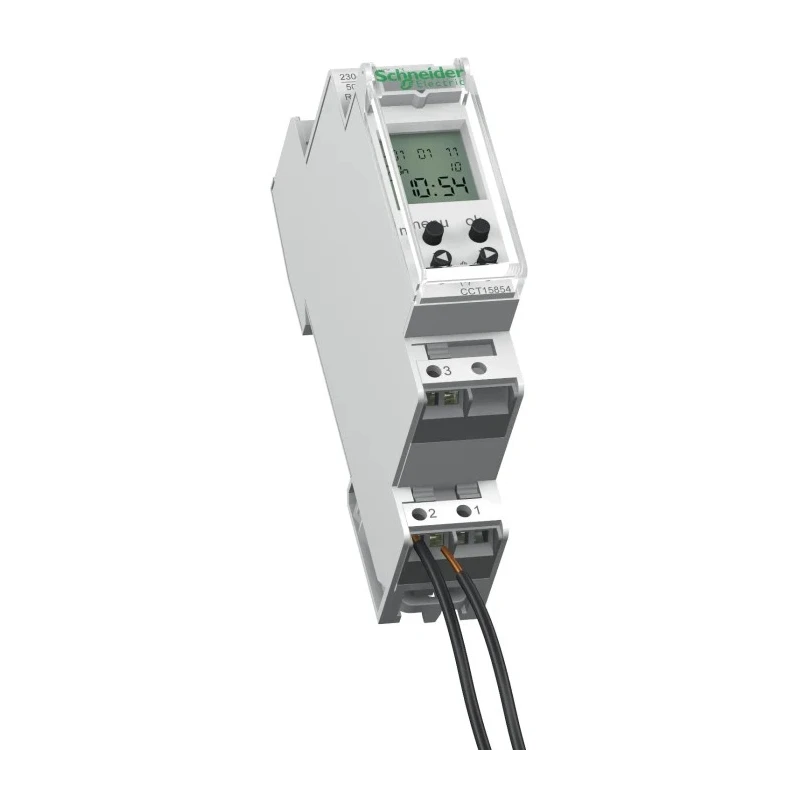

Schneider Electric Digital DIN Rail Time Switch 230V ac 1 Channel SPDT CCT15
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schneider Electric |
| Battery Life | 10year |
| Height | 90mm |
| Model | CCT15 |
| Depth | 66mm |
| Series | CCT15 |
| Contact Configuration | SPDT |
| Sub Type | Digital |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Standards/Approvals | UL 94 HB, EN, CSA, RoHS, ANSI/ESD, UL 94 V-2, CE, REACH, UL 508 4, DIN, UL 508 12, UL 94 V-0 |
| Maximum Supply Voltage | 230V ac |
| Units Measured | Days, Hours |
| 1 Channel Digital DIN Rail Time Switch Measures Minutes, 230 V acBrand | Merlin Gerin |
| 1 Channel Digital DIN Rail Time Switch Measures Days, Hours, 230 VBrand | Schneider Electric |
Key Features
- Equipped with a high-contrast LCD for clear parameter display.
- Battery life rated at 10 years to ensure extended operation.
- Compact design with 90mm height and 66mm depth for DIN rail mounting.
- Thermoplastic housing provides durability and impact resistance.
- IP20 rated for protection against dust and foreign objects greater than 12mm.
- Low power consumption of 0.4W for enhanced energy efficiency.
- Wide operating temperature range from -25°C to +50°C for demanding conditions.
- Uses screw terminals for secure electrical connections.
Product Description
Schneider Electric CCT15 is a digital DIN rail time switch designed for industrial and commercial automation applications. It features a 230V AC supply voltage and a single SPDT (Single Pole Double Throw) contact configuration, facilitating reliable control of electrical equipment over timed intervals.
The device has an integrated liquid crystal display (LCD) that allows easy visualization and programming of operation schedules in multiple languages. Housing is made from thermoplastic material, ensuring durability and resistance to mechanical impact, complemented by an IP20 ingress protection rating, which safeguards against dust and objects larger than 12mm.
Its compact dimensions, with a height of 90mm and depth of 66mm, enable convenient mounting on standard DIN rails found in electrical cabinets. With a minimal power consumption of just 0.4W, it offers energy-efficient operation. The switch incorporates screw terminals for secure and dependable wiring connections.
The internal lithium battery has an impressive lifespan of 10 years, reducing maintenance needs. The unit operates effectively in harsh environments within a temperature range of -25°C to +50°C, making it suitable for a wide variety of settings.
High-contrast LCD for straightforward programming and status display. 10-year lithium battery life ensuring long-term reliability. Compact 90mm height and 66mm depth fitting DIN rail standards. Thermoplastic impact-resistant housing with IP20 protection.
Low power consumption of 0.4 watts optimizes energy use. Wide operating temperature range supports various industrial environments. Screw terminal connections for stable electrical contacts. Single channel digital timing with SPDT contact configuration.
Compliant with robust international standards including UL, CE, CSA, RoHS, and REACH certifications. Ideal for controlling industrial lighting systems, water pumps, and irrigation setups.
This Schneider Electric digital time switch is primarily used in industrial automation systems to schedule and automate electrical device operation. Its reliability and efficiency make it suitable for process control in commercial installations, water management, agricultural irrigation, and industrial lighting control applications.
Explore the extensive range of Time Switches and control gear available at EnvMart for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CCT15 digital DIN rail time switch operates at a supply voltage of 230V AC.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile control of electrical devices.
This model has a height of 90mm and a depth of 66mm, making it suitable for standard DIN rail mounting.
The time switch utilizes screw terminals for secure and reliable electrical connections.
It operates effectively within a wide temperature range of -25°C to +50°C, suitable for various industrial environments.
The internal lithium battery is rated for a lifespan of 10 years, reducing maintenance needs.
It complies with several international standards including UL, CE, CSA, RoHS, and REACH certifications.
This model has a low power consumption of just 0.4W, enhancing its energy efficiency.
It is designed for industrial automation applications, including controlling lighting systems, water pumps, and irrigation setups.
The high-contrast LCD allows for easy visualization and programming of operation schedules in multiple languages.
The time switch is manufactured in Germany, ensuring compliance with European standards.
The CCT15 is a single-channel digital DIN rail time switch, allowing for timed control of one electrical device.
