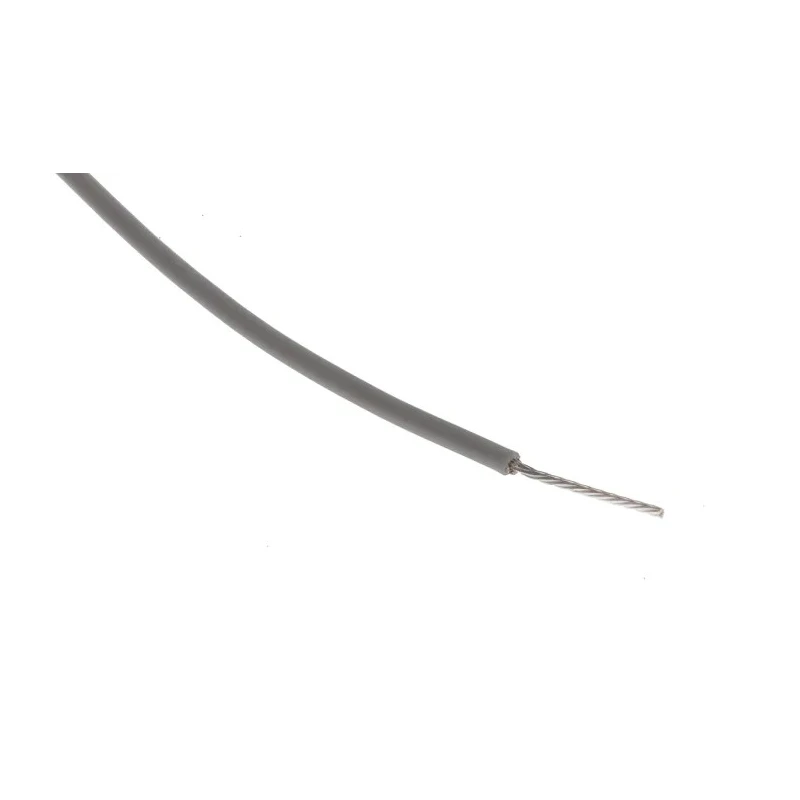

RS PRO Grey 0.22 mm² 24 AWG Hook Up Wire, 7/0.2 mm Core Strands, 100m Length, PTFE Jacket 841-7380

RS PRO 841-7380 is a high-quality Grey Hook Up Wire with a cross-sectional area of 0.22 mm² and a conductor configuration of 7 strands of 0.2 mm silver plated copper wire strands. This 24 AWG cable is insulated with polytetrafluoroethylene (PTFE), known for its superb dielectric properties and durability in harsh environments. The cable length is 100 meters with an outside diameter of 1.2 mm, designed to operate reliably at voltages up to 600 V and across a wide temperature range from -75°C to 200°C.

This wire is part of the RS PRO series aimed at demanding applications where resistance to contaminants such as oils, acids, and UV exposure is critical. It is particularly suited for industrial, laboratory, automotive, and aerospace environments where long-lasting and reliable wire performance is essential. The grey PTFE jacket enhances identification and adds extra protection against mechanical and chemical stressors.

The cable complies with BS 3G 210:1996 standards, ensuring adherence to quality and safety protocols. Its flexibility, combined with high temperature and chemical resistance, make it ideal for harsh environmental installation including use in construction, aeroplanes, car engines, and petrol stations.

The use of silver plated copper conductors ensures excellent conductivity, reducing signal loss and boosting performance in sensitive electronic equipment wiring. Constructed with silver plated copper conductors for superior conductivity.

PTFE insulation provides outstanding dielectric strength and thermal endurance. Suitable for harsh environments including labs, automotive, aerospace, and construction sectors. Meets BS 3G 210:1996 standard for electrical equipment wire.

Flexible cable diameter of 1.2 mm allows ease of installation and routing. Temperature operation range from -75°C to 200°C supports diverse applications. Rated for 600 V maximum operating voltage ensuring safety and performance.

This RS PRO Grey 0.22 mm² Hook Up Wire is an excellent choice for engineers and technicians requiring dependable wiring solutions for equipment wiring, control panels, and electronic assemblies exposed to demanding conditions. Explore more high-performance wires and cables in the Electronics & Electricals category at EnvMart for your industrial and laboratory wiring needs.
