RS PRO 3 Core Power Cable 2.5mm² 90 °C 100 m Cross Linked 750 V 836-0704

RS PRO 836-0704 is a high-performance 3 Core Power Cable with a cross-sectional area of 2.5mm², designed for electrical power transmission at 750 V. The cable features a durable cross-linked compound sheath (type EM 8 to EN 50363-6) that offers robust protection and exceptional fire safety, rated to operate at temperatures from -5 °C up to 90 °C.

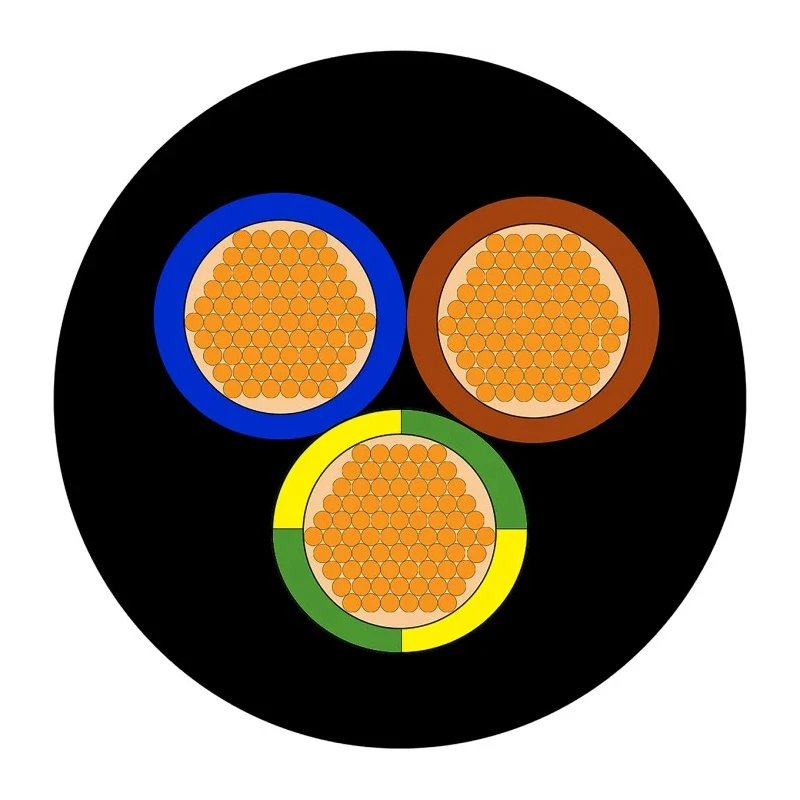

Constructed with stranded copper conductors, each made of 45 strands sized at 0.25 mm, this cable offers excellent flexibility and reliable conductivity. The outer diameter of the cable is 14 mm, and the total length provided is 100 meters per reel, making it suitable for medium mechanical stress installations.

This cable employs Low Smoke Zero Halogen (LSZH) technology which significantly reduces toxic smoke and corrosive gases in case of fire, thereby protecting people and sensitive equipment. It adheres strictly to multiple standards including CENELEC HD22-13, CEI 20-19 Part 13, BS EN/IEC 60332-3, BS EN 60228, EN 50363, and TS EN 50525-3-21. Additionally, it conforms to Euroclass Eca fire safety classification.

Ideal for a variety of industrial and commercial applications such as audio-visual systems, mobile power units, and uninterruptible power supplies (UPS), this Power Cable ensures reliable performance under demanding conditions both indoors and outdoors.

The cable contains three cores with a stranded copper conductor, ensuring excellent flexibility and conductivity. The cross-linked polymer sheath provides enhanced heat resistance and mechanical durability. Operating voltage is rated at 750 V with a temperature range of -5 °C to 90 °C.

Low Smoke Zero Halogen (LSZH) sheath reduces harmful emissions in fire scenarios. Complies with international fire safety and electrical standards for safe use. Contains 45 strands of 0.25 mm conductor size per core for optimal electrical performance.

100 meters length per reel with an outer diameter of 14 mm. Manufactured in Turkey, tested for safety and reliability as part of the RS PRO range.

Choose this cable for assured quality and robust electrical power transmission in industrial, manufacturing, commercial, HVAC, and laboratory settings. Explore more high-quality cables and electrical components in the RS PRO range on EnvMart.
