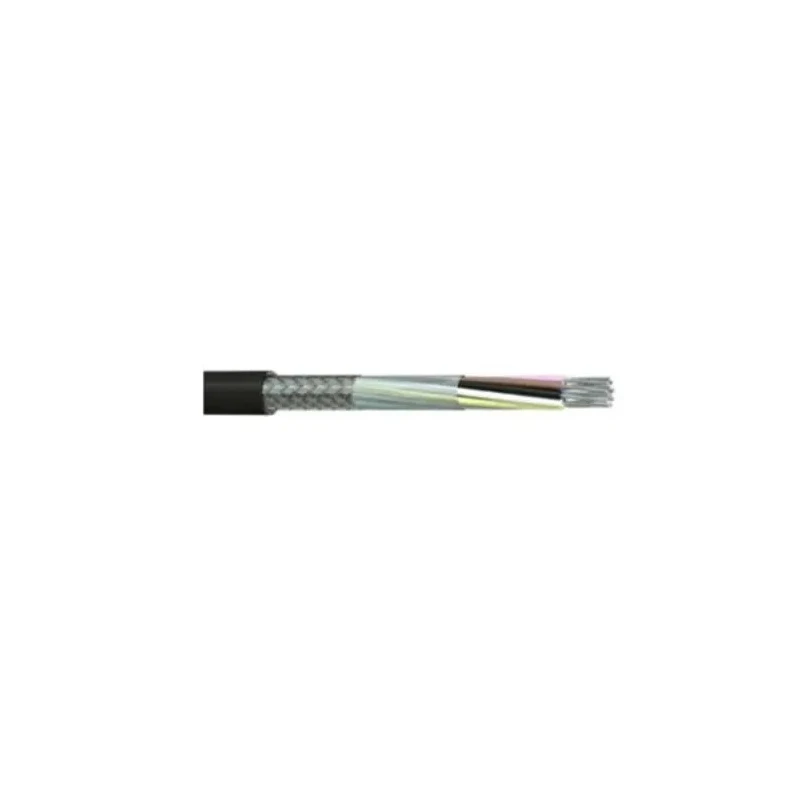

RS PRO Multi-Core Industrial Cable DEF STAN Series, 12 Cores, 0.22 mm², Screened, 100 m, Black Polyvinyl Chloride 236-9247
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | RS PRO |
| Operating Temperature | -15 °C to +85 °C |
| Model | 236-9247 |
| Cable Length | 100m |
| Series | DEF STAN |
| Outside diameter | 11mm |
| Maximum Operating Temperature | 120°C |
| Number Of Cores | 12 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Conductor | 7/0.2 mm tinned copper (nominal construction) |
| Standards/Approvals | RoHS |
| Jacket Colour | Black |
| Screened/Unscreened | Screened |
| Conductor Type | Solid |
| Cable CSA | 0.22mm² |
| Conductor Resistance | 92 Ω/km |
| Braid Shield | Tinned copper, 0.1mm, 91% coverage |
| 4 cores - RS stock no | 236-9263 |
| 6 cores - RS stock no | 236-9269 |
| 8 cores - RS stock no | 236-9274 |
| 12 cores - RS stock no | 236-9248 |
| 20 cores - RS stock no | 236-9253 |
| 36 cores - RS stock no | 236-9258 |
| RS PRO Control Cable, 12 Cores, 0.22 mm², Screened, 100m, Black PVC SheathBrand | RS PRO |
Key Features
- The cable length is 100 meters suitable for extensive industrial installations.
- Features a black polyvinyl chloride (PVC) sheath providing durability and protection.
- Constructed with tin copper wire conductors for reliable conductivity and corrosion resistance.
- Designed in compliance with Defence Standard 61-12 Part 4 ensuring robust industrial quality.
- Operates safely up to 30V with a temperature range spanning from -40°C to 120°C.
- Offers a solid conductor type with a nominal construction of 7/0.2 mm tinned copper strands.
- The cable has an outside diameter of 11 mm optimized for compact installations.
- Screened with a braided tinned copper shield of 0.1 mm thickness and 91% coverage for EMI mitigation.
Product Description
RS PRO 236-9247 Multi-Core Industrial Cable DEF STAN Series is a premium screened, 12-core industrial cable featuring 0.22 mm² solid conductor tin copper wires twisted with overall polyester tape and protected by a black polyvinyl chloride (PVC) sheath. The cable length is 100 meters with an 11 mm outside diameter designed for durable and flexible use. It operates at 30V and is suitable for deployment in a wide temperature range from -40°C minimum to 120°C maximum, supporting demanding industrial applications.
This cable conforms to Defence Standard 61-12 Part 4 and the RoHS directive ensuring compliance with stringent military and environmental standards. The tin copper conductor strands (7/0.2 mm construction) offer excellent conductivity and corrosion resistance while the screened braid shield (tinned copper, 0.1mm thickness with 91% coverage) reduces electromagnetic interference, protecting sensitive control and audio signals from disruption.
Typical applications include machine control equipment, conveyors, audio equipment, data networking, military and marine industry applications, and general harsh industrial environments requiring reliable multi-core cable solutions. Its solid conductor type and screened PVC jacket deliver robust performance in confined spaces or installations requiring multiple cable connections organized efficiently.
The cable is engineered for electrical power and industrial control scenarios with a maximum operating temperature of 120°C and a rated voltage of 30V. The minimum and maximum operating temperatures allow reliable use in extreme environmental conditions. The screened industrial cable is not armoured but is well suited where size and EMI protection are priorities.
RS PRO's DEF STAN Multi-Core Industrial Cable 236-9247 ensures high-quality standards for complex industrial automation, control systems, and other specialized applications requiring multi-core screened cables. Environmentally compliant and designed for durability, this cable supports effective installation across numerous sectors including military, marine, manufacturing, and entertainment industries.
The cable features 12 screened cores each with 0.22 mm² cross-section. Conductor is made of 7/0.2 mm tinned copper wire for robustness. PVC jacket in black color offers mechanical protection. Complies with Defence Standard 61-12 Part 4 and RoHS certification.
Operating voltage rated at 30V with temperature range from -40°C to 120°C. Braided shield provides 91% coverage against electromagnetic interference. Outside diameter is 11 mm for flexible installation use cases. Cable length totals 100 meters for extensive application reach.
Explore RS PRO brand for high-quality industrial cables at EnvMart and secure reliable wiring solutions for diverse industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 100 meters, making it suitable for extensive industrial installations.
It operates safely at a voltage of 30V.
The cable can operate within a temperature range of -40°C to 120°C.
This multi-core industrial cable features 12 cores.
The conductor is made of tin copper wire, specifically constructed with 7/0.2 mm tinned copper strands.
The outside diameter of this cable is 11 mm, optimized for compact installations.
This model is screened, featuring a braided shield of tinned copper with 91% coverage to mitigate electromagnetic interference.
It complies with Defence Standard 61-12 Part 4 and the RoHS directive, ensuring adherence to military and environmental standards.
The cable is constructed with solid conductors and has a cross-sectional area of 0.22 mm².
Typical applications include machine control equipment, conveyors, audio equipment, and data networking in harsh industrial environments.
The conductor resistance is specified at 92 Ω/km.
The country of origin for this cable is China.
