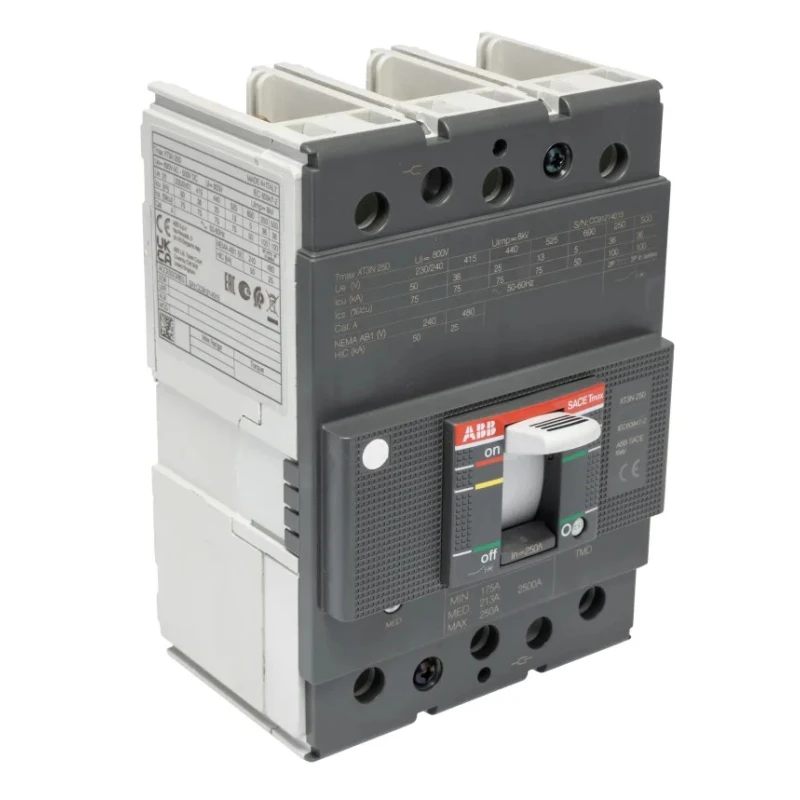

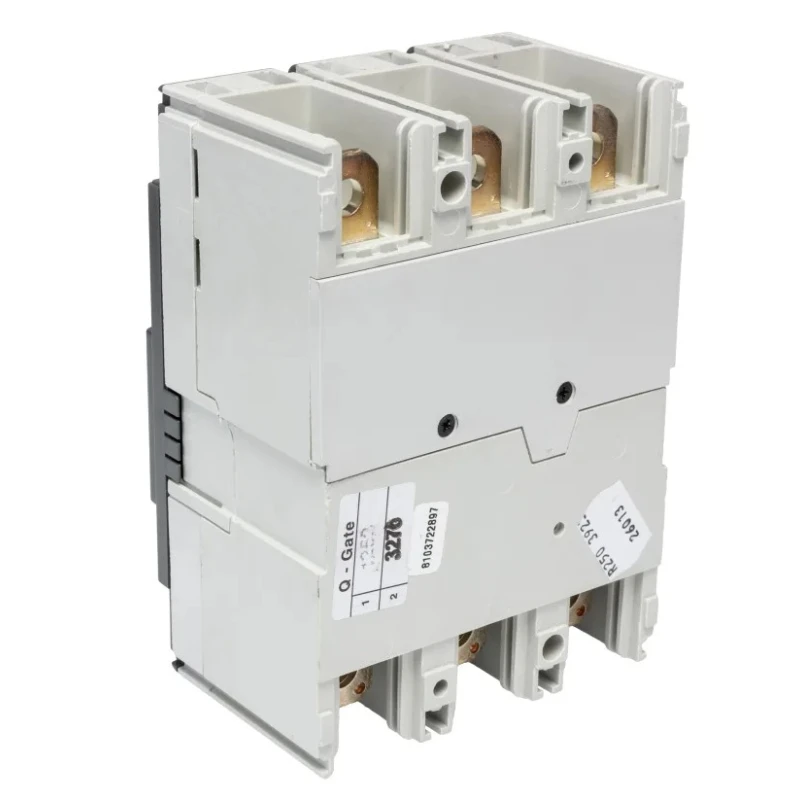

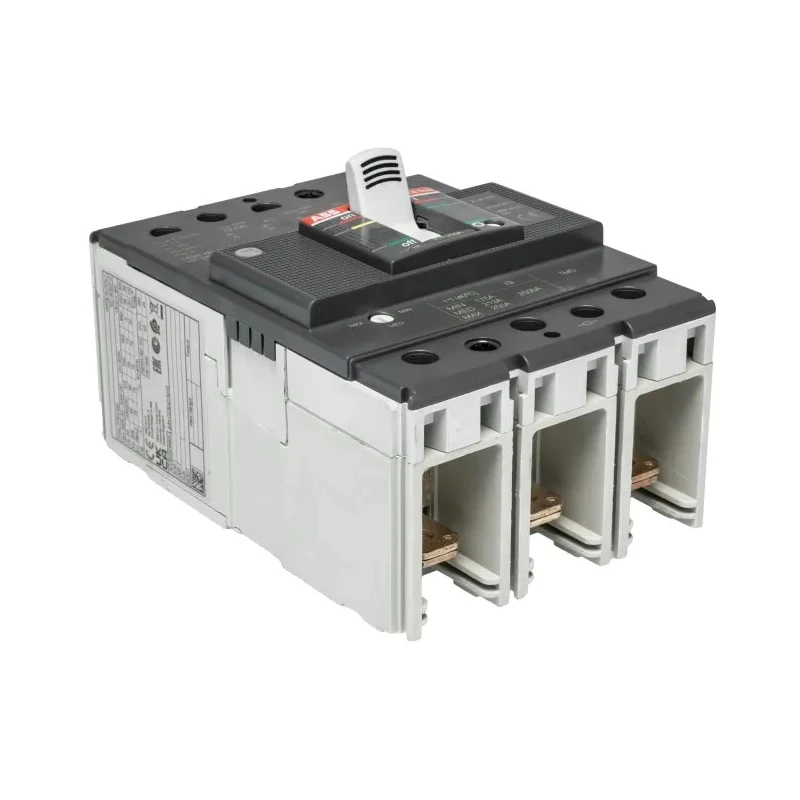

ABB Protecta XT3N Molded Case Circuit Breaker 3-Pole 250A Breaking Capacity 36kA DIN Rail XT3N

ABB XT3N Molded Case Circuit Breaker is a high-performance 3-pole electrical protection device designed for industrial and commercial electrical systems. It is rated for 250 amps and provides a breaking capacity of 36 kiloamperes. Its construction with a molded case ensures effective insulation and enhanced safety for complex and heavy-duty networks.

This MCCB supports both AC voltage up to 690V and DC up to 500V, making it adaptable to various electrical setups. The DIN Rail mount type allows for secure and standardized installation in electrical panels, optimizing space and facilitating system maintenance.

Tripping mechanisms include electronic, thermomagnetic, and magnetic releases providing precise and reliable circuit protection against overload and short circuits. The breaker can withstand impulse voltages up to 8kV, crucial for environments subject to electrical surges and power spikes.

Red and green contact position indicators on the front enable easy monitoring and diagnosis of the circuit state without dismantling the unit. The tripping actuator features an operating lever for simple manual resets after an electrical event.

The XT3N series ensures durability with up to 25,000 mechanical operating cycles, suitable for demanding industrial applications such as process plants, packaging lines, construction sites, and power transmission systems.

With a compact size of 150mm width, 130mm height, and 70mm depth, and weighing only 1.64 kg, this ABB circuit breaker offers a balanced solution combining safety, performance, and ease of installation.

Features red and green contact position indicators for easy status monitoring. Rated for 250A current, suitable for large-scale electrical applications. Compatible with AC and DC networks providing operational versatility.

Supports up to 25,000 mechanical operating cycles for long-term use. Compact DIN Rail mounting enhances integration in electrical panels. Molded case construction delivers effective insulation and safety. Lightweight design minimizes installation strain at 1.64 kg.

This MCCB is ideal for industrial, construction, and power transmission environments requiring robust and reliable circuit protection solutions. Discover more about ABB's protection devices and electrical products at EnvMart.
