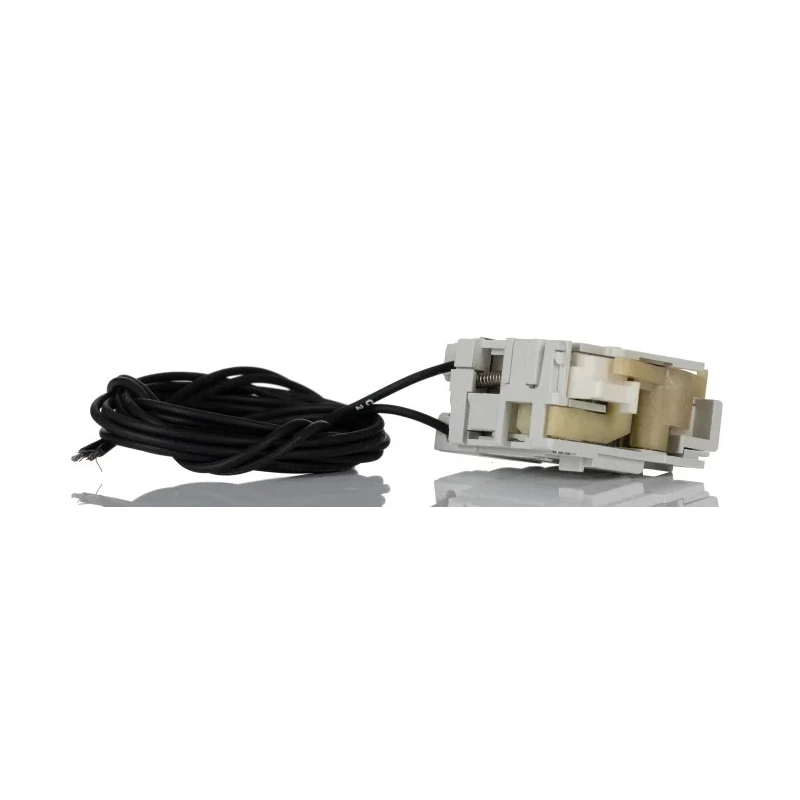

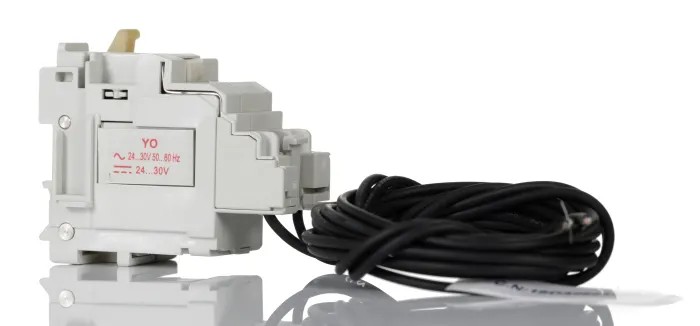

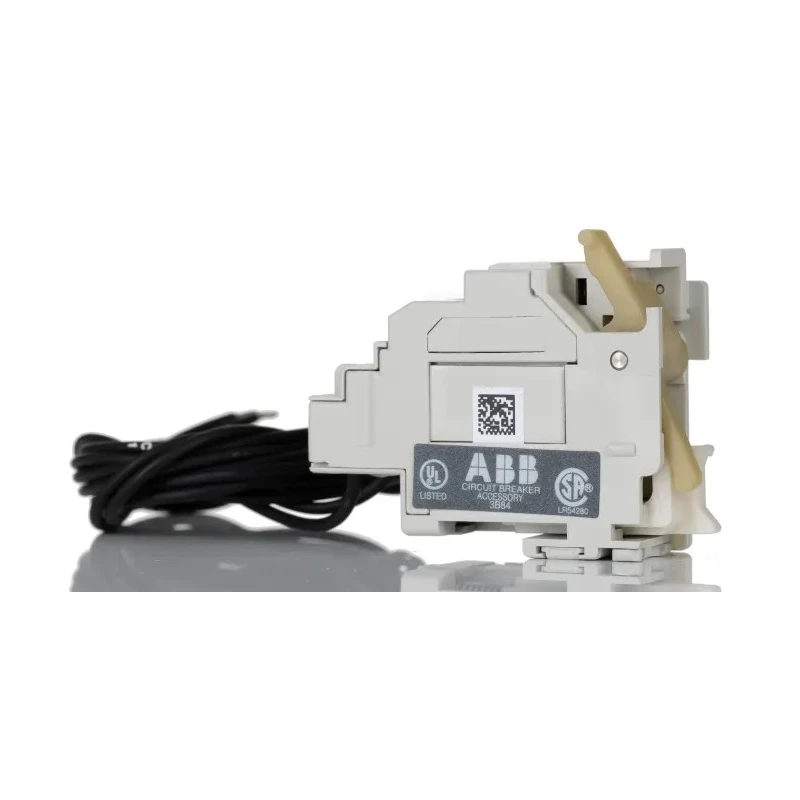

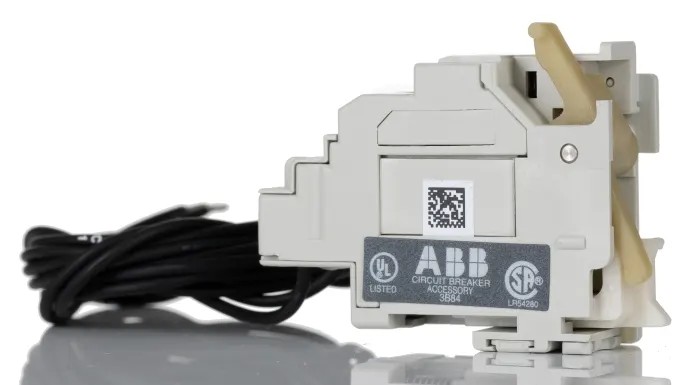

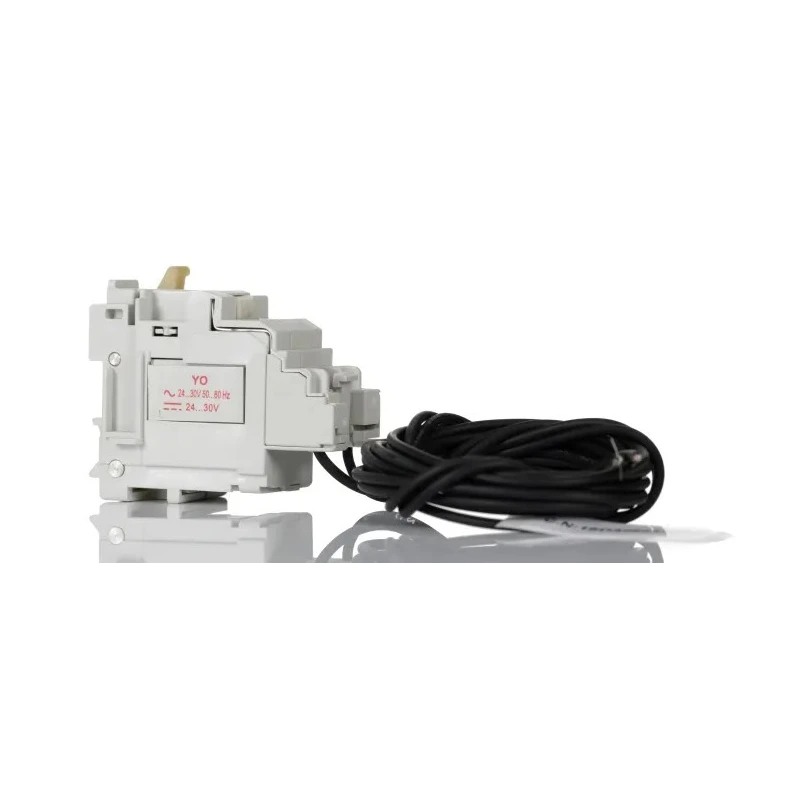

ABB 30V AC/DC Shunt Trip for use with Tmax XT1, XT2, XT3, XT4 Circuit Breakers 1SDA066322R1 SOR-C XT1..XT4 F/P 24-30 Vac/dc

Free Delivery in India | Lowest Global Shipping Charges

ABB 30V AC/DC Shunt Trip for use with Tmax XT1, XT2, XT3, XT4 Circuit Breakers 1SDA066322R1 SOR-C XT1..XT4 F/P 24-30 Vac/dc



Category Circuit Trips Brand ABB Condition New

Specifications

Country of Origin	India
Range	SACE Tmax XT
Brand	ABB
Model	1SDA066322R1 SOR-C XT1..XT4 F/P 24-30 Vac/dc
Series	SOR-C XT1-XT4
Sub Type	Shunt Trip
For Use With	Tmax XT4, Tmax XT3, Tmax XT2, Tmax XT1
Control Voltage	30V ac/dc

Key Features

Compatible with Tmax XT1, XT2, XT3, and XT4 circuit breakers for versatile application.
Operates on 24-30 Volt AC/DC control voltage offering flexible power supply options.
Compact dimensions of 60 mm height, 110 mm width, and 140 mm depth facilitate panel installation where space is limited.
Lightweight design at 114 grams reduces load on mounting rail.

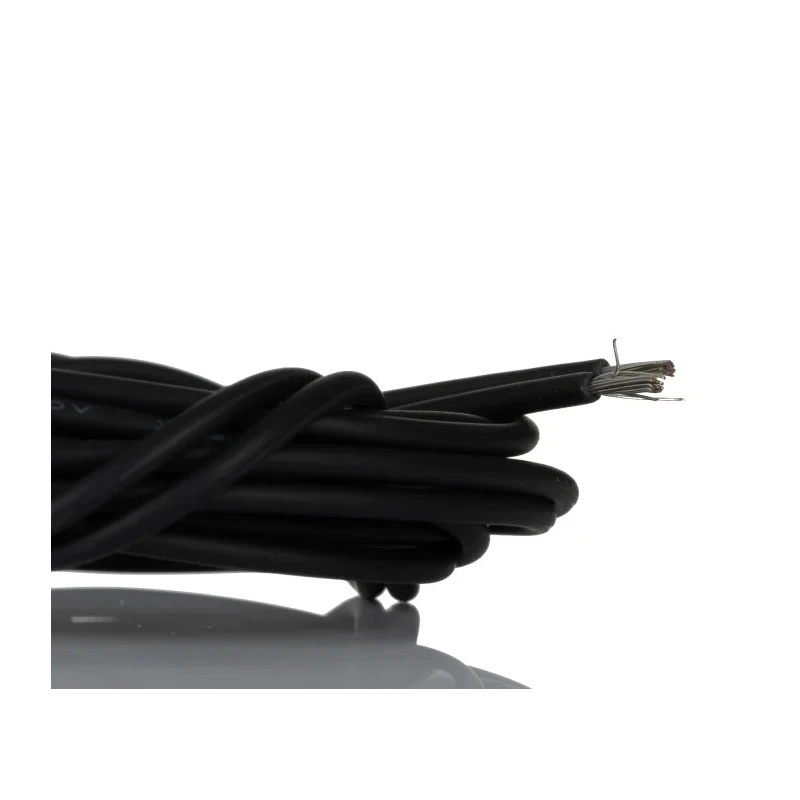

Pre-wired for simplified and hassle-free electrical connection during installation.
Suitable for industrial environments including marine engineering, lifts and escalators, and mining operations.

Product Description

ABB 1SDA066322R1 SOR-C XT1..XT4 F/P 24-30 Vac/dc Shunt Trip is designed to improve the functionality and safety of electrical protective systems. It enables circuit breakers to be remotely tripped when a fault current is detected, thereby cutting off the power supply to protect electrical circuits effectively.

This shunt trip is compatible with the SACE Tmax XT series, specifically the XT1, XT2, XT3, and XT4 circuit breakers, making it a flexible and reliable solution for various industrial applications.

The device operates efficiently at a control voltage of 24 to 30 Volts AC/DC, supporting both AC and DC power supplies. Measuring only 60 mm in height, 110 mm in width, and 140 mm in depth, its compact size allows easy installation in panels with limited space.

Weighing just 114 grams, it exerts minimal strain on mounting rails, facilitating straightforward mounting and maintenance. The shunt trip comes pre-wired, ensuring an easier and faster electrical connection process during installation.

This product is ideal for demanding industrial applications such as marine engineering, lift and escalator safety systems, and mining and quarrying environments, where reliable circuit interruption is critical for operational safety.

Compatible with Tmax XT1 to XT4 circuit breakers. Operates on 24-30 V AC/DC control voltage for flexibility. Compact dimensions allow installation in space-restricted panels. Lightweight design reduces strain on mounting structures.

Pre-wired for ease of installation and electrical connection. Designed for use in marine, lift, escalator, and mining industries.

Enhance your electrical protection setup with this ABB shunt trip to ensure fast and reliable remote tripping of circuit breakers. Browse more from the Circuit Trips category for compatible and complementary products on EnvMart.
