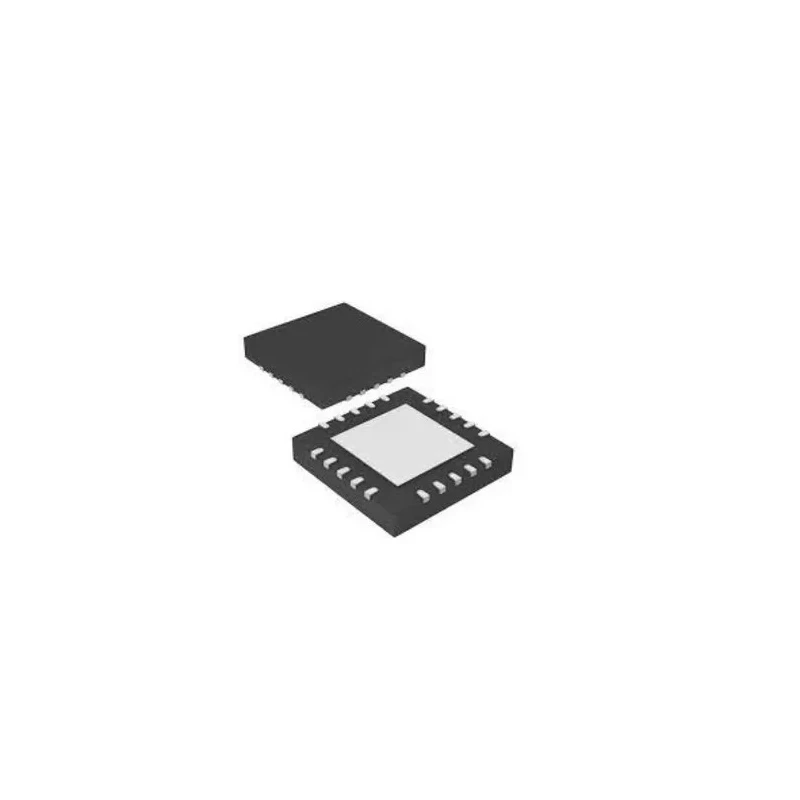

Microchip 16 Bit PIC24F Microcontroller 16kB FLASH 32 MHz 20-Pin QFN

Microchip PIC24F16KA101-E/MQ is a high-performance 16-bit microcontroller featuring a modified Harvard architecture CPU capable of up to 16 MIPS at 32 MHz. It supports a broad operating voltage range of 2.5 V to 5.5 V, making it suitable for various industrial and automotive applications.

The microcontroller incorporates 16kB of FLASH program memory and 1.5kB of RAM memory. It comes housed in a compact 20-pin QFN surface mount package measuring 5 mm by 5 mm with a height of 900 μm, facilitating integration into compact PCB designs.

The device provides 18 programmable input/output pins, 10-bit ADCs, 5-bit DACs, and 2 analogue comparators, enabling effective interfacing and signal processing capability. It also includes three timers for precise timing operations and supports in-circuit serial programming (ICSP) and debugging (ICD) via two dedicated pins.

The internal oscillator setup features an 8 MHz frequency with a 4x PLL multiplier and alternative clock divide settings. A fail-safe clock monitor (FSCM) ensures reliability by providing a stable reference clock source. Additionally, the system frequency range declaration bits optimize current consumption.

Key protective features include programmable high/low-voltage detect (HLVD), brown-out reset (BOR) with three programmable trip points, and deep sleep low power brown-out reset for energy-efficient standby modes.

The microcontroller is compliant with RoHS directives and meets the automotive AEC-Q100 qualification, ensuring high reliability for automotive and industrial applications. It operates reliably in the temperature range from -40°C to 85°C.

This microcontroller is fit for use in industrial automation, embedded systems, automotive electronics, instrumentation, and various other applications requiring efficient, reliable 16-bit processing.

The device features a 16-bit PIC architecture with RISC instruction set. Equipped with 1.5kB RAM and 16kB FLASH program memory size. Operational voltage ranges from 2.5V minimum to 5.5V maximum. Includes 18 programmable I/O pins and a 20-pin QFN surface mount package.

Integrates 10-bit ADCs and 5-bit DACs with 2 analogue comparators. Supports operating temperatures from -40°C to 85°C suitable for industrial environments. Maximum clock frequency of 32 MHz with an internal 8 MHz oscillator and PLL options.

Includes three timers and supports in-circuit serial programming and debugging. Complies with RoHS and Automotive AEC-Q100 standards. Explore the Electronics & Electricals Semiconductor Microcontroller category on EnvMart for more high-quality Microcontrollers.
