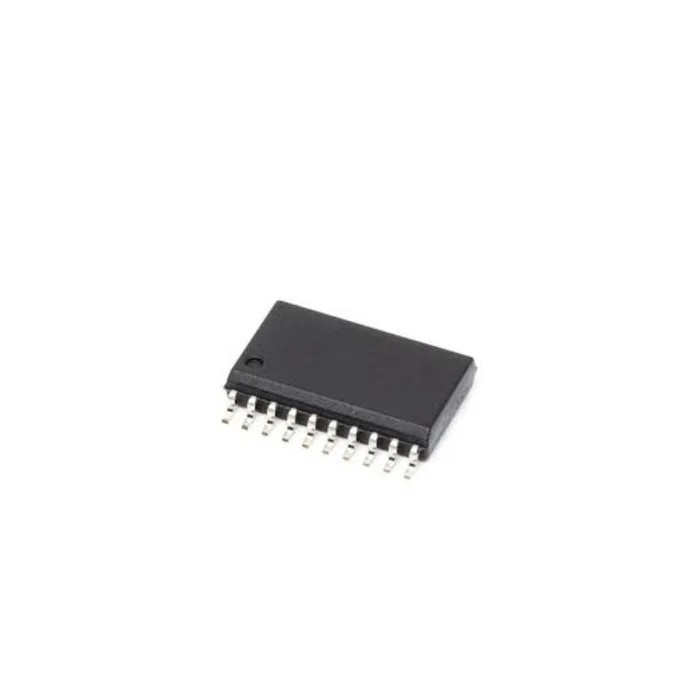

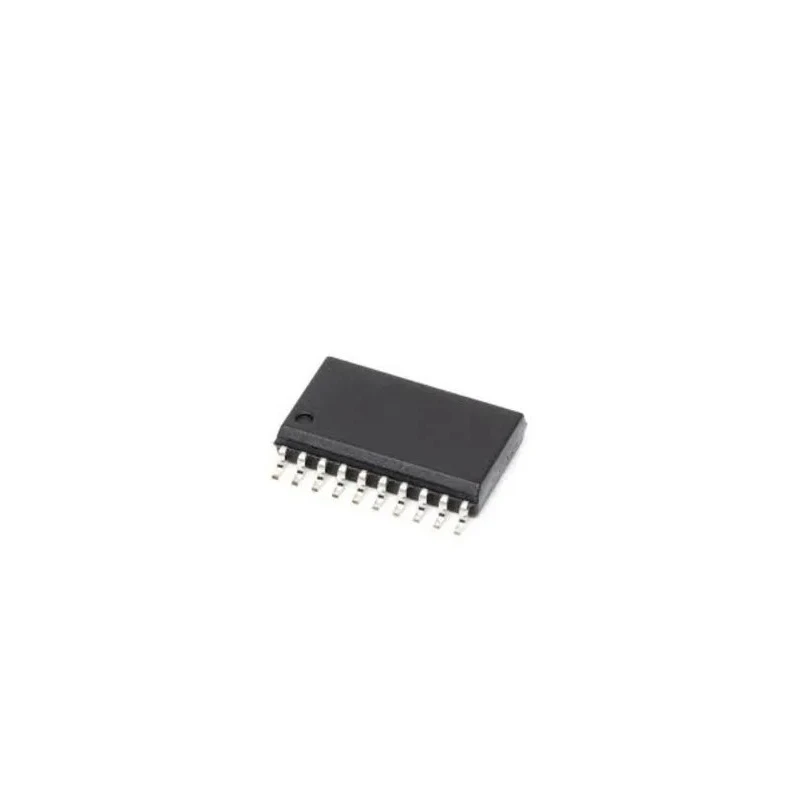

Microchip 8 bit PIC Microcontroller 32 MHz, 28kB FLASH, 20-Pin SOIC PIC16F18446-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC16F18446-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | SPI, CWG, PPS, NCO, I2C, EUSART |
| Standards/Approvals | SVHC-free, RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Number of Timers | 8 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features a RISC architecture optimized for C Compiler usage.
- Supports multiple interface types including SPI, I2C, EUSART, and PPS.
- Incorporates intelligent analog and core-independent peripherals for versatile applications.
- Operates with a maximum supply voltage of 5.5V and minimum supply voltage of 2.5V.
- Includes 2kB RAM and 18 programmable I/O pins for flexibility in design.
- Equipped with 1 x 5-bit DACs and 10-bit ADCs for accurate analog signal processing.
- Designed for extended temperature range from -40°C to 85°C suitable for industrial use.
- Compliant with RoHS and SVHC-free standards ensuring environmental safety.
Product Description
Microchip PIC16F18446-I/SO is an 8 bit PIC Microcontroller designed for industrial and embedded applications requiring low power consumption and high efficiency. It features a 32 MHz maximum clock frequency and a 28kB Flash program memory for robust code storage and execution.
This microcontroller integrates intelligent analog features and core-independent peripherals, providing versatile options for custom electronic designs. Key interfaces include SPI, CWG, PPS, NCO, I2C, and EUSART, enabling diverse communication protocols.
The device operates over a wide voltage range from 2.5V to 5.5V, ensuring flexibility in power supply conditions. It also supports a temperature range from -40°C to 85°C, making it suitable for harsh industrial environments.
With 2kB of RAM and 18 programmable input/output pins, this microcontroller empowers complex control and signal processing tasks. The integrated 10-bit ADC and 5-bit DAC provide precise analog data handling capabilities.
Encased in a surface mount 20-pin SOIC package measuring 7.5mm wide, the microcontroller is optimized for compact PCB designs. It complies with RoHS and SVHC directives, confirming its adherence to environmental safety regulations.
Features a RISC architecture optimized for C Compiler usage. Supports multiple interface types including SPI, I2C, EUSART, and PPS. Incorporates intelligent analog and core-independent peripherals for versatile applications.
Operates with a maximum supply voltage of 5.5V and minimum supply voltage of 2.5V. Includes 2kB RAM and 18 programmable I/O pins for flexibility in design. Equipped with 1 x 5-bit DACs and 10-bit ADCs for accurate analog signal processing.
Designed for extended temperature range from -40°C to 85°C suitable for industrial use. Compliant with RoHS and SVHC-free standards ensuring environmental safety. Ideal for general purpose and low power embedded system applications.
Surface mount 20-pin SOIC package with a width of 7.5mm for compact PCB layouts.
This microcontroller is ideal for industrial control systems, consumer electronics, automotive applications, and general embedded solutions where low power and high performance are critical.
Explore a wide range of Microchip Microcontrollers on EnvMart for reliable and efficient electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 28kB, allowing for robust code storage and execution.
This microcontroller supports multiple interface types including SPI, I2C, EUSART, CWG, PPS, and NCO.
It operates with a maximum supply voltage of 5.5V and a minimum supply voltage of 2.5V.
This model is designed to operate within an extended temperature range from -40°C to 85°C, suitable for industrial use.
The PIC16F18446-I/SO includes 18 programmable I/O pins, providing flexibility in design.
It is encased in a 20-pin SOIC package, measuring 7.5mm in width, optimized for compact PCB layouts.
It is equipped with a 10-bit ADC and a 5-bit DAC for accurate analog signal processing.
This microcontroller includes 2kB of RAM for data storage and processing.
The PIC16F18446-I/SO is compliant with RoHS and SVHC-free standards, ensuring environmental safety.
It features a RISC architecture optimized for C Compiler usage, enhancing its performance for embedded applications.
This microcontroller includes 8 timers, which can be utilized for various timing and control applications.
