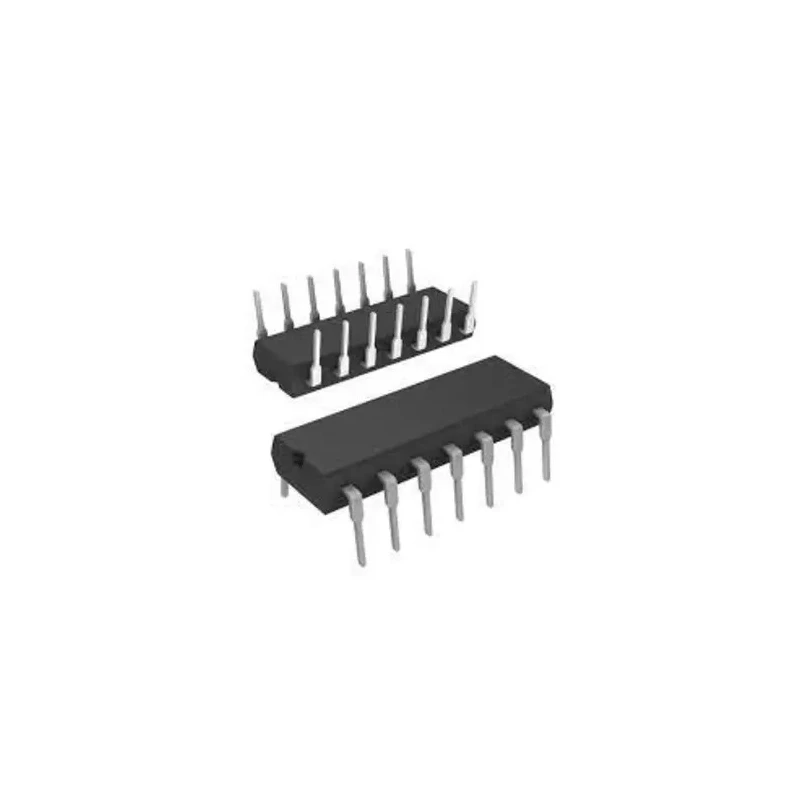

Microchip 8-bit PIC Microcontroller, 20 MHz, 1.7kB FLASH, 14-Pin DIP PIC16F630-E/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC16F630-E/P |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Interface Type | GPIO, SPI, I2C, UART |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 1.7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 12 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
Key Features
- Supports multiple interfaces including GPIO, SPI, I2C, and UART.
- Wide operating voltage range from 2.5V to 5.5V ensures flexible power supply options.
- Operates reliably across industrial temperature range from -40°C to 85°C.
- Features 12 programmable input/output pins and 64-bit RAM for efficient processing.
- Equipped with 10-bit ADCs and two timers for versatile control applications.
- Flash program memory enables high endurance with 100,000 write cycles.
- Includes power-saving sleep mode and watchdog timer with independent oscillator.
- Compliant with RoHS standards for environmental safety.
Product Description
Microchip PIC16F630-E/P is an 8-bit PIC microcontroller housed in a 14-pin DIP package, operating at a maximum clock frequency of 20 MHz and featuring 1.7kB of FLASH program memory.
This microcontroller supports a range of interfaces including GPIO, SPI, I2C, and UART, making it suitable for varied embedded system applications. Its wide operating voltage range from 2.5 to 5.5 volts and industrial-grade temperature tolerance from -40°C to 85°C ensure dependable operation in harsh environments.
The device includes 12 programmable I/O pins, 64-bit RAM, and 10-bit ADCs, allowing for flexible and precise control in automation and sensing tasks.
Power management features like sleep mode, watchdog timer with independent oscillator, power-on reset, and brown-out detection contribute to reliable performance and energy efficiency.
Adopting a RISC architecture with a minimal instruction set, it enables simple programming and fast execution suited for industrial, laboratory, and consumer electronics. Its flash memory is rated for 100,000 write endurance cycles and data retention exceeding 40 years, enhancing device longevity.
Compliant with RoHS standards, this microcontroller is environmentally safe and suitable for use in manufacturing and educational projects. Supports multiple interfaces including GPIO, SPI, I2C, and UART. Wide 2.5V to 5.5V operating voltage range with temperature tolerance from -40°C to 85°C.
Features low power modes including sleep and watchdog timers for energy-efficient operation. Program memory endurance supports up to 100,000 write cycles with flash/data EEPROM retention greater than 40 years. Compact 14-pin DIP packaging with 7.62 mm width suitable for prototyping and industrial use.
Ideal for industrial, laboratory, embedded system, and consumer electronics applications. Explore a wide range of Microcontrollers and semiconductors at EnvMart to suit your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F630-E/P microcontroller is 20 MHz.
This model features a program memory size of 1.7 kB.
It operates within a voltage range of 2.5V to 5.5V.
The microcontroller includes 12 programmable input/output pins.
It supports multiple interfaces including GPIO, SPI, I2C, and UART.
This microcontroller operates reliably across an industrial temperature range from -40°C to 85°C.
The RAM size of the PIC16F630-E/P is 64 bits.
It is equipped with two timers for versatile control applications.
This model includes 10-bit ADCs for precise control and sensing tasks.
Yes, it is compliant with RoHS standards for environmental safety.
The microcontroller is housed in a 14-pin DIP package type.
It adopts a RISC architecture with a minimal instruction set for efficient programming and execution.
