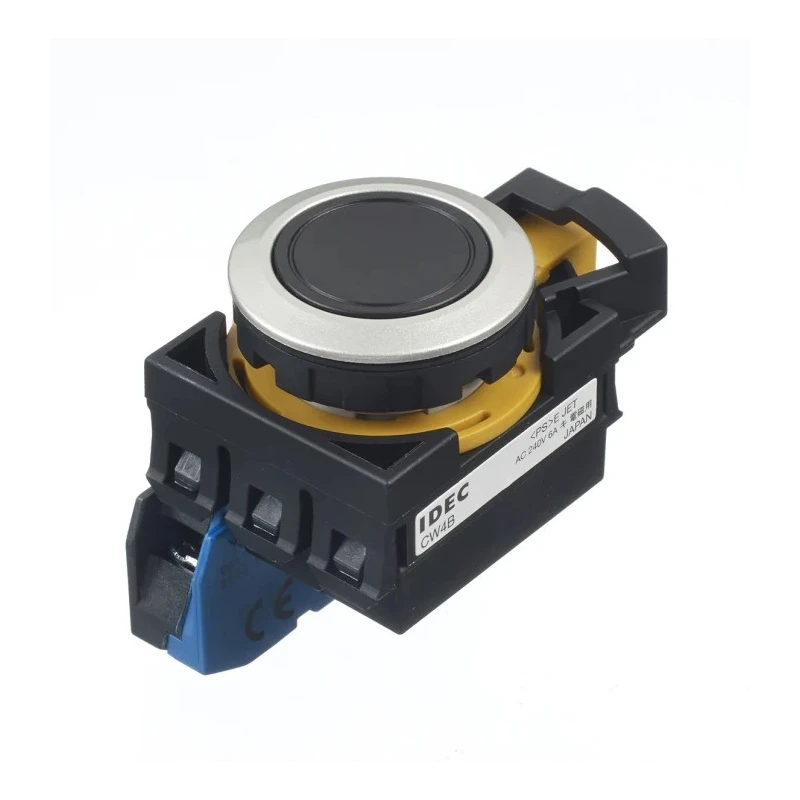

Idec CW Series Push Button Switch, Momentary, Panel Mount, 22 mm Cutout, 1 NO Contact, IP20/IP65/IP66/IP67, 240 V CW4B-M1E10B

Idec CW4B-M1E10B CW Series Push Button Switch is a momentary panel mount switch designed for industrial and commercial electrical control applications. The product features a black round actuator with a 22 mm cutout that complies with IEC standards, ideal for compact panel installations where space-saving and reliability are critical.

The switch supports 1 normally open (1 NO) contact configuration and is rated for 240 V AC/DC contact voltage with a maximum contact current of 10 A, making it suitable for a variety of control circuits and automation systems.

Engineered for durability, it offers IP ratings of IP20, IP65, IP66, and IP67, providing robust protection against dust ingress as well as water jets and temporary immersion, extending its usability in harsh industrial environments. The operational temperature range from -25°C to 60°C ensures stable performance across diverse temperature conditions.

Installation is simplified with panel mounting via a 22 mm cutout and easy-to-use screw terminals for secure electrical connections. The inventive two-step locking lever integrated with a guard enhances safety and prevents accidental operation.

This series emphasizes user-friendly operation with a 3.5 mm operator travel ensuring comfortable tactile feedback. The compact and space-saving design reduces panel depth, aiding in efficient industrial machine and control panel layouts.

The switch includes IP20 finger-safe screw terminals, complying with safety standards. Up to 6 contacts per switch is possible by using dual contact blocks, although this model is a single contact configuration. Contact blocks are removable through the locking lever, enabling easy maintenance.

Applications span industrial automation, machinery control, HVAC systems, and electrical panel installations where reliable, robust, and safe push button operation is essential. The product integrates seamlessly in manufacturing, process control, and laboratory environments.

Explore the full Idec CW Series for related Push Button Switches and pilot devices designed to meet a wide range of industrial electrical requirements. This product is new and manufactured for high-quality industrial use, with India as the default country of origin.

For additional products and related switch components, browse EnvMart's Electronics & Electricals Switches category.
