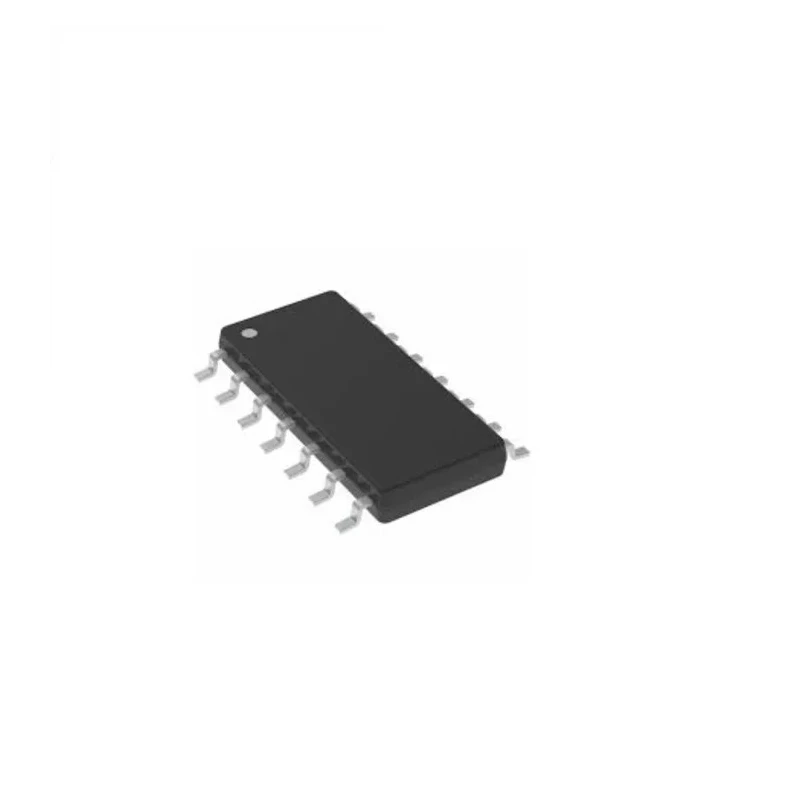

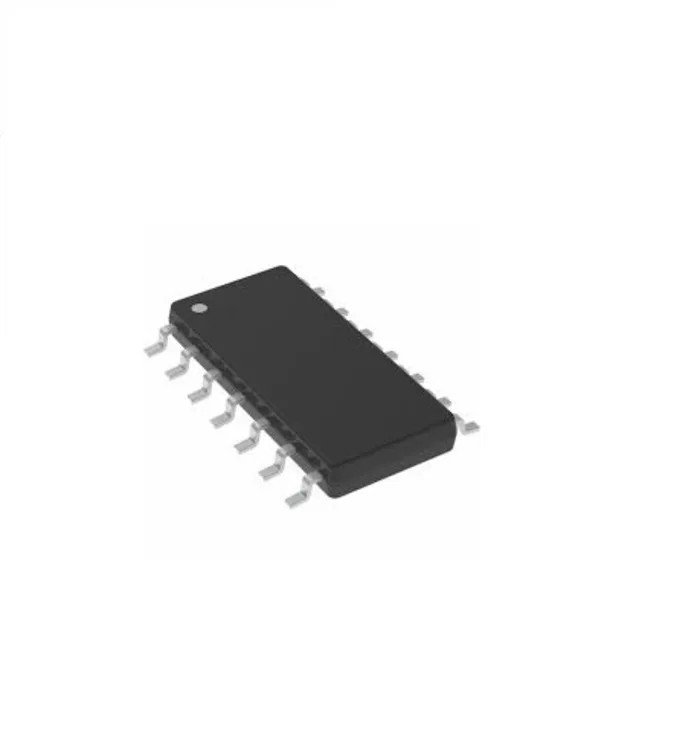

Microchip AVR Microcontroller 16kB FLASH, 20 MHz, 14-Pin SOIC ATTINY1614-SSF

Microchip ATTINY1614-SSF is an advanced AVR microcontroller designed for embedded system applications requiring low power consumption and high efficiency. It features a 14-pin SOIC surface mount package that integrates a 16kB in-system self-programmable flash memory operating at speeds up to 20 MHz. The device includes 2 kB SRAM and 256 bytes of EEPROM for versatile data retention, alongside integrated peripherals that facilitate capacitive touch interface via the Peripheral Touch Controller.

Developed with a flexible low power architecture, this microcontroller offers single-cycle I/O access and a two-level interrupt controller enabling responsive embedded control. The embedded 8-bit DACs and three analog comparators support precise analog interfacing, complemented by 10-bit ADCs for converting analog signals. It operates within a broad temperature range between -40°C and 125°C, ensuring reliability in industrial and automotive environments.

The microcontroller’s Harvard architecture and event system provide an efficient instruction execution flow suitable for sophisticated applications. It supports four flexible timers enabling diversified timing functions and incorporates a two-cycle hardware multiplier enhancing mathematical processing speeds. The flash memory endurance supports 10,000 write-erase cycles, ensuring long-term program storage, while EEPROM is rated for 100,000 cycles with a data retention of 40 years at 55°C.

This device targets industrial, laboratory, and commercial applications, including consumer electronics, automotive control systems, and precise instrumentations requiring stable performance under temperature stress and low voltage supply.

Utilizes AVR processor core with single-cycle I/O access for efficient performance. Includes 2kB SRAM and 256 bytes EEPROM for flexible data storage. Operates with a maximum supply voltage of 2.7V suitable for low-power applications.

Equipped with 22 programmable I/O pins for varied interfacing options. Features integrated 8-bit DACs and three analog comparators enhancing analog functionality. Supports up to 10-bit ADC resolution for precise analog to digital conversions.

Designed to operate in temperature range from -40°C to 125°C for harsh environments. Incorporates four timers and core independent peripherals for advanced control tasks. Program memory uses self-programmable FLASH supporting up to 10,000 write/erase cycles.

Built with Harvard architecture and embedded with advanced peripheral touch controller technology.

The package contains one Microchip ATTINY1614-SSF AVR microcontroller in a 14-Pin SOIC form factor. Its compact surface mount design enables high-density PCB layouts. This product offers engineers a reliable and feature-rich microcontroller for embedded control solutions.
