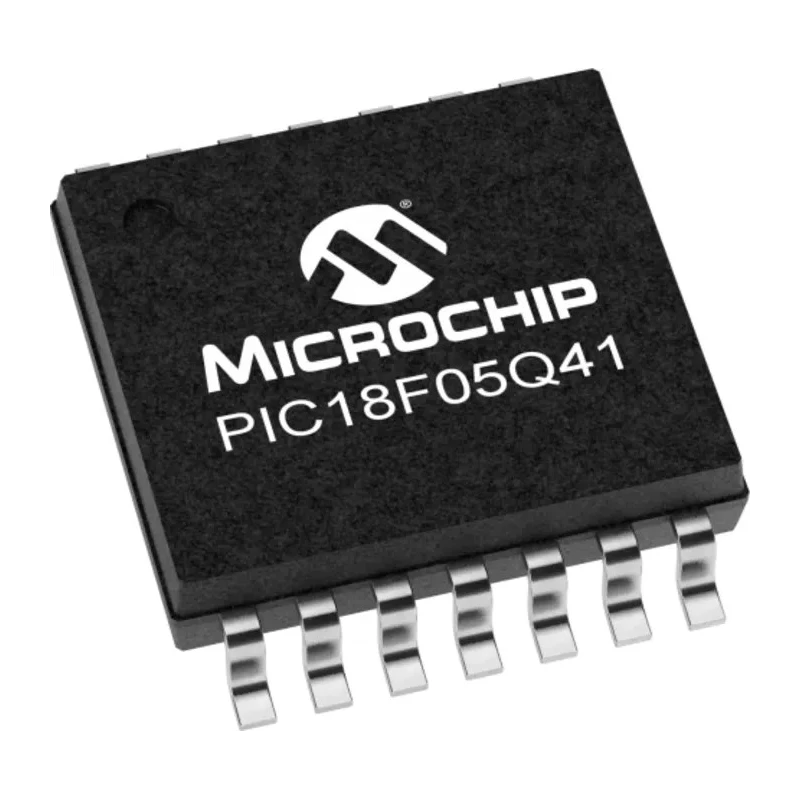

Microchip 8 bit PIC18 Microcontroller with 32kB FLASH, 64 MHz, 14-Pin TSSOP PIC18F05Q41-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F05Q41-I/ST |
| Mount Type | Surface Mount |
| Series | PIC18 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Interface Type | I2C, SPI, UART |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC18F |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 64kB |
| Number of Timers | 5 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 2 x 8 Bit |
Key Features
- Operates at a maximum supply voltage of 5.5 V and a minimum of 1.8 V.
- Provides 4 kB RAM and 32 kB program memory size.
- Includes 2 analogue comparators and 2 x 8-bit DACs for advanced analog peripherals.
- Features 12 programmable I/Os and supports I2C, SPI, and UART interfaces.
- Designed for operating temperatures from -40°C up to 125°C for industrial reliability.
- Incorporates 12-bit ADCs, 5 timers, and a Harvard instruction set architecture.
- Equipped with three 16-bit dual PWMs providing six PWM outputs.
- Compact 14-pin TSSOP surface mount package suitable for embedded applications.
Product Description
Microchip PIC18F05Q41-I/ST 8 bit PIC18 Microcontroller is a high-performance device with a 64 MHz maximum clock frequency and 32kB FLASH program memory, packaged in a compact 14-Pin TSSOP surface mount format. It offers advanced analog peripherals, including an on-chip operational amplifier, 12-bit ADC with computation capability, and dual 8-bit DACs, making it ideal for sensor and real-time control applications.
This microcontroller integrates 12 programmable I/Os and supports multiple communication interfaces such as I2C, SPI, and UART, enabling versatile connectivity options. The device provides 4kB of RAM and can operate across a wide voltage range from 1.8 V minimum to 5.5 V maximum, supporting robust power management in embedded electronics.
Featuring a Harvard instruction set architecture, this controller includes five timers and analog comparators alongside the PWM outputs which enhance control and modulation capabilities in industrial and automation contexts.
Designed for demanding operating conditions, it withstands temperatures ranging from -40°C to 125°C, adhering to RoHS standards for environmental compliance. Its compact footprint and advanced features suit applications in industrial control, sensors, embedded systems, and other precision electronics.
Operates with a maximum supply voltage of 5.5 V and a minimum of 1.8 V. Includes 32kB FLASH program memory and 4kB RAM for efficient processing. Offers 2 analogue comparators and 2 x 8-bit DACs for signal conditioning. Supports I2C, SPI, and UART interfaces for communication flexibility.
Built for a temperature range from -40°C to 125°C suitable for industrial use. Features 12 programmable I/O pins and 12-bit ADCs for analog signal acquisition. Contains five timers and Harvard architecture to optimize task scheduling.
Equipped with three 16-bit dual PWMs delivering six PWM outputs. Complies with RoHS environmental standards.
This microcontroller from Microchip is ideal for embedded systems in industrial automation, sensor interfacing, consumer electronics, and real-time control applications. Explore more quality Microchip Microcontrollers and related components at EnvMart technology solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC18F05Q41-I/ST microcontroller is 64 MHz.
This microcontroller is designed to operate within a temperature range of -40°C to 125°C.
It features a program memory size of 32 kB.
The PIC18F05Q41-I/ST supports I2C, SPI, and UART communication interfaces.
It operates with a minimum supply voltage of 1.8 V and a maximum supply voltage of 5.5 V.
This model includes 4 kB of RAM.
It has 12 programmable I/O pins.
The PIC18F05Q41-I/ST is packaged in a 14-Pin TSSOP surface mount format.
It features 12-bit ADCs for analog signal acquisition.
This model includes five timers.
It complies with RoHS environmental standards.
It includes 2 analog comparators and 2 x 8-bit DACs for advanced signal conditioning.
