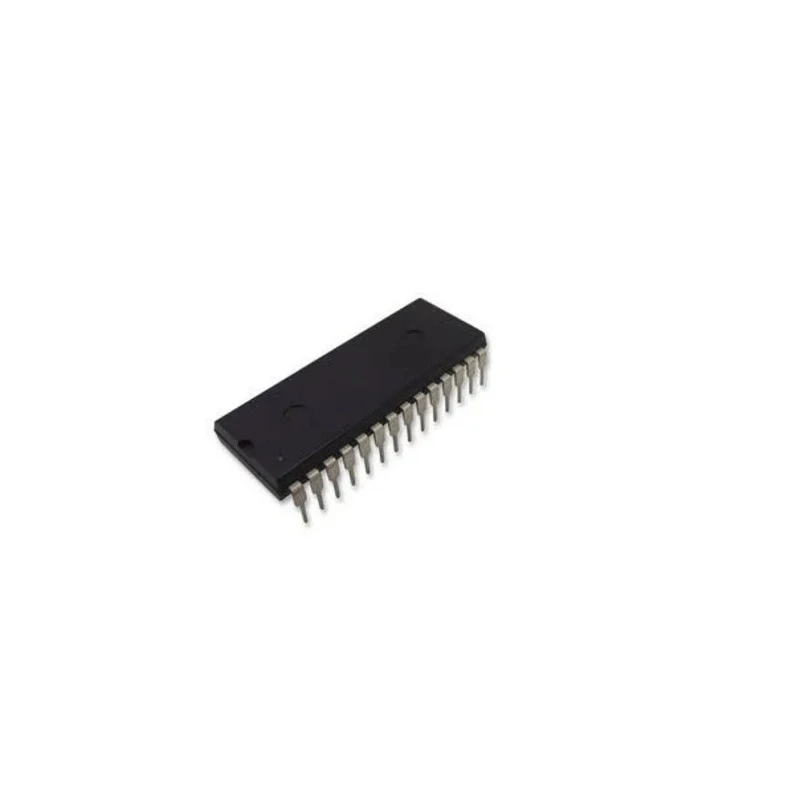

Microchip 8 bit PIC Microcontroller, 64 MHz, 128kB FLASH, 8kB RAM, 28-Pin DIP PIC18F27Q43-I/SP

Microchip PIC18F27Q43-I/SP is an 8 bit PIC Microcontroller designed for general purpose and low power applications. Operating at a maximum clock frequency of 64 MHz, this microcontroller incorporates a 128kB Flash program memory and 8kB of RAM, enclosed in a 28-pin DIP through-hole package.

Engineered with Microchip's optimized RISC architecture, it supports efficient C compiler code execution. The device features a 12-bit ADC with computation capabilities, up to 25 programmable I/O pins, and advanced peripherals including multiple timers and DACs.

This microcontroller supports various power-saving modes including brown-out reset and power-on reset, making it suitable for battery-powered and low power devices. It operates within a supply voltage range of 2.5V to 5.5V and endures operating temperatures from -40°C to 85°C, making it suitable for industrial and automotive applications where environmental conditions vary.

The package type is DIP, which facilitates easy prototyping and soldering in board designs requiring through-hole components. Compliance with REACH and RoHS3 ensures environmental and regulatory adherence.

With its integrated Core Independent Peripherals and Peripheral Pin Select (PPS), the PIC18F27Q43-I/SP offers extensive customization and control options for embedded system designers.

Features RISC architecture optimized for C compiler efficiency. Includes 12-bit Analog-to-Digital Converter with Computation (ADC2) for precise analog input. Offers up to 25 programmable input/output pins for versatile interfacing.

Supports low power operating modes with brown out and power-on reset options. Operating voltage range from 2.5 V to 5.5 V for low power applications. Wide operating temperature range from -40°C to 85°C suitable for industrial environments.

Equipped with 5-bit DACs and 10-bit ADCs for mixed signal applications. Program memory is 128kB Flash type, ensuring reliability and rewritability. Mount type is through hole for ease of prototyping and repair in DIP package.

Complies with REACH and RoHS3 standards for environmental safety.

This microcontroller is widely used in industrial control, automotive embedded systems, consumer electronics, and other applications requiring precise analog interfacing and low power consumption. Its robust peripheral set and wide operational specifications make it ideal for diverse embedded development projects.
