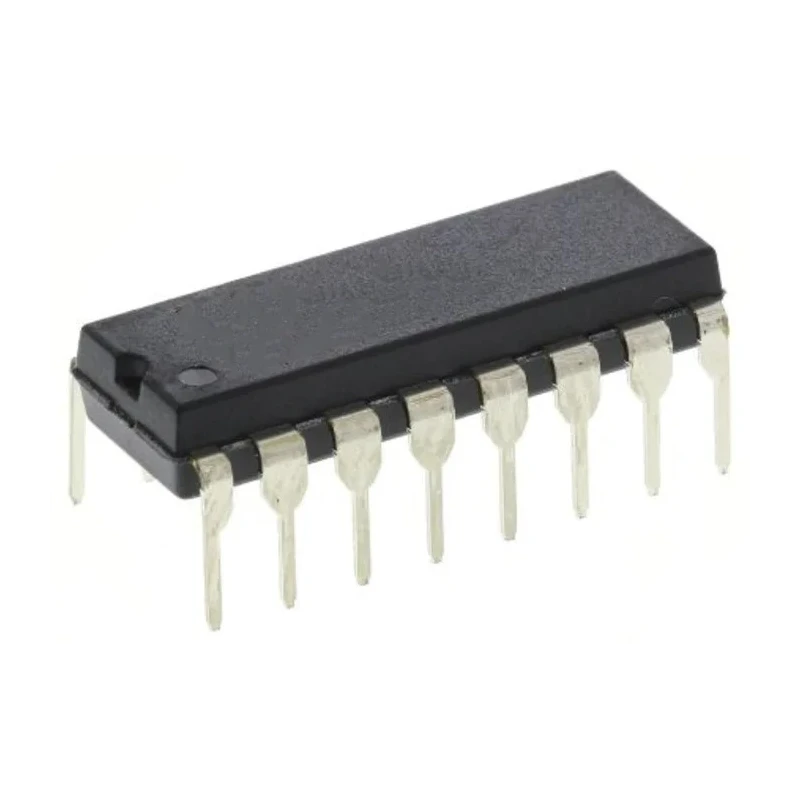

Renesas Electronics CMOS Logic Multiplexer, 1 Element, 16-Pin PDIP DG408DJZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | DG408DJZ |
| Output type | CMOS/TTL |
| Series | DG408 |
| Configuration | 0.33 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 34V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 125Ω |
Key Features
- Single 8-channel analog multiplexer with 0.33 configuration.
- CMOS logic family ensuring low power consumption and high noise immunity.
- Operates with minimum supply voltage of 5V and maximum supply voltage of 34V.
- Maximum on state resistance of 125 ohms for efficient signal transmission.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- TTL/CMOS compatible digital decode circuit for channel selection.
- Low charge injection for reduced signal distortion in analog switching.
- Packaged in a 16-pin PDIP suitable for through-hole PCB mounting.
Product Description
Renesas Electronics DG408DJZ is a high-quality single 8-channel monolithic CMOS analog multiplexer featuring an array of analog switches and a TTL/CMOS compatible digital decode circuit for efficient channel selection. Packaged in a 16-pin PDIP format, it facilitates easy integration into PCB designs for various electronic systems.
This multiplexer operates with a minimum supply voltage of 5V and a maximum supply voltage of 34V, supporting a wide range of industrial and electronic applications. With a maximum on state resistance of 125 ohms, it ensures reliable signal switching with minimal loss. It performs well in harsh environments with an operating temperature range from -40°C to 85°C.
The low charge injection characteristic minimizes signal distortion, making the DG408DJZ ideal for precision analog signal routing. Its CMOS logic family design allows for low power consumption and compatibility with TTL systems, enabling versatile use cases.
This device is suitable for applications in industrial electronics, laboratory equipment, manufacturing automation, communication devices, and other electronic systems requiring multiplexing of analog signals. The 16-pin PDIP package supports through-hole mounting, facilitating prototyping and production.
Packaged in a tube, this multiplexer IC is shipped ready for insertion into machinery or PCB assembly, improving production efficiency. The DG408DJZ embodies high reliability, performance, and flexibility for a broad range of electrical and electronic component needs.
Single 8-channel CMOS analog multiplexer with TTL/CMOS compatibility. Wide supply voltage range from 5V to 34V supports diverse applications. Maximum on state resistance of 125 ohms ensures efficient switching. Robust operating temperature range from -40°C to 85°C.
16-pin PDIP package suitable for through-hole mounting. Low charge injection minimizes signal distortion. Ideal for industrial electronics, manufacturing, and communication systems. Explore more Multiplexer ICs from Renesas Electronics and other leading brands on EnvMart for all your technical component needs.
