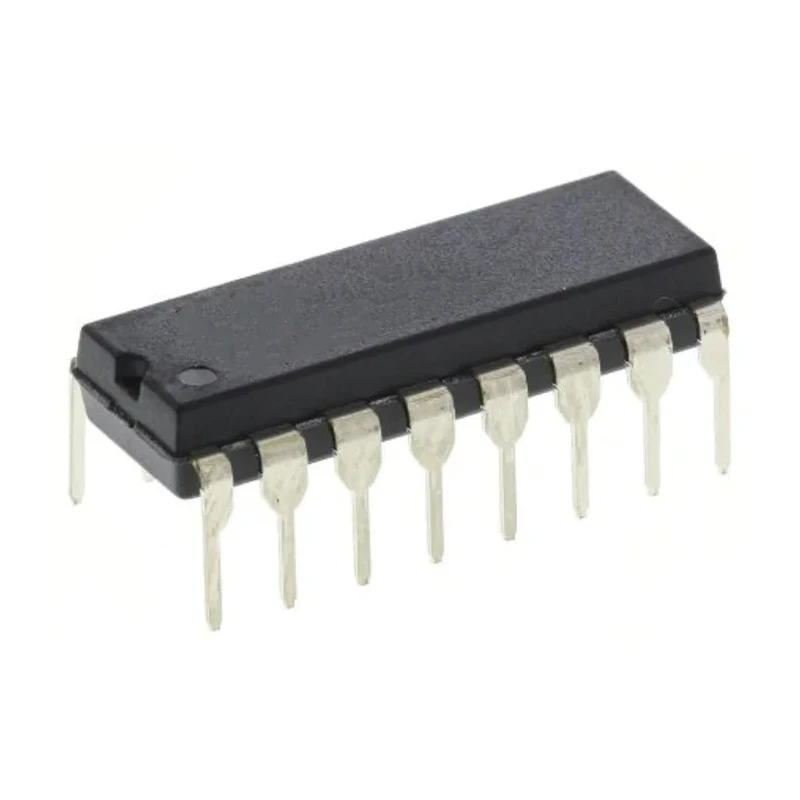

Renesas Electronics Multiplexer CMOS Logic Family, 16-Pin PDIP Package, 5-34V Supply, DG408DJZ

Renesas Electronics DG408DJZ is a high-quality multiplexer belonging to the CMOS logic family featuring a 16-Pin PDIP package. This device operates with a wide supply voltage range from 5V minimum up to 34V maximum, making it suitable for various electronic applications requiring analog switching.

The multiplexer contains a single element per chip comprising eight analog switches controlled through a TTL/CMOS compatible digital decode circuit, providing precise channel selection in compact circuitry. Its maximum on state resistance of 125Ω ensures efficient signal conduction with minimal loss.

Designed for industrial and electronic manufacturing environments, the DG408DJZ supports operation in temperatures ranging between -40°C and 85°C, guaranteeing reliability under harsh conditions. The CMOS/TTL compatible output makes it versatile for integration with different logic families and digital systems.

Key characteristics include low charge injection for signal integrity, along with the flexibility of single or split supply operation, enabling designers to tailor power requirements. The standard 16-Pin PDIP package facilitates easy breadboard prototyping and soldered PCB installation.

Operates with supply voltage ranging from 5V to 34V. Contains a single 8-channel monolithic CMOS analog multiplexer. Supports TTL/CMOS compatible digital control circuit for channel selection. Maximum on state resistance of 125 ohms for efficient switching.

Operating temperature range from -40°C to 85°C ensures durability. Low charge injection maintains signal fidelity. Package type: 16-Pin PDIP for convenient mounting.

This multiplexer IC is ideal for applications in electronics and electrical manufacturing, industrial equipment, test and measurement instruments, and embedded systems requiring reliable analog switching capabilities.

Explore related multiplexer and deMultiplexer ICs in our Electronics & Electricals category for improved design flexibility and enhanced system performance. Renesas Electronics products feature consistent quality for demanding industrial and commercial applications.
