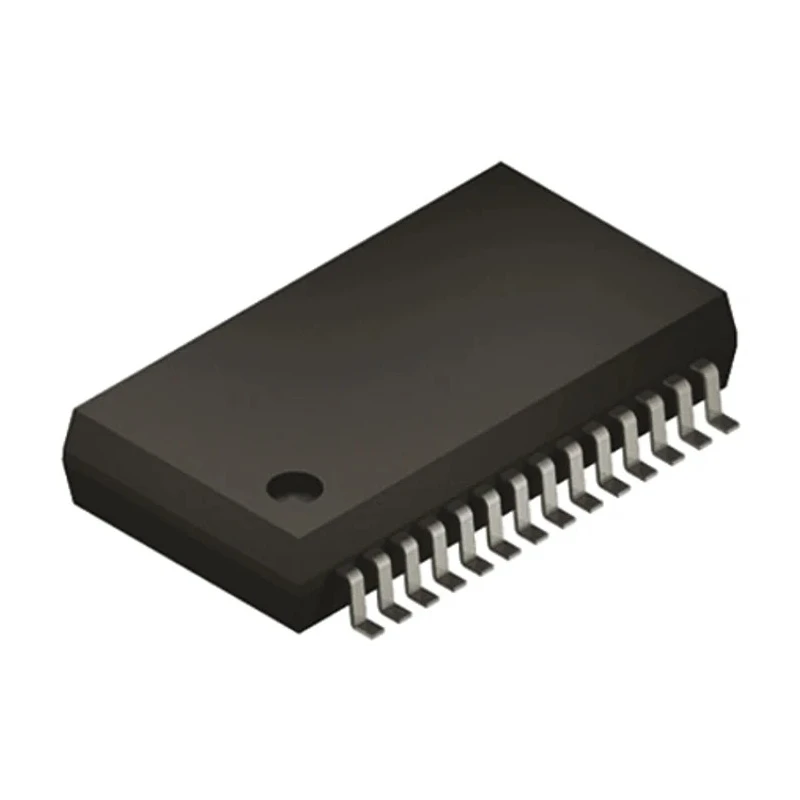

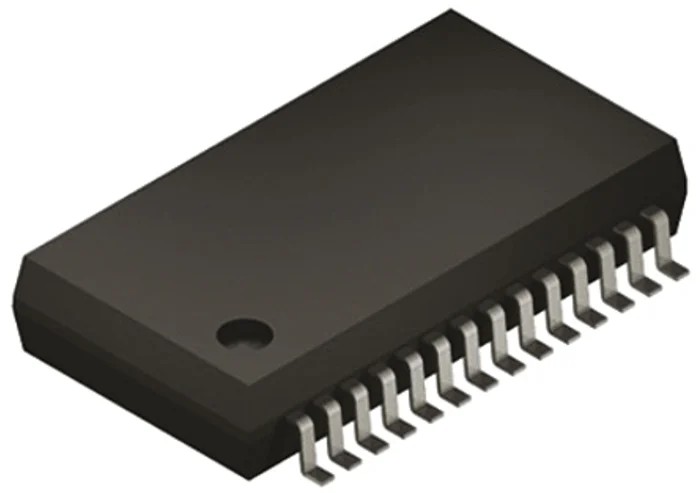

Microchip 8 bit PIC16F Microcontroller with 32 MHz FLASH, 14kB Program Memory, 28-Pin SSOP PIC16F1716-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC16F1716-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.024kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 25 x 10 Bit |
| Program Memory Type | FLASH |
| Intelligent Analog | Up to two OP amps, up to two high-speed comparators, up to 28 input channels of 10-bit ADC and up to one 5-bit/8-bit DAC |
| Configurable Logic Cell (CLC) | Create custom combinational and sequential logic using the configurable logic cell module. External Gates and state functions can also be brought into the MCU itself |
| Numerically Controlled Oscillator (NCO) | Frequency output adjustable with very fine steps. The NCO provides high-resolution oscillator capabilities for control applications such as lighting ballast, radio and tone generators |
| Zero Cross Detect (ZCD) | AC high-voltage zero crossing detection simplifies Triac control, synchronized switching control and timing |
| Peripheral Pin Select (PPS) | Configure any digital peripheral to any pin via an internal multiplexer to ensure layout flexibility and the elimination of pin overlap |
| Microchip PIC, PIC16F Microcontroller, 28-Pin SSOPBrand | Microchip |
Key Features
- Implements a RISC instruction set architecture for efficient processing.
- Includes up to two OP amps, two high-speed comparators, and a 10-bit ADC with 28 input channels.
- Equipped with configurable logic cell (CLC) module for custom combinational and sequential logic.
- Features numerically controlled oscillator (NCO) and complementary output generator (COG) for advanced waveform and frequency control.
- Supports zero cross detect (ZCD) for AC high-voltage synchronized switching.
- Peripheral pin select (PPS) allows flexible digital peripheral pin mapping.
- Operates within a voltage range of 2.3 V to 5.5 V and temperature range of -40°C to 85°C.
- Compact surface mount 28-pin SSOP package with dimensions 10.5 mm length x 5.6 mm width x 1.85 mm height.
Product Description
Microchip PIC16F1716-I/SS is an 8-bit PIC microcontroller designed for cost-sensitive general purpose applications across industrial, consumer, and automotive sectors. Featuring a maximum clock frequency of 32 MHz and 14kB of flash program memory, it efficiently supports real-time control and processing tasks.
This microcontroller integrates intelligent analog peripherals including up to two operational amplifiers and two high-speed comparators, alongside a 28-channel 10-bit ADC and DAC outputs, enabling precise analog interfacing. The configurable logic cell (CLC) module provides customizable combinational and sequential logic functions directly within the MCU, enhancing application flexibility.
Additional advanced features include a numerically controlled oscillator (NCO) for fine frequency output control, and a complementary output generator (COG) for generating synchronous switching waveforms with dead band control, reducing processor overhead. The zero cross detect (ZCD) functionality simplifies TRIAC control for AC power applications.
Peripheral pin select (PPS) technology permits flexible assignment of peripheral functions to device pins, improving PCB layout possibilities and eliminating pin conflicts. Operating voltage spans from 2.3 V to 5.5 V, with ambient operating temperature range of -40°C to 85°C, catering to harsh industrial environments.
Packaged in a compact 28-pin SSOP form factor measuring 10.5 mm by 5.6 mm by 1.85 mm, it is suitable for surface mounting in space-constrained applications. This microcontroller fully complies with RoHS standards.
Implements a RISC architecture for optimized instruction execution. Offers integrated intelligent analog components including OP amps, comparators, ADC, and DAC. Configurable logic cell for embedded logic functions. NCO and COG modules provide advanced waveform and frequency generation.
Zero cross detect functionality for AC power control. Peripheral pin select allows customizable pin mapping. Wide voltage and temperature operating ranges suitable for industrial use. Compact 28-pin SSOP surface mount package.
This microcontroller is widely used in embedded systems for industrial automation, consumer electronics, and automotive applications. It allows designers to create flexible, energy-efficient, and reliable devices with integrated analog and digital features to meet complex control requirements.
Explore Microchip Microcontrollers with advanced features and compact packaging solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F1716-I/SS microcontroller is 32 MHz.
This microcontroller features a program memory size of 14 kB.
It operates within a voltage range of 2.3 V to 5.5 V.
The ambient operating temperature range for this model is -40°C to 85°C.
The ADC in this microcontroller supports up to 28 input channels, each with 10-bit resolution.
This microcontroller is packaged in a compact 28-pin SSOP (Shrink Small Outline Package).
It includes up to two operational amplifiers, two high-speed comparators, and a 10-bit ADC.
This model features a pin count of 28.
Yes, it includes zero cross detect (ZCD) functionality for AC high-voltage synchronized switching.
The height of this microcontroller is 1.85 mm.
It implements a RISC (Reduced Instruction Set Computing) instruction set architecture for efficient processing.
This microcontroller complies with RoHS standards.
