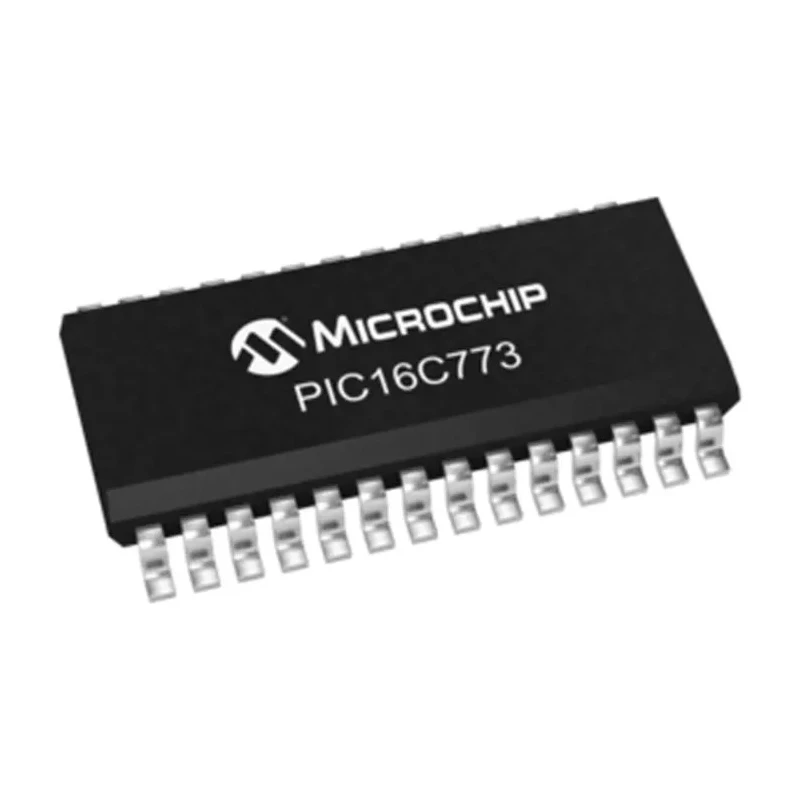

Microchip PIC16C 8-bit Microcontroller 20 MHz 7kB EPROM 28-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.36mm |
| Length | 18.08mm |
| Model | PIC16C |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | PIC16C |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 24 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 6 x 12 bit |
| Program Memory Type | EPROM |
Key Features
- Utilizes Microchip's PIC architecture with 8-bit CMOS design.
- Features 256-bit RAM and 7kB EPROM program memory for reliable data storage.
- Operating voltage range from 2 V minimum to 5.5 V maximum for flexible power requirements.
- Equipped with 24 programmable I/O pins and 6 channels of 12-bit ADC for precise analog inputs.
- Supports synchronous serial port with SPI and I2C communication protocols.
- Offers power management features such as power-on reset, power-up timer, brown-out reset, and watchdog timer.
- Compact surface mount SOIC package measuring 18.08 mm length, 7.59 mm width, and 2.36 mm height.
- Operates reliably within temperature range of -40°C to 85°C, suitable for industrial environments.
Product Description
Microchip PIC16C PIC16C773-I/SO is an 8-bit microcontroller designed with Microchip's mid-range PIC architecture, featuring a 20 MHz maximum clock frequency and 7kB EPROM program memory. This device is supplied in a 28-pin SOIC surface mount package, making it suitable for compact PCB designs in various electronic applications.
The microcontroller offers 256-bit RAM and 24 programmable I/O pins, enabling versatile interfacing options. It incorporates six 12-bit analog-to-digital converters (ADCs) for precise measurement tasks and includes two 8-bit timers and one 16-bit timer to support complex timing requirements.
Built with RISC instruction set architecture, it provides up to 5 MIPS processing speed under optimal conditions. Communication interfaces include a synchronous serial port with SPI and I2C protocols, alongside UART support with USART/SCI.
Power management features include power-on reset, power-up timer, oscillator start-up timer, brown-out reset, and a watchdog timer, enhancing stability and reliability in demanding industrial and commercial applications. The device operates across a wide voltage range from 2 V to 5.5 V and is rated for operation between -40°C to 85°C, ensuring robust performance.
This microcontroller complies with RoHS environmental standards. The compact and lightweight SOIC package (18.08 mm x 7.59 mm x 2.36 mm) optimizes space utilization on boards. It is ideal for legacy designs requiring EPROM technology, although newer PIC16F Flash-based variants may be preferable for new development projects.
Utilizes Microchip's PIC architecture with 8-bit CMOS design. 7 kB EPROM program memory and 256-bit RAM. Maximum clock speed of 20 MHz providing up to 5 MIPS. Supports 24 programmable I/O pins and 6 channel 12-bit ADC. Three timers including two 8-bit and one 16-bit.
Serial communication interfaces: SSP with SPI/I2C and USART/SCI. Power management features: POR, PWRT, OST, BOR, WDT. RoHS compliant and environmentally friendly. Operation temperature range -40°C to 85°C. Compact 28-pin SOIC surface mount package.
This microcontroller is widely used in industrial, electronic, and embedded system applications requiring reliable 8-bit control and legacy EPROM technology. It is suitable for manufacturing, automation, and general-purpose control systems. EnvMart offers a wide selection of Microchip Microcontrollers for diverse industrial and commercial architectures.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, allowing for efficient processing speeds up to 5 MIPS under optimal conditions.
This model features a program memory size of 7 kB EPROM, providing ample space for data storage and program execution.
It is equipped with 24 programmable I/O pins, allowing for versatile interfacing options in various applications.
The operating voltage range for this unit is from 2 V to 5.5 V, accommodating flexible power requirements for different applications.
The compact SOIC package measures 18.08 mm in length, 7.59 mm in width, and 2.36 mm in height, optimizing space utilization on PCBs.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
Yes, it supports synchronous serial communication protocols including SPI and I2C, along with UART support via USART/SCI.
This model features 256-bit RAM, providing necessary memory for data handling and processing tasks.
It includes six 12-bit ADCs, enabling precise measurement tasks for various applications.
The device includes several power management features such as power-on reset, power-up timer, brown-out reset, and a watchdog timer.
This microcontroller has a pin count of 28, suitable for compact designs and applications.
Yes, this microcontroller complies with RoHS environmental standards, ensuring it meets regulations for hazardous substances.
