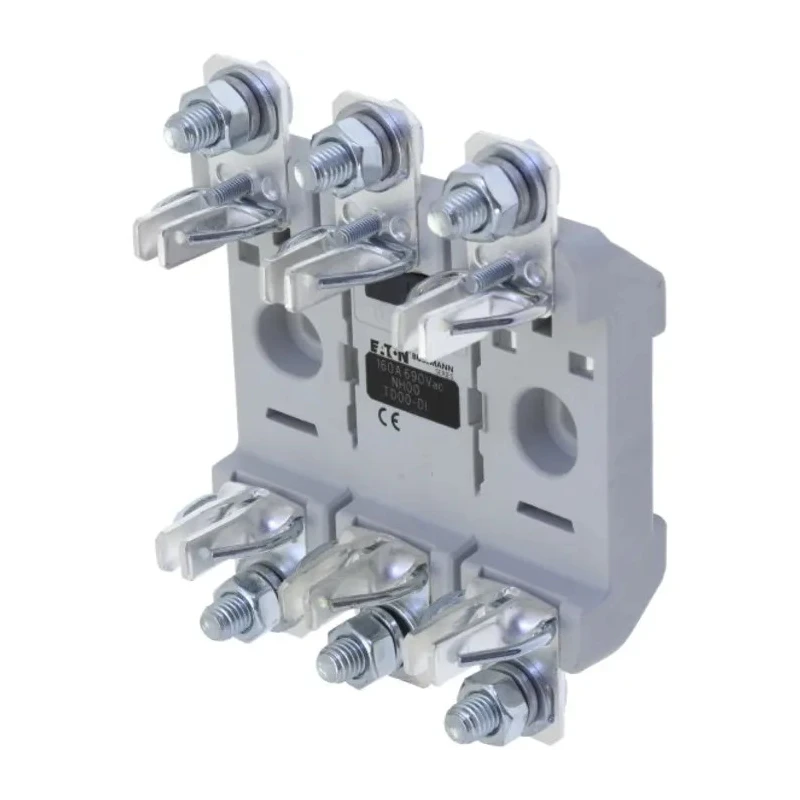

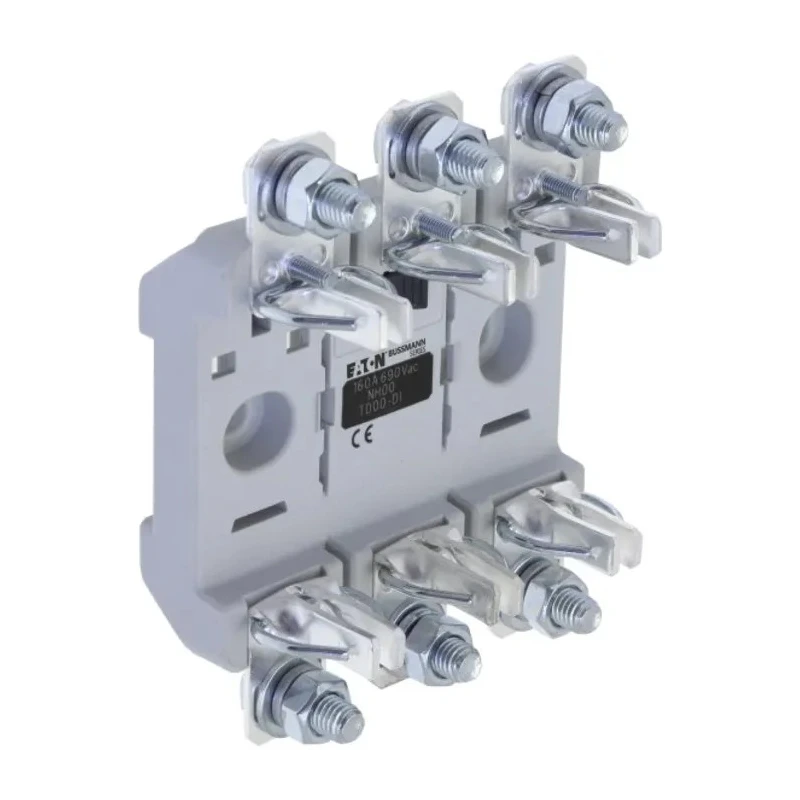

Eaton 160A Rail Mount Fuse Holder for NH0, 3-Pole, 690V AC TD00-DI
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 690V ac |
| Brand | Eaton |
| Model | TD00-DI |
| Case Material | Polybutylene Terephthalate |
| Current Rating | 160A |
| Series | NH |
| Terminal type | Screw |
| Number of Poles | 3 |
| Rail Type | DIN 35 mm |
| Compatible Fuse Size | NH0 |
Key Features
- The 3-pole design supports multi-phase electrical connections.
- The fuse holder is rated for a current of 160 A, suitable for high load circuits.
- Constructed from durable Polybutylene Terephthalate material, enhancing insulation and longevity.
- Compatible with NH0 fuse size and suitable for DIN 35 mm rail mounting.
- Features screw terminals for reliable and easy wiring installation.
- Meets IEC 60269-1 and 2, plus VDE 0636-1 and 2 standards for safety and compliance.
- Rated for 690V AC, providing support for high voltage protection requirements.
- Offers IP20 protection rating ensuring safe enclosure installation.
Product Description
Eaton TD00-DI 160A Rail Mount Fuse Holder is engineered to provide secure and reliable fuse protection for electrical circuits requiring high current capacity up to 160 amperes and voltage up to 690V AC. Designed specifically to accommodate NH0 fuse links, the 3-pole rail mount fuse holder facilitates efficient multi-phase connections within industrial control panels and automation systems.
Manufactured from robust Polybutylene Terephthalate (PBT), this fuse holder offers excellent insulation properties combined with durability, ensuring safety against electrical and mechanical wear. The device mounts easily onto a DIN 35 mm rail, simplifying installation and maintenance in diverse electrical environments.
The use of screw terminals enhances installation security by providing firm and stable wiring connections, reducing risk of disconnections under vibration or load stress. Compliant with international standards IEC 60269-1 and 2 as well as VDE 0636-1 and 2, the product guarantees trustworthy operation and regulatory adherence in critical industrial applications.
The fuse holder supports an IP20 enclosure rating, protecting access to live parts while allowing for straightforward inspection and replacement of fuses. It is built to perform reliably across a broad temperature spectrum from -20°C operational to -40°C storage, fitting various climate conditions in commercial and industrial settings.
The 3-pole design enables integration of multiple phase electrical circuits. Supports industrial power distribution and high voltage electrical systems. Compatible with NH00 fuse links for versatile circuit protection. DIN rail mounting facilitates quick installation and easy maintenance routines.
Polybutylene Terephthalate construction offers high insulation and mechanical strength. Screw terminals provide secure and convenient wiring connections. Compliance with IEC and VDE standards assures product reliability and safety.
IP20 rating limits access to hazardous parts in appropriate enclosures. Wide operating and storage temperature ranges enable usage in diverse environments.
This Eaton rail mount fuse holder is a critical component for electrical engineers and technicians requiring dependable fuse protection with convenient installation features. Its robust design suits applications in industrial panels, power distribution systems, and automation controls that demand high current and voltage capabilities.
Browse the Fuse Holders & Accessories category at EnvMart for additional Eaton products and compatible electrical components to support your industrial and commercial power safety requirements.
Explore more products in our Fuse Holders & Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 160A, suitable for high load circuits.
It is rated for a maximum voltage of 690V AC, providing support for high voltage protection requirements.
It features screw terminals for reliable and easy wiring installation, ensuring secure connections.
The fuse holder is constructed from Polybutylene Terephthalate (PBT), which enhances insulation and durability.
This unit has a 3-pole design, supporting multi-phase electrical connections.
It is designed for DIN 35 mm rail mounting, facilitating easy installation.
It is compatible with NH0 fuse size, allowing for versatile circuit protection.
It meets IEC 60269-1 and 2, plus VDE 0636-1 and 2 standards for safety and compliance.
It offers an IP20 protection rating, ensuring safe enclosure installation while limiting access to live parts.
This fuse holder operates within a temperature range of -20°C to +40°C, with a storage range down to -40°C.
It is suitable for use in industrial control panels, power distribution systems, and automation controls that require high current and voltage capabilities.
The country of origin for this product is China.
