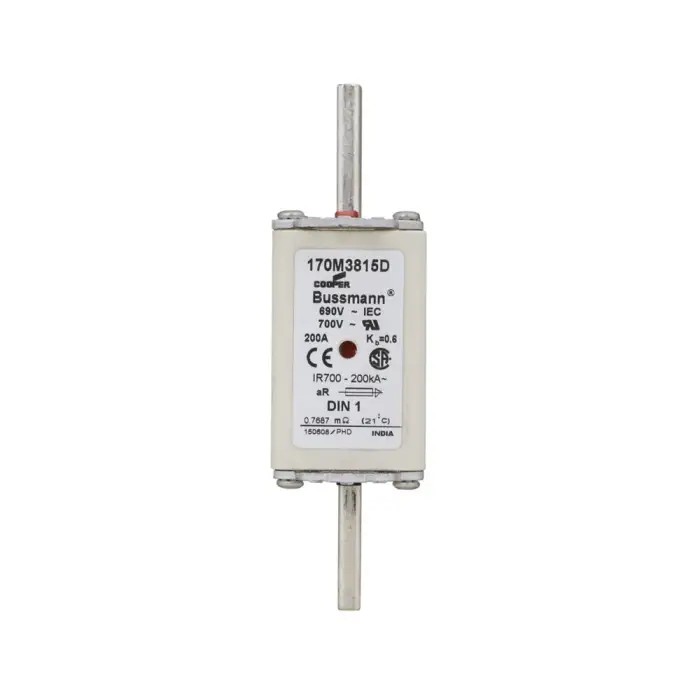

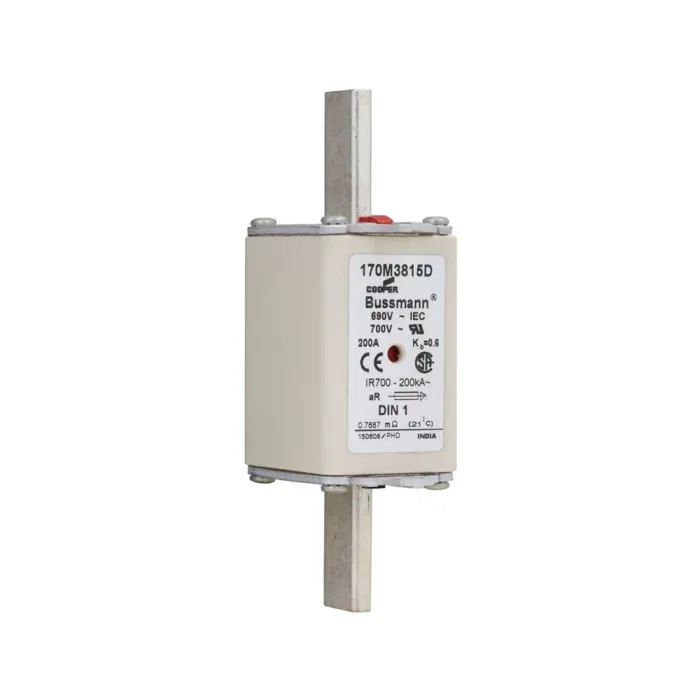

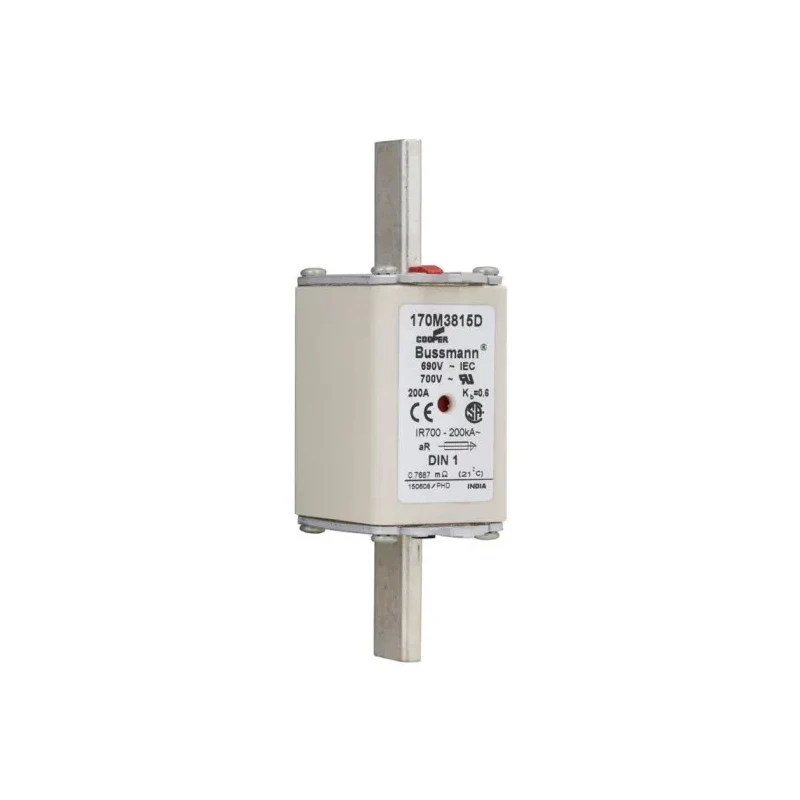

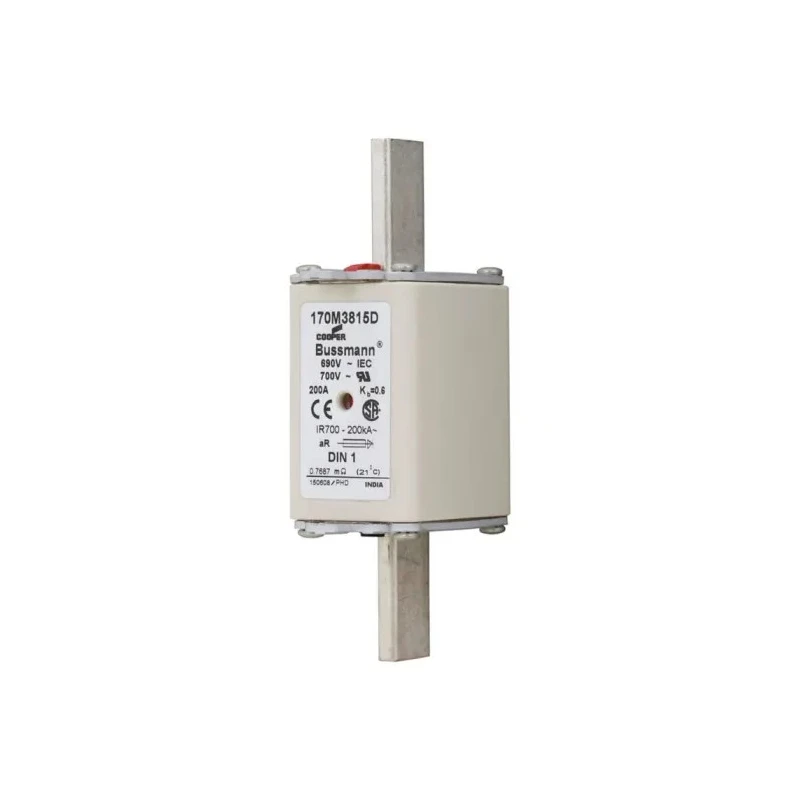

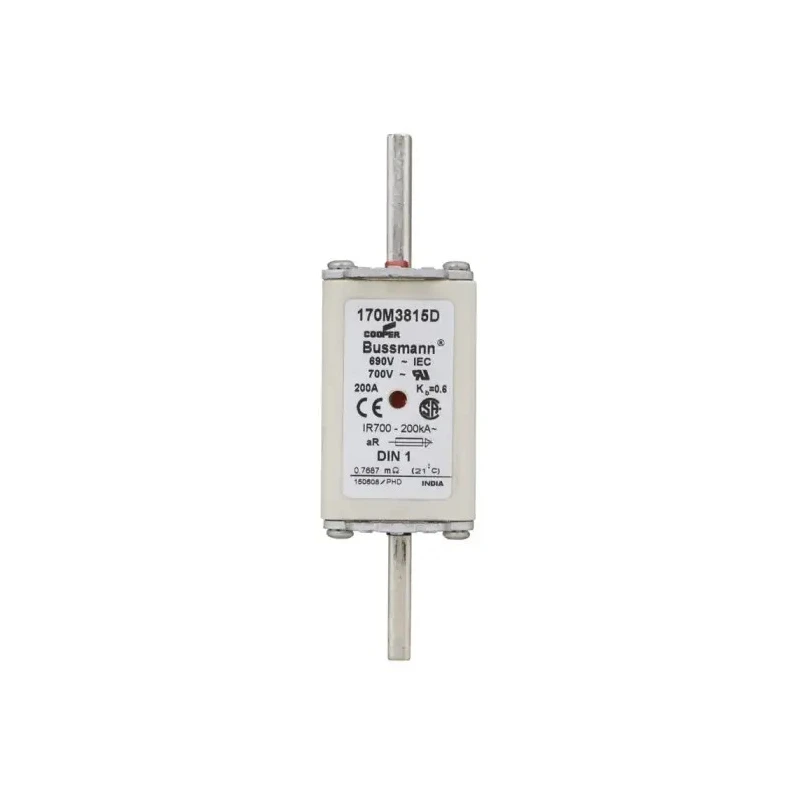

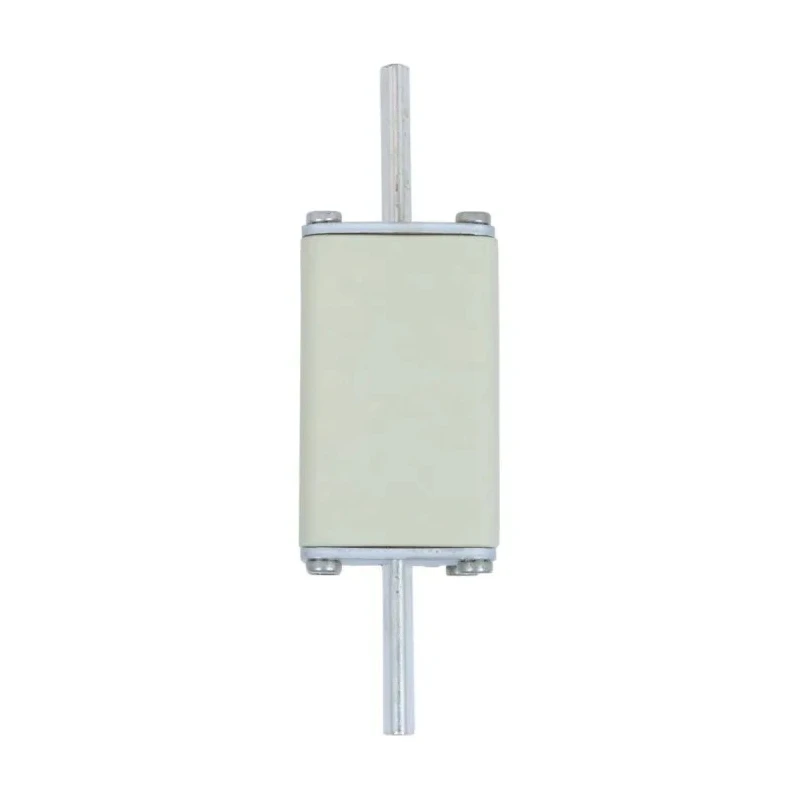

Eaton 200A Centred Tag Fuse NH1 690V Fast Acting High Rupture Capacity aR Application 170M3815D

Eaton 170M3815D centred Tag Fuse is a high-performance electrical component designed for industrial and electrical applications requiring reliable protection and fast response. This fuse has a current rating of 200 amperes and is sized as NH1, suitable for standard fuse holders and compatible with high voltage systems up to 690 volts.

The fast acting nature of this fuse allows it to quickly interrupt electrical faults, protecting sensitive semiconductor devices and other industrial equipment. Its high rupture capacity ensures safe operation even under extreme fault conditions.

Featuring a blade-type centred tag design with a 20mm tag width, it facilitates straightforward installation and maintenance. The dual indication mechanism clearly signals fuse status to operators, aiding in timely service and replacement.

This Eaton fuse complies with international IEC 60269 standards and has certifications including CE, CSA, and UL, guaranteeing quality and safety. It is specifically rated for aR applications, making it particularly suited for semiconductor circuit protection, DC drives, power converters, and industrial automation systems.

The fuse dimensions are compact with an overall length of 135mm, height of 68mm, and width of 40mm, fitting standard fuse blocks and holders designed for NH1 size. Manufactured in India by Eaton (formerly known as Bussmann), this fuse combines quality, durability, and safety for critical industrial electrical systems.

Fast acting fuse ensures efficient protection of electrical equipment. Rated current of 200 amperes for industrial use. Compact NH1 size compatible with standard installations. Operating voltage of 690 volts suitable for high voltage systems.

Dual indication fuse status for clear operational monitoring. Blade-type tag design with 20mm tag width for easy installation. High rupture capacity enhances safety in fault conditions. Compliant with IEC 60269 standards and certified by CE, CSA, UL.

Designed for aR applications, ideal for semiconductor protection. Compact dimensions: overall length 135mm, height 68mm, width 40mm.

This fuse is ideal for industrial electrical engineering, semiconductor protection circuits, DC bus systems, and power rectification applications. Eaton’s 170M3815D provides reliable, high-quality fuse protection for demanding industrial and commercial settings. Explore the full range of Eaton fuses and related electrical protection products on EnvMart for comprehensive system safety solutions.
