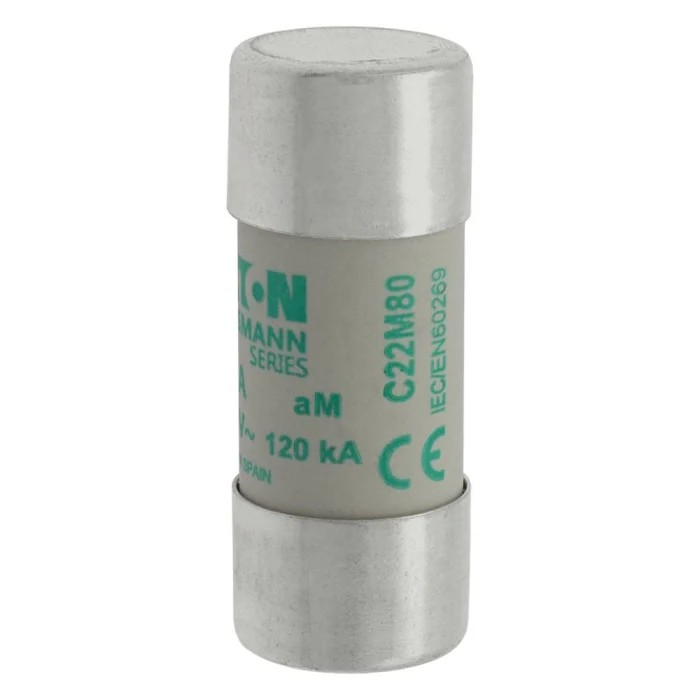

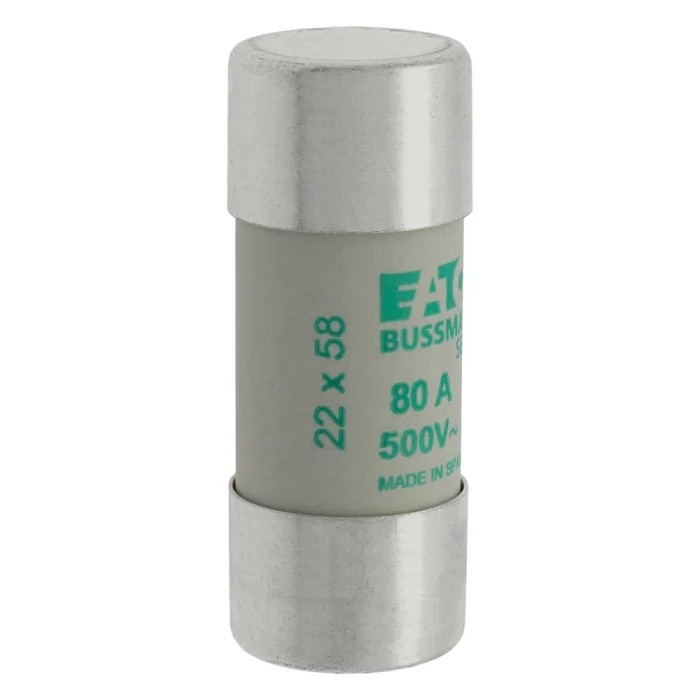

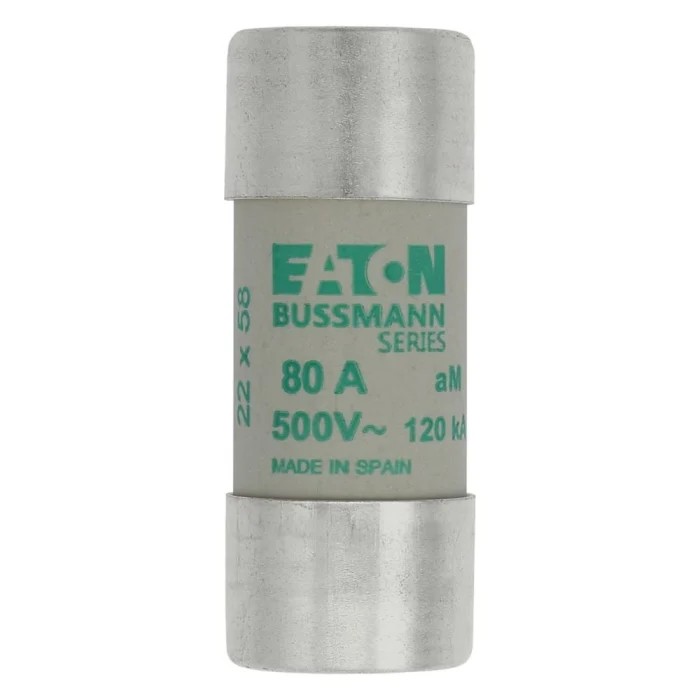

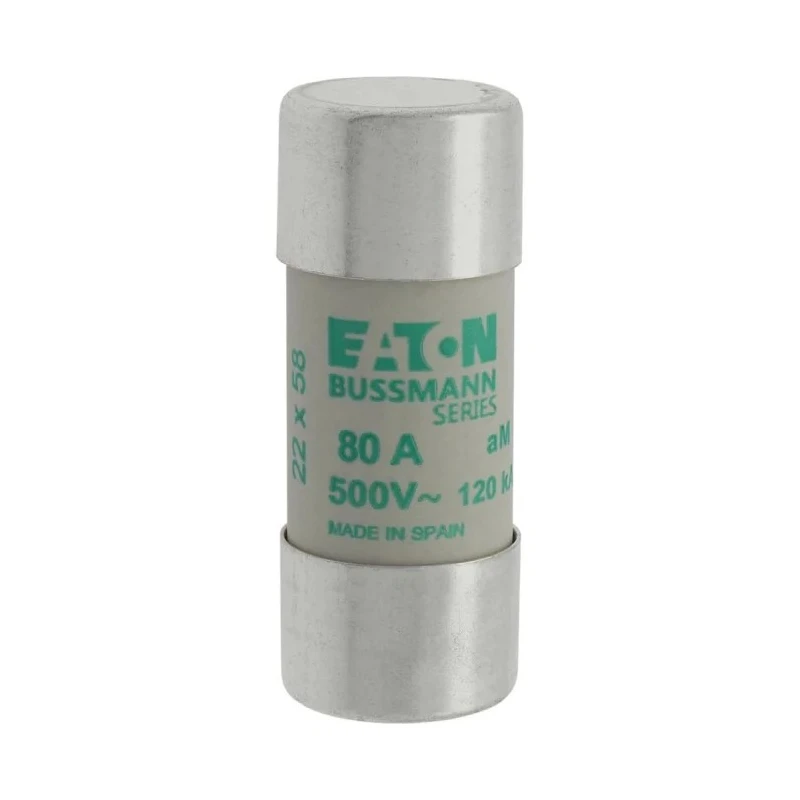

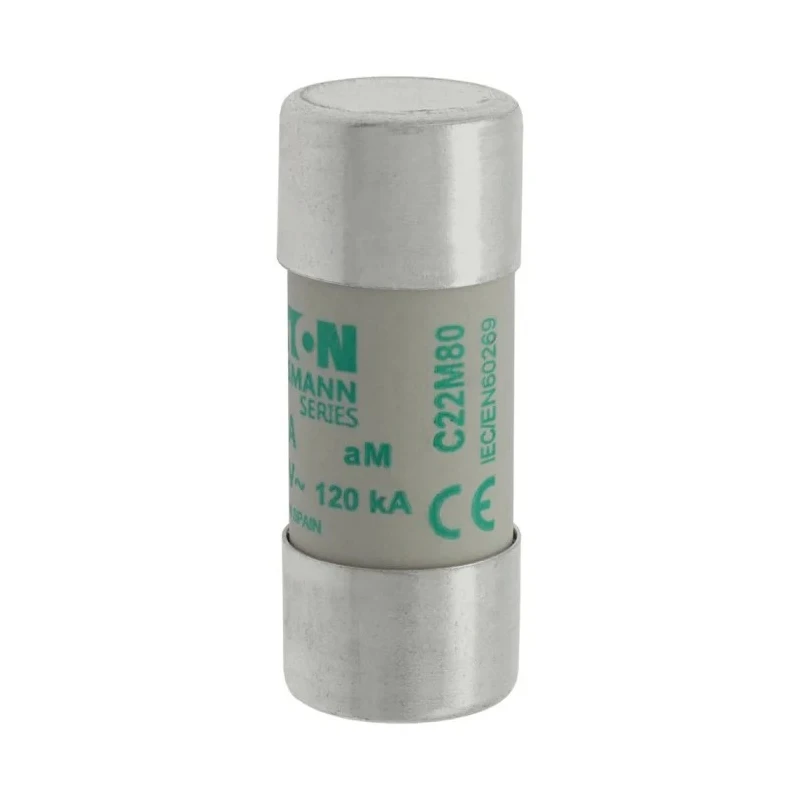

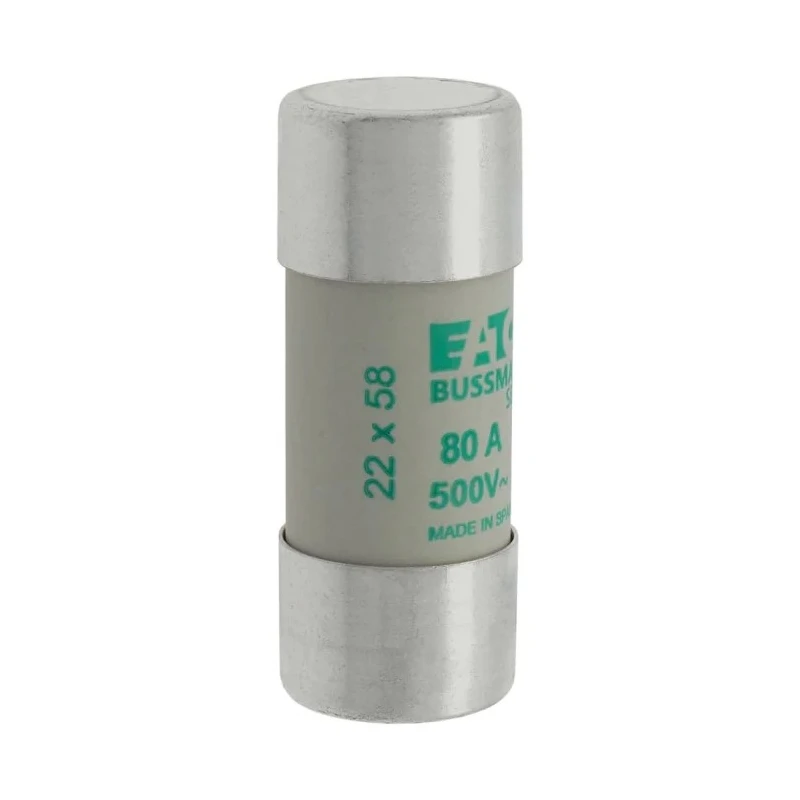

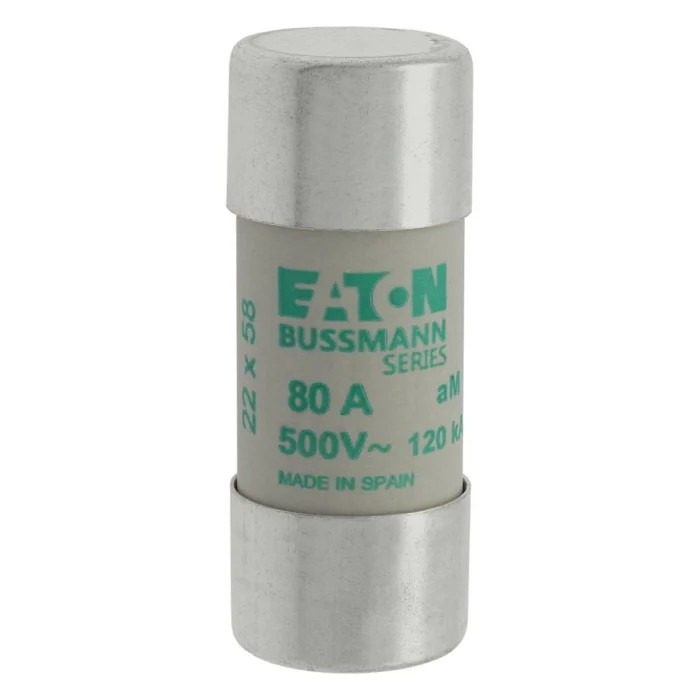

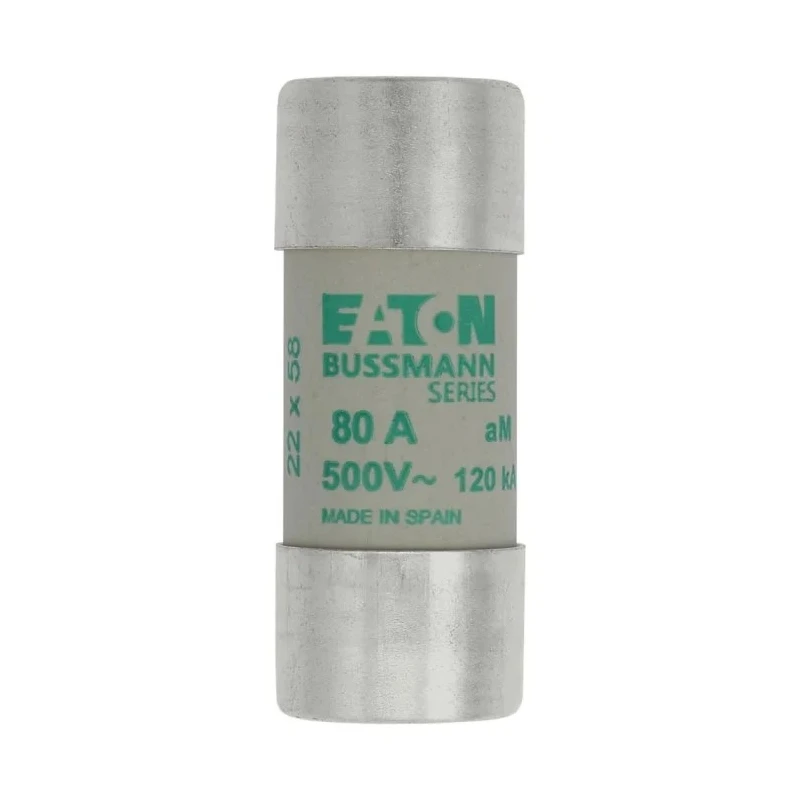

Eaton 80A AM Ceramic Cartridge Fuse, 22 x 58 mm, 500V AC, aM Fuse Characteristic C22M80

Eaton C22M80 Ceramic Cartridge Fuse rated at 80A and designed for motor circuit overcurrent protection operates at 500V AC. This fuse belongs to the C22 series and features a durable ceramic body that ensures excellent dielectric strength and thermal endurance for reliable performance in industrial and motor applications.

The fuse size is 22 x 58 mm with an overall length of 58 mm and a diameter of 22 mm, making it compatible with common cylindrical fuse holders. Its aM characteristic provides a high-speed fuse response tailored for motor protection, allowing normal motor starting currents while clearing severe short-circuit faults efficiently.

This Eaton fuse meets international standards such as IEC 60269 and bears CE marking, indicating compliance with European safety standards. It also holds GOST R certification for use within applicable jurisdictional markets and adheres to RoHS directives for environmental safety compliance.

Common applications include protection of motor starters, contactors, and motor circuits within industrial automation control panels and power distribution assemblies. It supports reliable safeguarding of electrical drives and industrial machinery requiring designated motor protection.

Rated for 80A current for circuit protection against overloads and faults. 500V AC voltage rating suitable for various industrial installations. Ceramic housing enhances durability and heat dissipation capabilities. aM speed characteristic adapted for motor circuit protection.

Standard 22 x 58 mm cylindrical fuse size for versatile mounting. Compliant with IEC 60269, CE, RoHS, and GOST R standards. Suitable for use in motor circuits, automation control, and manufacturing systems. Explore more Eaton electrical protection components and circuit breakers on EnvMart for industrial and commercial applications.
