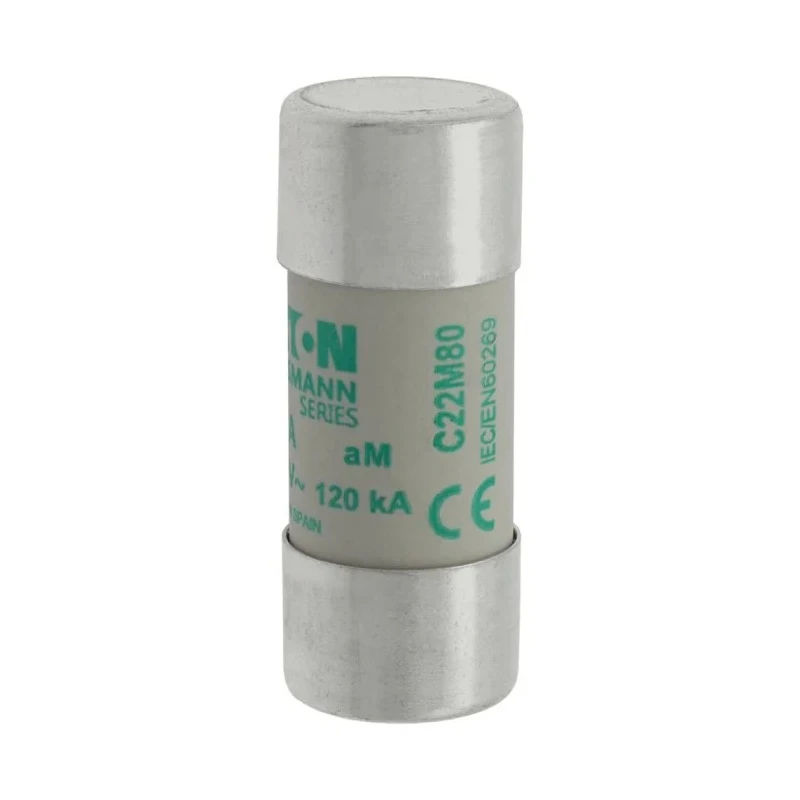

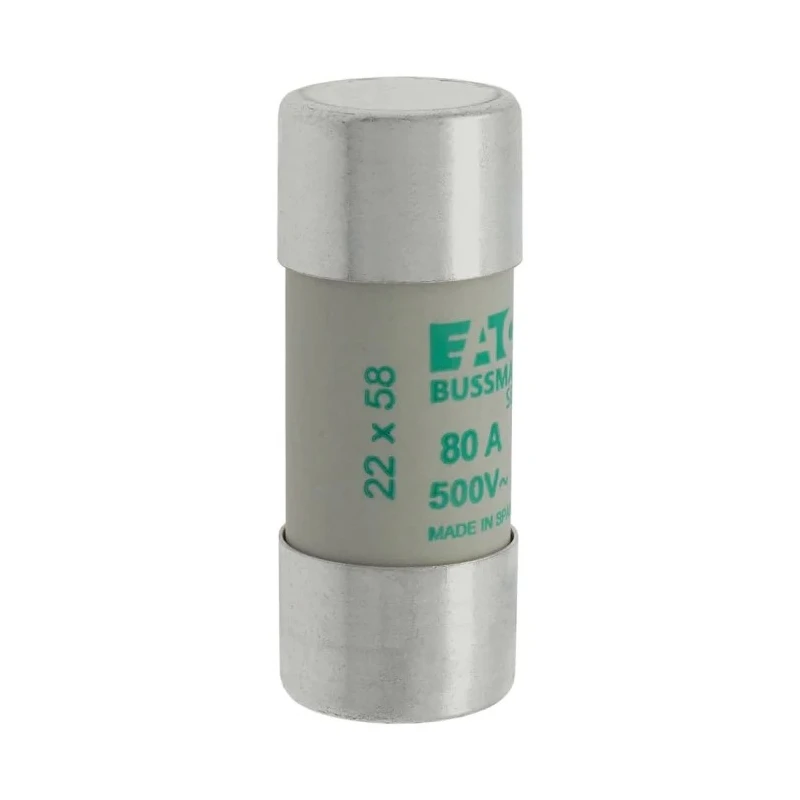

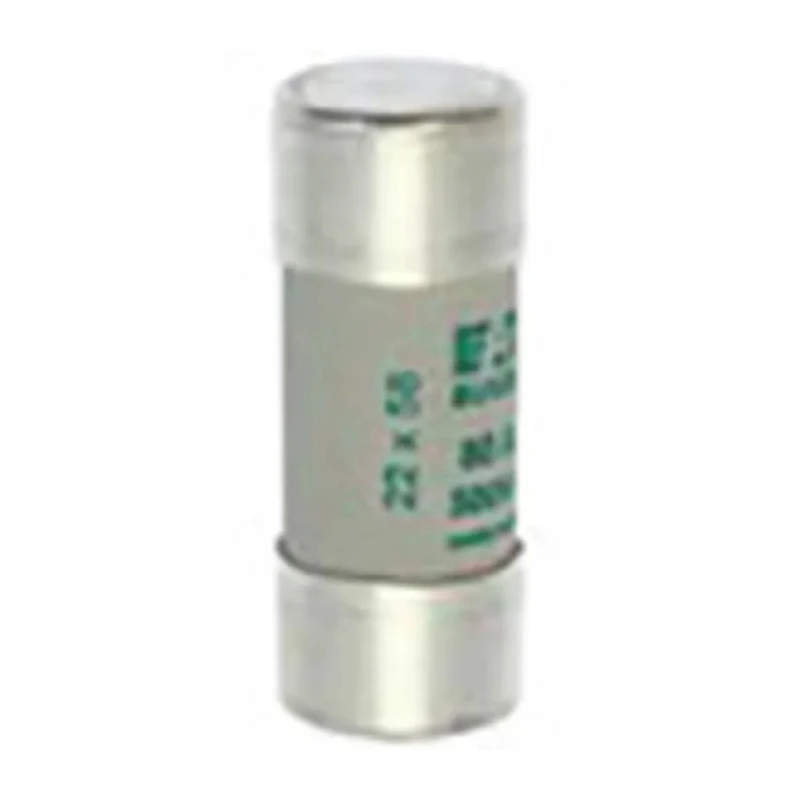

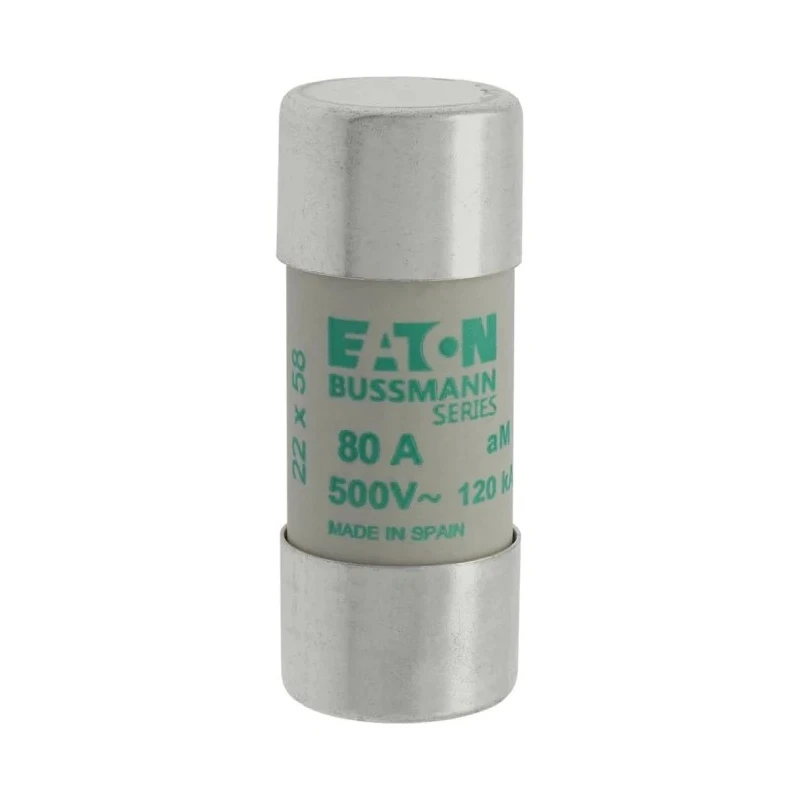

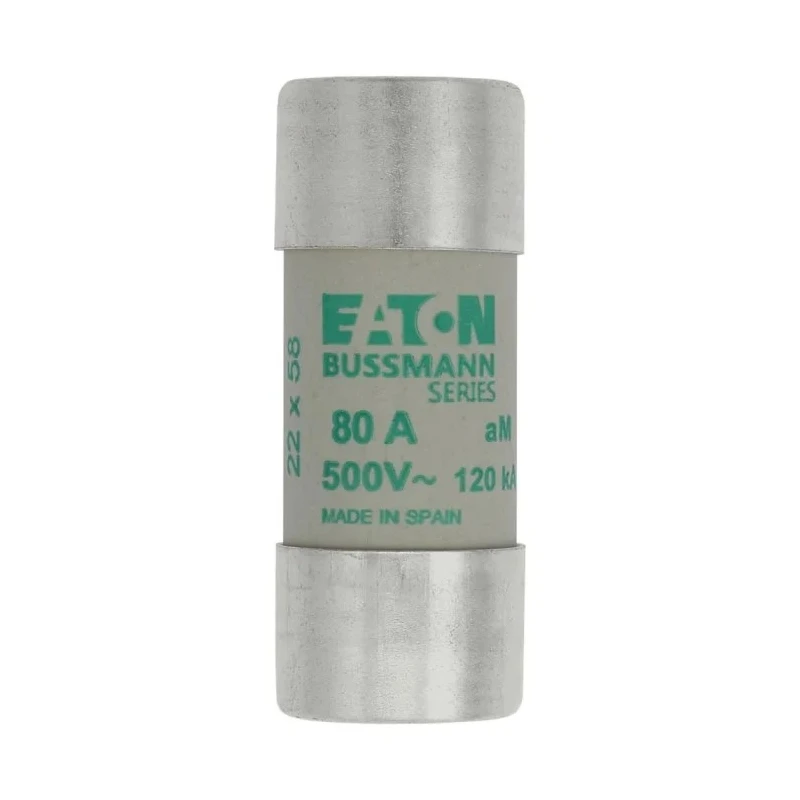

Eaton 80A AM Ceramic Cartridge Fuse 22 x 58 mm 500V AC C22M80
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Diameter | 22mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | C22M80 |
| Overall Length | 58mm |
| Current Rating | 80A |
| Series | C22 |
| Standards/Approvals | CE, GOST R, IEC 60269, RoHS |
| Fuse Characteristics | aM |
| Fuse Size | 22 x 58 mm |
| Application Category | aM |
| Eaton 80A AM Ceramic Cartridge Fuse, 22 x 58 mmBrand | Eaton |
Key Features
- Rated for 80 amps to protect circuits from excessive current draw.
- Operates at 500 volts AC suitable for medium-voltage applications.
- Ceramic body ensures high dielectric strength and heat endurance.
- aM fuse characteristic designed for motor circuit protection against short circuits.
- High rupturing capacity clears fault currents safely.
- 22 mm diameter compatible with common cylindrical fuse holders.
- Complies with IEC 60269 standards and has CE, GOST R, and RoHS certifications.
- Ideal for motor starters, contactors, and industrial automation control panels.
Product Description
Eaton C22M80 is an 80 ampere aM ceramic cartridge fuse measuring 22 mm in diameter and 58 mm in length, rated at 500 volts AC. It is designed to provide superior overcurrent and short circuit protection in motor and industrial control circuits.
This fuse features a robust ceramic body which enhances its dielectric strength and ability to withstand high temperatures during fault conditions, ensuring reliable performance and longevity.
The aM fuse characteristic denotes high-speed performance to clear severe short-circuit faults effectively while allowing normal motor starting currents. Such characteristics make it ideal for safeguarding motor starters, contactors, and drives.
Conforming to IEC 60269 international standards, it carries CE marking for European markets, GOST R certification for Russian compliance, and RoHS certification indicating compliance with environmental directives.
The fuse’s physical length of 58 mm allows easy installation in standard cylindrical fuse holders, with a 22 mm diameter ensuring compatibility. Rated for 80 amperes current protection. Ceramic body construction for enhanced durability and heat resistance.
aM fuse type for motor protection applications. 500V AC voltage rating suitable for medium-voltage circuits. High rupturing capacity for safe fault clearing. Complies with IEC 60269, CE, GOST R, and RoHS standards. Ideal for motor starters, contactors, and industrial automation panels.
This Eaton Cartridge Fuse is widely used in industrial automation, manufacturing plants, motor circuit protection, and power distribution systems. Its design ensures compliance with multiple international standards, making it suitable for diverse regional markets and applications.
Explore other protective electrical components and fuses in the Electronics & Electricals category at EnvMart for professional-grade industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton C22M80 fuse has a current rating of 80 amps, designed to protect circuits from excessive current draw.
This cartridge fuse is rated for 500 volts AC, making it suitable for medium-voltage applications.
The fuse measures 22 mm in diameter and 58 mm in length, allowing compatibility with standard cylindrical fuse holders.
The body of the Eaton C22M80 fuse is made from ceramic, which enhances its dielectric strength and heat endurance.
This model features an aM fuse characteristic, which is designed for motor circuit protection against short circuits.
It complies with IEC 60269 standards and has CE, GOST R, and RoHS certifications, ensuring it meets various international regulations.
This fuse is ideal for use in motor starters, contactors, and industrial automation control panels.
The Eaton C22M80 has a high rupturing capacity, which allows it to safely clear fault currents during operation.
The country of origin for this fuse is India.
The ceramic body provides high dielectric strength and heat endurance, which enhances the fuse's reliability during fault conditions.
The overall length of this fuse is 58 mm, which is standard for its type.
The application category for this fuse is aM, indicating its specific use in motor protection applications.
