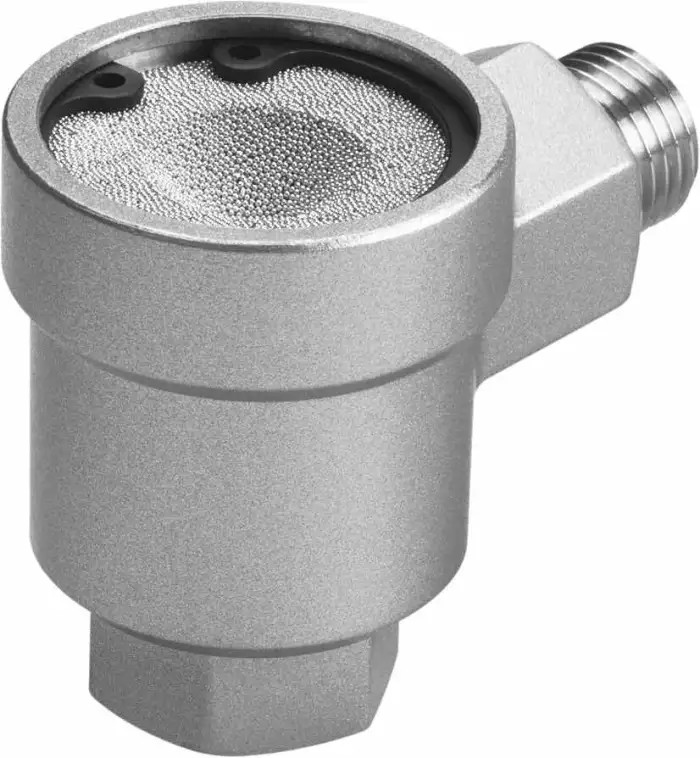

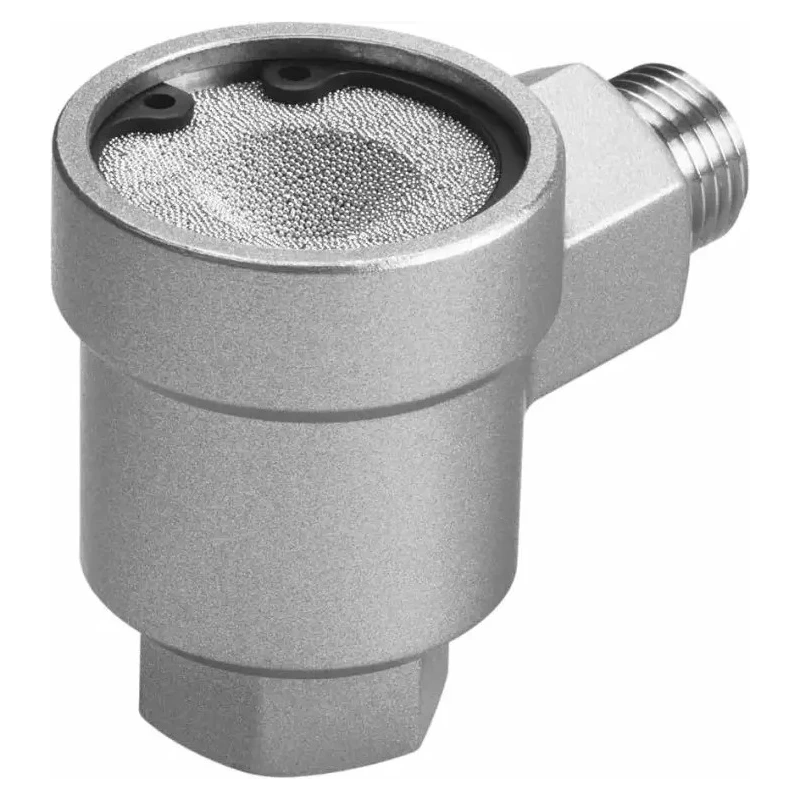

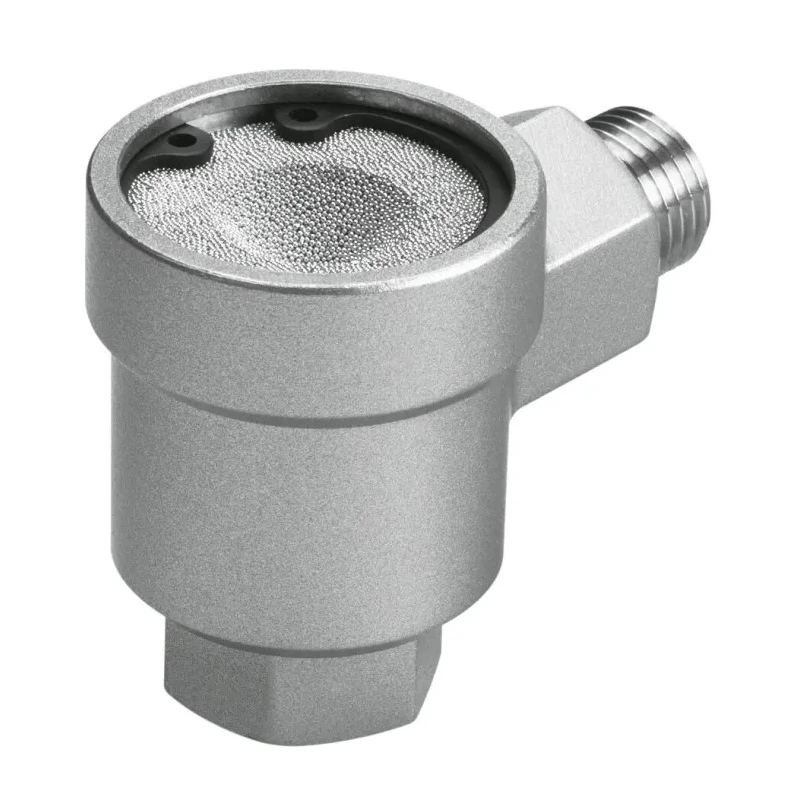

Festo Quick Exhaust Valve 10 bar Maximum Operating Pressure Die Cast Zinc Housing SEU-1/4

Festo SEU-1/4 Quick Exhaust Valve is engineered for high-performance pneumatic systems, providing rapid evacuation of compressed air to accelerate actuator return times. It supports a maximum operating pressure of 10 bar with a robust die cast zinc housing ensuring longevity and resistance in industrial environments.

This valve operates ideally across a broad pressure range of 0.5 to 10 bar and functions reliably in temperatures from -20°C to 75°C. The integrated silencer reduces noise during exhaust operation down to 85 dB(A), contributing to quieter industrial settings.

Designed for 1/4 inch threaded male (A) and female (B) connections, the SEU-1/4 quick exhaust valve can be easily installed inline and positioned in any orientation without affecting performance. Compatibility with both lubricated and non-lubricated compressed air expands its usability across various pneumatic applications.

The valve utilizes NBR seals, which offer excellent compatibility with compressed air and common lubricants, thus maintaining effective sealing under specified temperature conditions. It is perfect for use in automation systems to speed pneumatic cylinder venting, enable safer machine operation through quick depressurization, and optimize cycle times in air-powered tooling.

Additional applications include conveyor start/stop systems requiring rapid exhaust and pneumatic control islands where compactness and efficiency are critical. The valve also features a high nominal exhaust flow approximately 1100 l/min with peak exhaust flow reaching 2300 l/min from 6 bar to atmosphere.

Enables faster cylinder return with high exhaust capacity. Operates reliably between 0.5 to 10 bar system pressure. Supports temperature ranges from -20°C to 75°C for versatile applications. Incorporates an integrated silencer reducing exhaust noise to 85 dB(A).

Compatible with lubricated and non-lubricated compressed air. Features durable die cast zinc construction for mechanical resistance. Suitable for threaded 1/4 inch male and female pneumatic connections. Can be installed in any orientation without performance loss.

Uses NBR seals for effective sealing and lubricant compatibility. Ideal for automation, machine safety, air-powered tooling, and fast exhaust needs. Discover more Pneumatic Valves suited for industrial, manufacturing, and automation systems on EnvMart.
