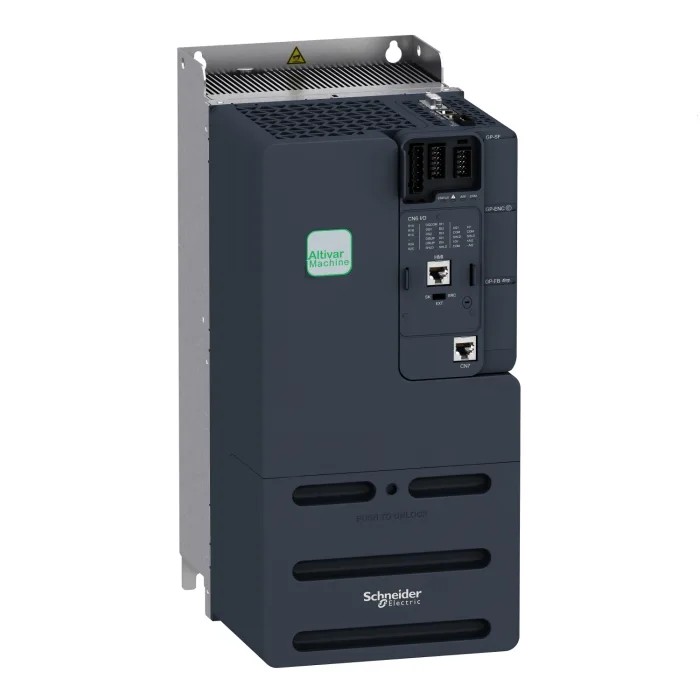

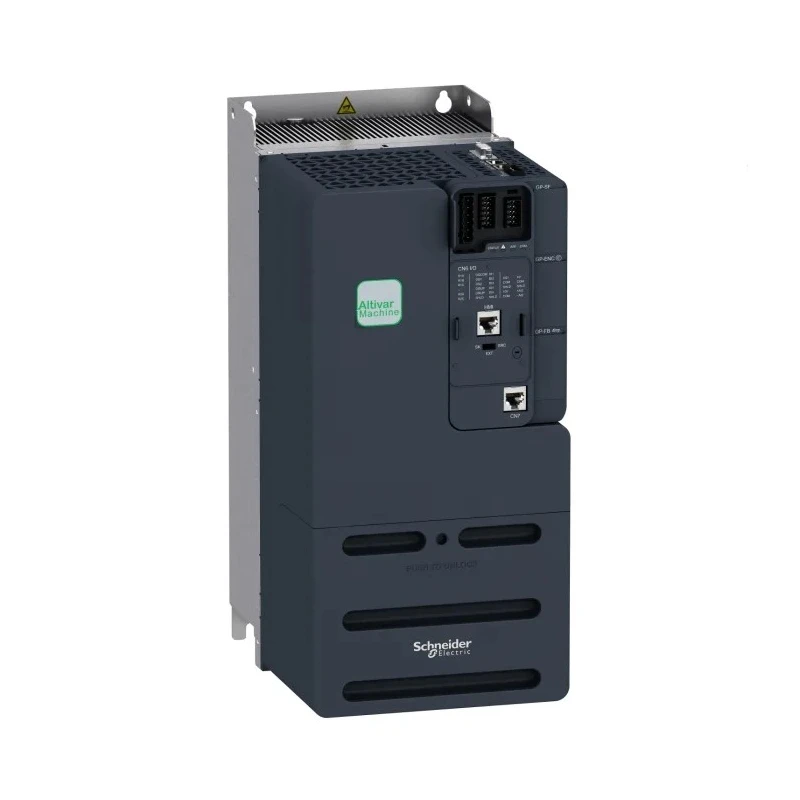

Schneider Electric Inverter Drive 22 kW 3 Phase Altivar Series 480V 63.5 A ATV340D22N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340D22N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 180mm |
| Series | Altivar |
| Overall Width | 249mm |
| Power Rating | 22kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 63.5A |
| Standards/Approvals | CE, C-Tick, EAN, REACH, UL, TUV, EAC, RoHS, CSA, IEC |
| Maximum Supply Voltage | 480V |
| Overall Depth | 385mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- Designed for harsh environments with shock, vibration, and non-conductive dust resistance.
- Supports synchronous and asynchronous motors with open and closed loop control.
- Operating temperature range from 0°C to 50°C, with 60°C tolerance with derating.
- Integrated Modbus communication protocol and Ethernet option available.
- Includes safety functions such as STO and meets multiple international standards including IEC, CE, UL, and CSA.
- Ideal for packaging, material handling, material working, and hoisting applications.
- Supports expansion modules including encoder interface, I/O, braking resistors, and communication modules.
- Mounting is vertical position with four fixing holes for cabinet installation.
Product Description
Schneider Electric ATV340D22N4 Inverter Drive is a heavy-duty Altivar 340 variable speed drive designed for feeding 3-phase synchronous and asynchronous motors in industrial and automation settings.
This drive delivers a rated power of 22 kW (30 hp) and operates on a voltage range of 380V to 480V AC with a maximum output current of 63.5 A. It is engineered to withstand harsh environmental conditions such as vibration, shock, and non-conductive dust, with an operating temperature of up to 50°C standard, and 60°C with derating.
The drive incorporates standard Modbus serial line communication protocols with optional embedded Ethernet capabilities for advanced control and diagnostics. It is equipped with features for high performance in speed and torque control for synchronous and asynchronous motors, ensuring constant torque operation with overload capacities of 150% for 60 seconds and 180% for 2 seconds.
ATV340D22N4 meets comprehensive safety and EMC standards including IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and emissions, IEC 61508 functional safety, and certifications such as CE, UL, CSA, and TÜV.
Mount type is cabinet with secure vertical panel mounting enabled by four fixing holes. The product measures 180mm in width, 385mm in height, and 249mm in depth, with an IP20 rating for protection against solid objects.
This inverter drive integrates seamlessly with Schneider Electric’s EcoStruxure Machine architecture via DTM software bricks, compatible with SoMachine and SoMove software for configuration, control, and diagnostics.
It suits demanding applications including packaging machinery, material handling, working processes, and hoisting systems. Optional accessories are available such as encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, and additional EMC filters tailored to specific drive ratings.
Designed for industrial applications requiring robust variable speed motor control. Supports multiple communication protocols for flexible integration. Enhanced machine performance via embedded PTI/PTO and master/slave functions.
Provides sustainable productivity with energy-saving Better World certification. Functional safety STO embedded for operator protection features.
For professionals seeking efficient and reliable Inverter Drives, Schneider Electric ATV340D22N4 represents a leading solution in power, control, and connectivity within the Altivar series.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340D22N4 inverter drive has a power rating of 22 kW (30 hp).
This model has a maximum output current of 63.5 A.
The operating temperature range is from 0°C to 50°C, with a tolerance of up to 60°C when derated.
It supports both synchronous and asynchronous motors, including permanent magnet and reluctance motors.
It incorporates standard Modbus communication protocols and offers an optional Ethernet interface for advanced control and diagnostics.
The dimensions of the ATV340D22N4 are 180 mm in width, 385 mm in height, and 249 mm in depth.
This inverter drive has an IP20 rating, providing protection against solid objects.
The ATV340D22N4 is designed for cabinet mounting in a vertical position, secured by four fixing holes.
It meets multiple international standards including IEC, CE, UL, CSA, and IEC/EN 61800-5-1 for safety and EMC compliance.
This inverter drive is ideal for applications in packaging, material handling, material working, and hoisting systems.
The output frequency range for the ATV340D22N4 is from 0.1 Hz to 599 Hz.
Optional accessories include encoder interface modules, I/O expansion modules, communication modules, and braking resistors.
