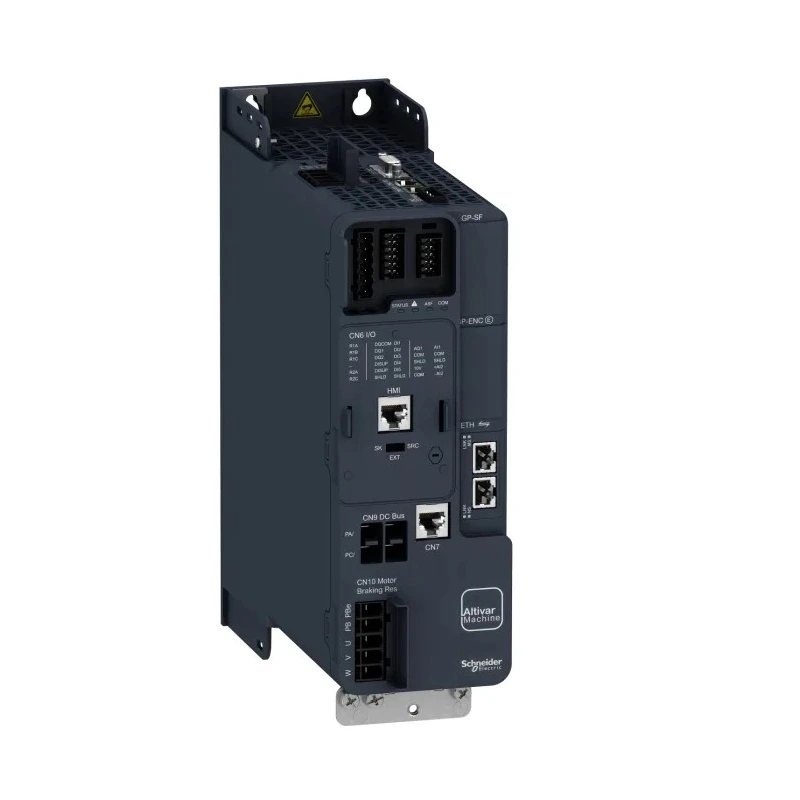

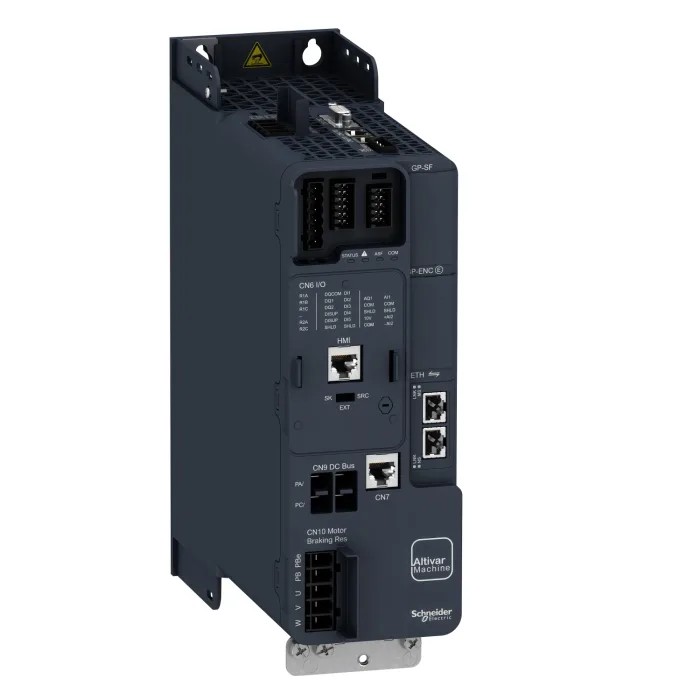

Schneider Electric Inverter Drive, 750 W, 3 Phase, Altivar Series, 480 V, 3.4 A ATV340U07N4E

Schneider Electric ATV340U07N4E is a high-performance Inverter Drive designed for industrial and automation applications. It delivers 750 W of power with a 3 phase input, suitable for Altivar Series motors operating at 480 V supply voltage and a maximum output current of 3.4 A. This inverter drive offers advanced variable speed control, enhancing machine performance and efficiency in speed or torque control applications for both synchronous and asynchronous motors.

The unit features expansion slots that allow the integration of Encoder, input/output modules, and fieldbus communications to increase functionality. An embedded Ethernet option is available for enhanced connectivity and networked system control. It supports constant torque operation with overload capabilities of 150% for 60 seconds and 180% for 2 seconds, ensuring reliability under demanding load conditions.

Designed for cabinet mounting, the drive is IP20 rated for protection against solid objects and operates safely in temperatures ranging from 0°C to 50°C, with derating possible at higher temperatures. The product supports reluctance and permanent magnet motors, offering flexibility in various industrial setups. It includes embedded functional safety features such as safe torque off (STO) and an embedded web server to facilitate remote monitoring and diagnostics.

The accessibility is enhanced by optional full text or graphic keypads allowing clear and user-friendly control. The inverter complies with stringent standards including IEC, UL, REACH, EAN, C-Tick, TUV, RoHS, CE, EAC, and CSA, guaranteeing safety, environmental responsibility, and industry conformity.

The physical dimensions of the drive are approximately 85 mm in length, 232.5 mm in width, and 270 mm in depth, making it compact and suitable for various industrial installations. This inverter drive contributes to energy savings and sustainable productivity, aligning with Schneider Electric's Better World initiative aimed at reducing environmental impact.

Applications include industrial automation systems, manufacturing equipment, HVAC motor control, and other machinery demanding precise and adaptable motor drives. Its combination of robust build and advanced features makes it ideal for enhancing operational efficiency and control in demanding environments.

Explore the full range of Schneider Electric inverter drives and related automation control gear at EnvMart for optimized industrial solutions. Provides high performance in speed and torque control for synchronous and asynchronous motors.

Includes embedded Ethernet option and expansion slots for Encoder, I/O, and fieldbus communications. Supports constant torque rated operation with overload capacity of 150% for 60 seconds. Equipped with functional safety STO embedded feature and embedded web server.

Designed for cabinet mounting with IP20 rating and operates reliably between 0°C and 50°C. Compatible motor types include reluctance and permanent magnet motors. Offers optional full text or full graphic keypads for user interface.

Constructed to meet IEC, UL, REACH, EAN, C-Tick, TUV, RoHS, CE, EAC, and CSA standards. Dimensions approximately 85 mm length, 232.5 mm width, and 270 mm depth. Find reliable and efficient Inverter Drives including the ATV340U07N4E model by Schneider Electric at EnvMart.
