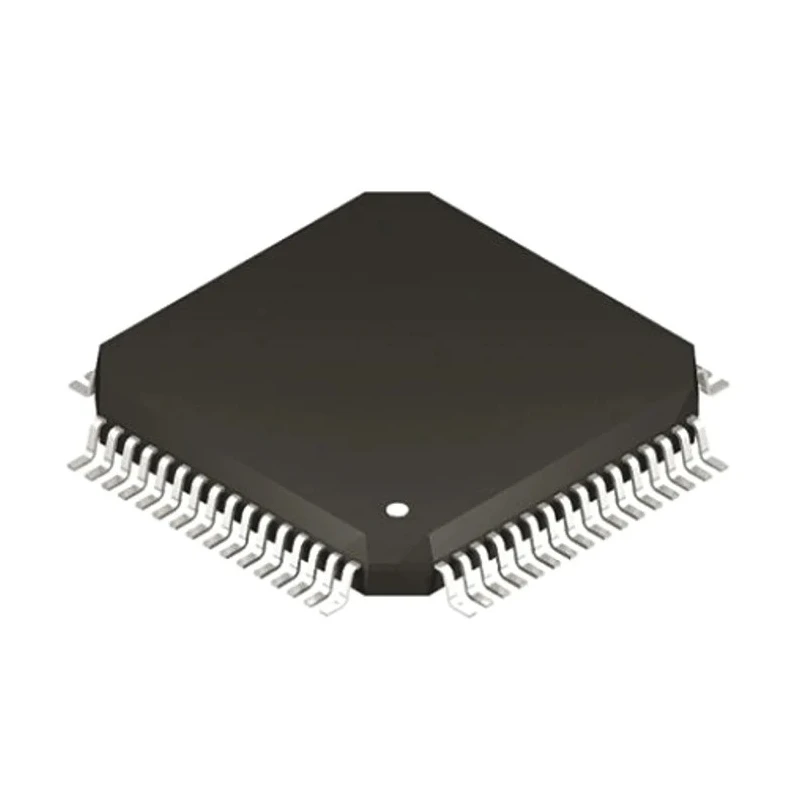

Microchip 16 bit dsPIC33EP Microcontroller 70 MHz, 64kB FLASH, 64-Pin TQFP DSPIC33EP64MC206-I/PT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | DSPIC33EP64MC206-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | DsPIC33EP |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Interface Type | QEI |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | dsPIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 70MHz |
| Number of Programmable I/Os | 53 |
| Analogue Comparators | 4 |
| Number of Timers | 5 |
| Instruction Set Architecture | Code Efficient |
| ADCs | 16 x 10/12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- Offers up to 70 MIPS performance with dsPIC33E core architecture.
- Includes 64kB program memory and 8kB RAM for robust application support.
- Features 53 programmable I/Os and multiple on-board peripherals.
- Operates within a voltage range of 3V to 3.6V suitable for embedded systems.
- Integrated 10/12 Bit ADCs with up to 16 channels for signal processing.
- Provides advanced peripherals including PWM, timers, UART, SPI, I2C, and CAN modules.
- Supports in-circuit serial programming and debugging for development efficiency.
- Designed to meet AEC-Q100 automotive standards ensuring reliability.
Product Description
The Microchip DSPIC33EP64MC206-I/PT is a high-performance 16-bit digital signal controller designed for industrial, automotive, and embedded applications. Operating at a maximum frequency of 70 MHz, this microcontroller integrates a dsPIC33E core architecture delivering powerful processing capabilities with up to 70 MIPS performance.
The device offers extensive on-chip memory, including 64kB of FLASH program memory and 8kB RAM, enabling complex application design. It features a comprehensive set of peripherals such as 53 programmable I/O pins, high-speed PWM, five 16-bit timers, two 32-bit timers, and multiple communication interfaces including UART, SPI, I2C, and ECAN modules. The microcontroller also supports advanced analog integration with 16 channels of 10/12 bit ADCs, four analog comparators, and an operational amplifier, enhancing its capability for signal processing and control tasks.
This model supports multiple safety and reliability features including Power-On Reset (POR), Brown-Out Reset (BOR), Watchdog Timer (WDT), and High/Low-Voltage Detection (HLVD) modules, making it suitable for automotive and industrial environments. It is compliant with AEC-Q100 automotive standards and RoHS directives.
With a compact 64-Pin TQFP package measuring 12 mm x 12 mm x 1.05 mm, the DSPIC33EP64MC206-I/PT supports surface mount technology for efficient PCB integration. The microcontroller operates over a wide temperature range from -40°C to +85°C, ensuring durability under harsh conditions. Designed and manufactured in Thailand, this microcontroller is ideal for developing applications requiring precise timing, complex control, and robust communication.
Up to 70 MHz CPU speed delivering 70 MIPS performance. 64kB FLASH program memory with 8kB RAM. Multiple communication protocols: UART, SPI, I2C, ECAN. Integrated 10/12 bit ADCs with 16 channels and analog comparators. Power management with POR, BOR, WDT and HLVD features.
Compliant with automotive AEC-Q100 and RoHS standards. 64-pin TQFP package with surface mount technology. Industrial operating temperature range (-40°C to 85°C).
This microcontroller is suited for industrial automation, automotive control systems, and embedded signal processing applications. Explore the Microchip range at EnvMart for more advanced Microcontrollers and accessories tailored to your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of the DSPIC33EP64MC206-I/PT microcontroller is 70 MHz.
It features 64kB of FLASH program memory, providing ample space for complex applications.
This microcontroller includes 53 programmable I/O pins for versatile interfacing options.
It supports multiple communication protocols including UART, SPI, I2C, and ECAN modules.
The operating voltage range is from 3V to 3.6V, making it suitable for various embedded systems.
It features integrated 10/12 bit ADCs with up to 16 channels for enhanced signal processing capabilities.
The microcontroller is housed in a 64-Pin TQFP package measuring 12 mm x 12 mm x 1.05 mm.
It operates effectively within a temperature range of -40°C to +85°C, suitable for harsh environments.
Yes, it is compliant with AEC-Q100 automotive standards, ensuring reliability for automotive applications.
It includes safety features such as Power-On Reset (POR), Brown-Out Reset (BOR), Watchdog Timer (WDT), and High/Low-Voltage Detection (HLVD).
The DSPIC33EP64MC206-I/PT is manufactured in Thailand.
This model has 8kB of RAM, supporting robust application performance.
