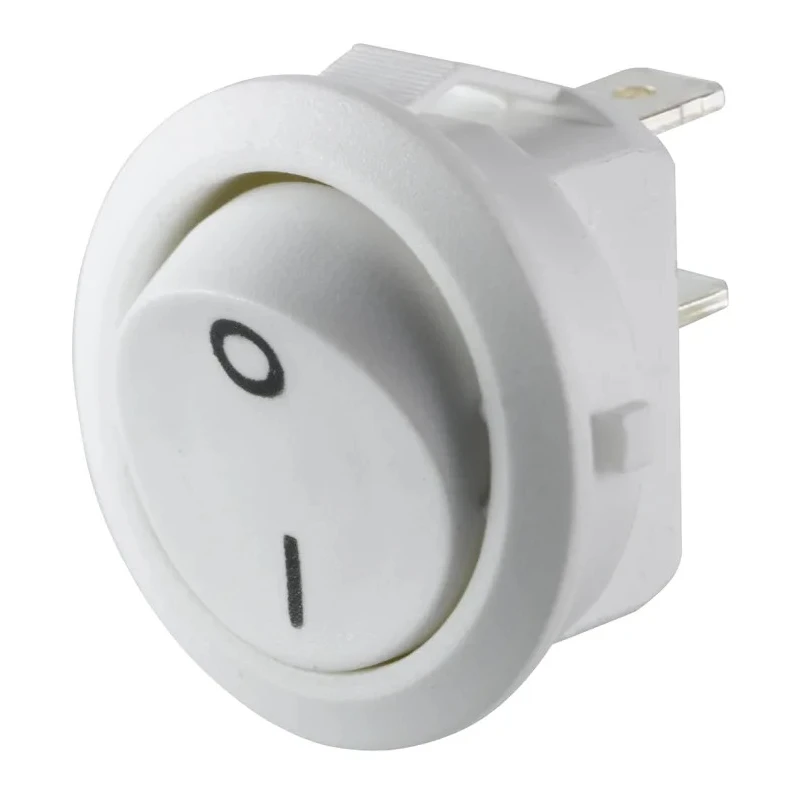

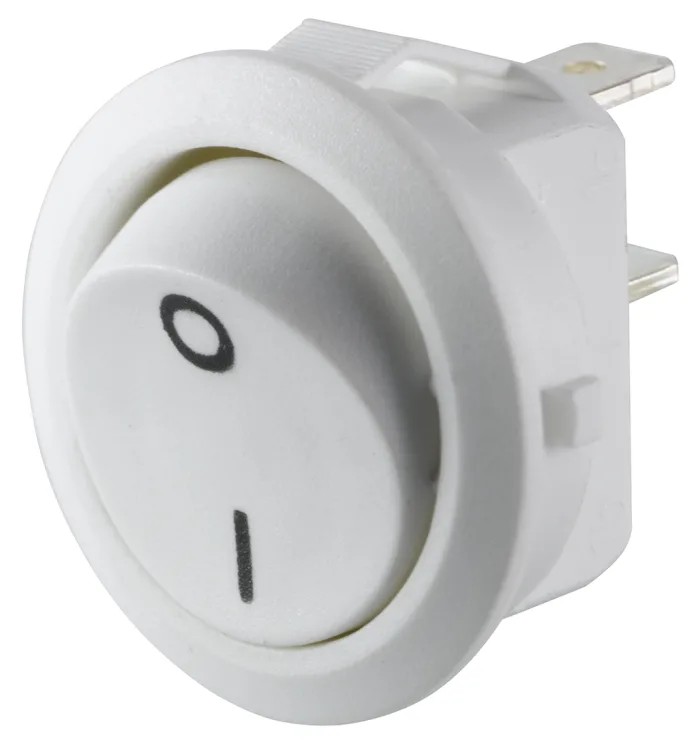

Marquardt SPST On-Off On-Off Rocker Switch Panel 01881.1105-01

Marquardt 01881.1105-01 SPST On-Off On-Off Rocker Switch Panel offers a rugged solution for industrial and commercial electrical control applications. This panel-mounted rocker switch features a durable polyamide housing, rated to UL 94 V-2, ensuring resistance to mechanical and environmental stresses. The switch is designed for Class II equipment and is perfect for use in electrical panels, security devices, air conditioning units, domestic appliances, and industrial machinery.

The switch supports a 12A contact current with a maximum DC voltage of 15V and AC voltage of 250V, providing a reliable switching performance. The quick connect terminals of 4.8 mm size facilitate easy wiring, and the 19.8 mm panel cut-out diameter allows for standardized mounting. The rocker actuator is ergonomically curved and finished in black with white ON-OFF legend for clear operational indication.

With IP40 ingress protection, this switch is shielded against solid objects greater than 1 mm, suitable for most panel environments. Its operational temperature range from -20°C to 85°C makes it viable for diverse ambient conditions. The mechanical life cycle is rated at 100,000 operations, highlighting its long service life. Compliance with global standards including CSA, RoHS, CE, UL, VDE, and ENEC ensures it meets rigorous industrial safety and quality requirements.

The 1881 series series by Marquardt is known for its easy snap-in installation and secure panel retention, promoting straightforward maintenance and repair of Class II appliances. The switch is non-illuminated and offers a single pole single throw (SPST) configuration with on-off operation. The IP40 rated enclosure permits usage in indoor and protected environments.

The switch is made with nylon 66 housing to UL 94 V-2 standards. High inrush current tolerance up to 70A for capacitive loads. Designed for secure snap-in panel mounting with a 20 mm diameter cutout. Available in various rocker colors; this model features a black actuator.

Suitable for use in industrial, commercial, and domestic electrical control applications. Connection via 4.8 mm quick connect terminals accommodates standard wiring practices. Mechanical durability ensures reliable operation over extended use cycles.
