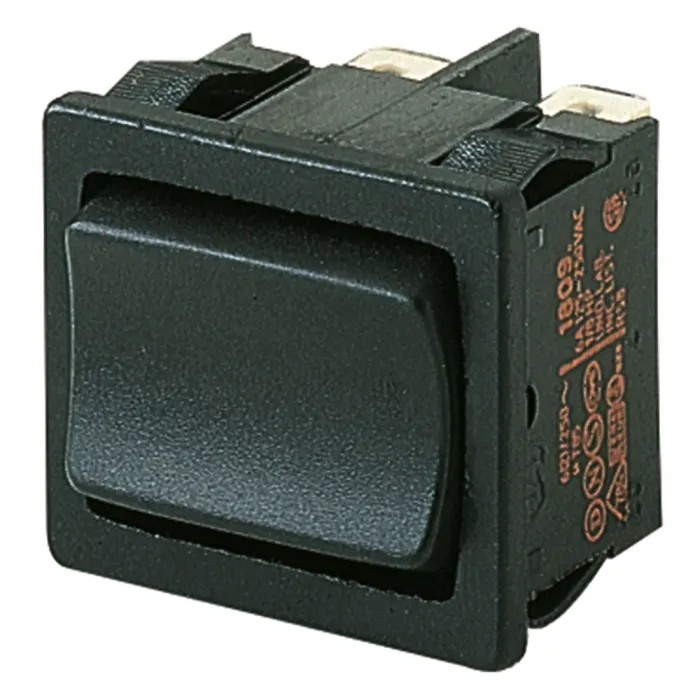

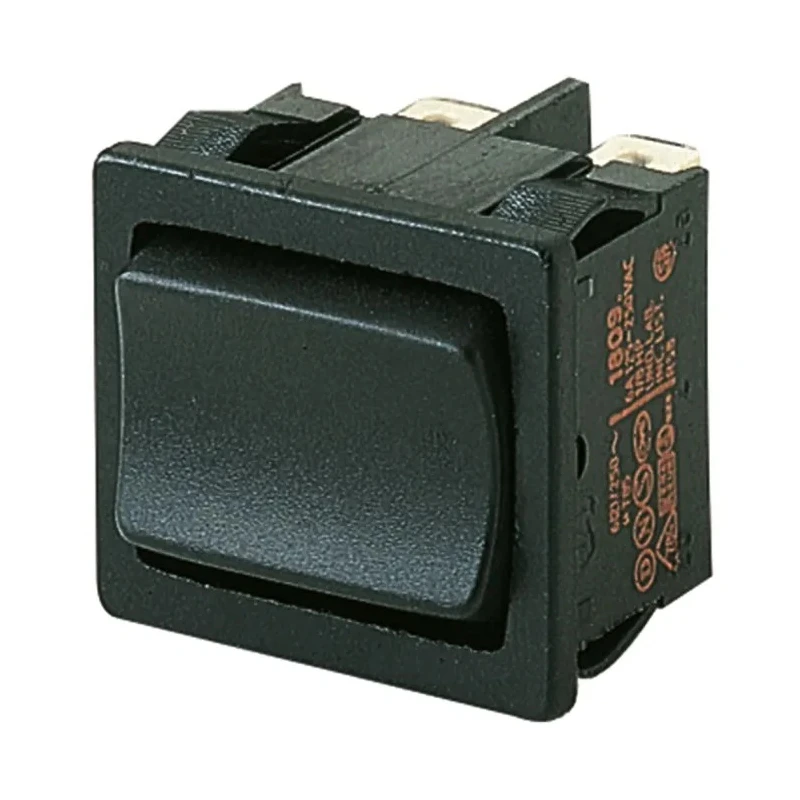

Marquardt DPDT On-Off-On (On)-Off-(On) Rocker Switch Panel 01809.1302-00
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Marquardt |
| IP Rating | IP40 |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 20.5 x 18.6 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | CE, CSA, ENEC, RoHS, UL, VDE |
| Switch Operation | On-Off-On |
| Actuator Colour | Black |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 6A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
Key Features
- The switch contacts are rated for 6A current ensuring reliable operation.
- The housing is made of durable polyamide material providing robust panel mounting.
- The panel cutout size is 20.5 x 18.6 mm enabling easy fitting in electrical enclosures.
- The switch features black actuator color and quick connect terminals for convenience.
- IP40 rating offers protection against solid objects larger than 1 mm but no water ingress protection.
- Operates in temperature range from -20°C to 100°C supporting varied environments.
- Suitable for 15V DC and 250V AC contact voltage applications with long mechanical life of 100000 operations.
- Certified with CE, CSA, ENEC, RoHS, UL, and VDE standards ensuring compliance and safety.
Product Description
Marquardt 01809.1302-00 DPDT On-Off-On (On)-Off-(On) Rocker Switch Panel is designed for precise electrical switching requirements in industrial and commercial applications. Its dual-pole double-throw configuration allows flexible circuit control with on-off-on and (on)-off-(on) switch operation, suitable for complex electrical circuits.
The switch body is constructed from high-quality polyamide providing mechanical strength and durability for panel mounting applications. The switch fits into panel cutout dimensions of 20.5 by 18.6 mm with a snap-fit design suitable for panel thickness from 0.75 to 3 mm.
This rocker switch features black actuator color and quick connect terminals facilitating fast installation and maintenance. IP40 ingress protection ensures resistance to dust and foreign objects larger than 1 mm, making it suitable for controlled indoor environments.
It operates effectively in temperatures ranging from -20 degrees Celsius to 100 degrees Celsius, making it reliable for a variety of ambient conditions. Contact ratings include 6 amperes current capacity, 15 volts DC, and 250 volts AC voltage ratings, supporting a broad range of electrical devices and systems.
Compliance certifications such as CE, CSA, ENEC, RoHS, UL, and VDE attest to its safety, environmental, and quality standards adherence. Mechanical lifespan is rated at 100000 operations, ensuring long-term operational reliability.
Typical industrial uses include electrical automation systems, control panels, power distribution setups, and home appliance controls where reliable switching functionality is critical.
The switch contacts are rated for 6A current ensuring reliable operation. The housing is made of durable polyamide material providing robust panel mounting. The panel cutout size is 20.5 x 18.6 mm enabling easy fitting in electrical enclosures.
The switch features black actuator color and quick connect terminals for convenience. IP40 rating offers protection against solid objects larger than 1 mm but no water ingress protection. Operates in temperature range from -20°C to 100°C supporting varied environments.
Suitable for 15V DC and 250V AC contact voltage applications with long mechanical life of 100000 operations. Certified with CE, CSA, ENEC, RoHS, UL, and VDE standards ensuring compliance and safety. Explore more options in Rocker Switches and related electrical components at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch contacts are rated for 6A current, ensuring reliable operation in various applications.
The panel cutout size for this model is 20.5 x 18.6 mm, allowing for easy fitting in electrical enclosures.
It operates effectively in temperatures ranging from -20°C to 100°C, making it suitable for varied ambient conditions.
The switch has an IP40 rating, providing protection against solid objects larger than 1 mm, but it does not offer water ingress protection.
It is suitable for contact voltage applications of 15V DC and 250V AC, accommodating a broad range of electrical devices.
The housing is made of durable polyamide material, providing mechanical strength for panel mounting applications.
The mechanical life of this switch is rated at 100,000 operations, ensuring long-term operational reliability.
It features quick connect terminals, facilitating fast installation and maintenance.
This rocker switch is certified with CE, CSA, ENEC, RoHS, UL, and VDE standards, ensuring compliance and safety.
The actuator color of this model is black, providing a standard appearance for panel-mounted applications.
The switch features a dual-pole double-throw (DPDT) configuration, allowing flexible circuit control.
Typical industrial uses include electrical automation systems, control panels, power distribution setups, and home appliance controls.
