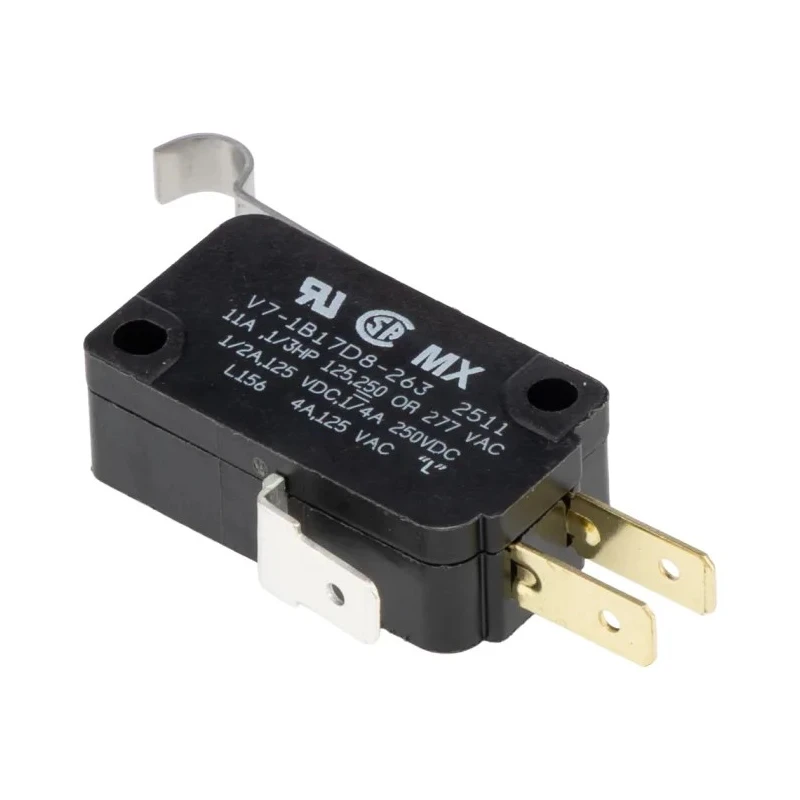

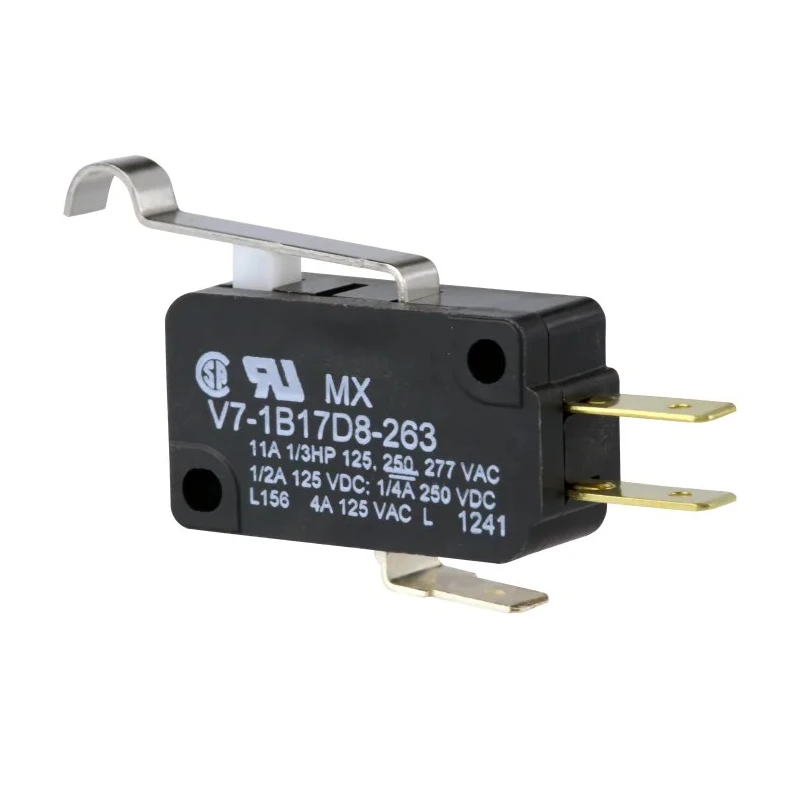

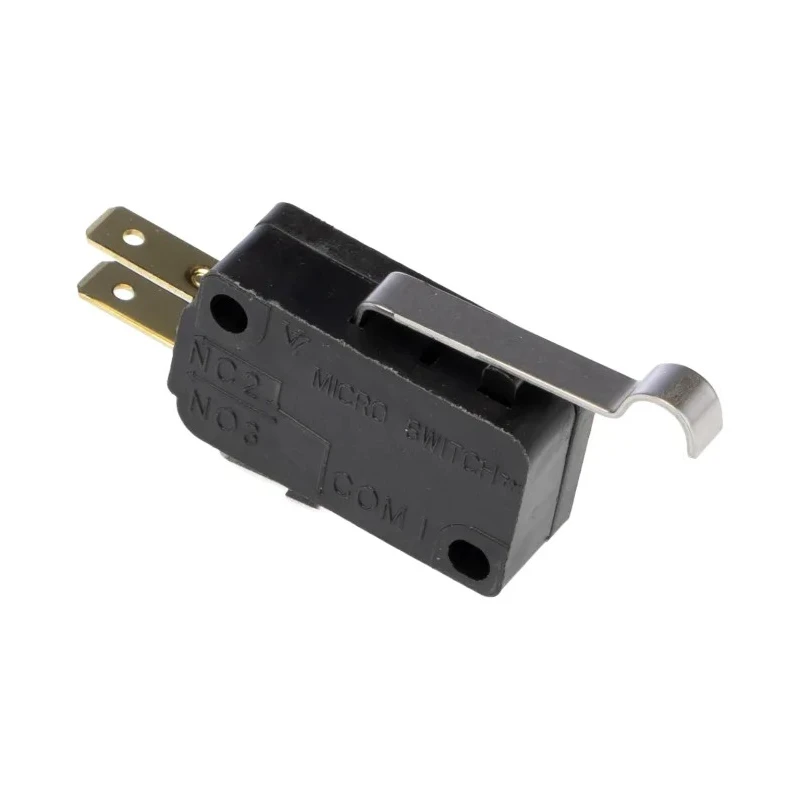

Honeywell Technologies Roller Lever Miniature Micro Switch Quick Connect Terminal 10A 125V AC SPDT V7-1B17D8-263

Name: Honeywell Technologies Roller Lever Miniature Micro Switch Quick Connect Terminal 10A 125V AC SPDT V7-1B17D8-263
Brand: Honeywell
SKU: 248891
Price: 6.36 USD
Availability: InStock



Category Micro Switch Brand Honeywell Condition New

Specifications

Country of Origin	Mexico
Brand	Honeywell
Length	28.8mm
Model	V7-1B17D8-263
Depth	18.2mm
Width	10.2mm
Housing Material	Glass Filled Polycyclohexylenedimethylene Terephthalate
Series	V7
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Actuator Type	Roller Lever
Minimum Operating Temperature	-40°C
Terminal type	Quick Connect
Standards/Approvals	RoHS, CSA, ENEC, UL
Switch Contact Current	10A
Operating Force	90g
Mechanical Life	10000000Cycles
Contact AC Voltage	125V ac
Microswitch Type	Miniature
Switch, Miniature, Basic, SPDT, Simulated Roller 1.29 Inches, Quick ConnectBrand	Honeywell

Key Features

Features a roller lever actuator for precise mechanical movement detection.
Operates effectively in temperatures ranging from -40°C to 85°C.
Glass-filled polycyclohexylenedimethylene terephthalate housing resists chemicals and provides electrical insulation.
Offers a mechanical life of up to 10 million cycles, ensuring long-term reliability.
Quick connect terminal facilitates fast, solderless installation in control panels.
Certified to RoHS, CSA, ENEC, and UL standards, suitable for regulated industrial environments.
Ideal for automation systems, conveyor position detection, industrial appliances, and safety interlocks.

Product Description

Honeywell V7-1B17D8-263 Roller Lever Miniature Micro Switch with Quick Connect Terminal is designed for reliable switching in industrial automation and control systems. Rated for 10A at 125V AC, it supports a single-pole double-throw (SPDT) contact configuration to efficiently switch moderate AC electrical loads. The roller lever actuator converts mechanical motion into precise electrical signals for applications requiring compact, durable switch solutions.

The switch housing is made from glass-filled polycyclohexylenedimethylene terephthalate, providing excellent electrical insulation and chemical resistance. It is engineered to operate within a broad temperature range from -40°C to 85°C, making it suitable for harsh industrial environments. The device’s quick-connect terminals enable rapid, solderless connection to wiring harnesses or spade connectors, streamlining installation and maintenance.

With a mechanical life rated at 10 million cycles, the V7 series micro switch offers long service life and dependable performance. It is recognized by leading international standards and certifications including RoHS, CSA, ENEC, and UL, ensuring compliance with safety and environmental regulations. The compact form factor, with dimensions of 28.8mm length, 18.2mm depth, and 10.2mm width, allows integration into space-constrained control panels and equipment.

This micro switch is ideal for detecting mechanical end positions in conveyor systems, serving as limit input in industrial automation equipment, and functioning within domestic and commercial appliances where lever actuation is needed. Additionally, it can be used for safety interlock sensing on access panels to enhance operational safety.

Roller lever actuator provides accurate mechanical-to-electrical switching. Quick connect terminals enable efficient, solderless installation. Robust housing material offers insulation and chemical resistance. Wide operational temperature range suits diverse ambient conditions.

Long mechanical life ensures durable performance. Certified to RoHS, CSA, ENEC, and UL standards. Compact size supports space-saving equipment design. Versatile use in industrial, appliance, and safety applications. Explore advanced Micro Switches and automation components in the Electronics & Electricals category on EnvMart for precise, reliable, and certified industrial solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It is rated for 10A at 125V AC, suitable for switching moderate AC electrical loads.

This model operates effectively in temperatures ranging from -40°C to 85°C, making it suitable for harsh industrial environments.

It features a roller lever actuator, which is designed for precise mechanical movement detection.

The mechanical life is rated at up to 10 million cycles, ensuring long-term reliability in various applications.

The dimensions are 28.8mm in length, 18.2mm in depth, and 10.2mm in width, allowing for compact installation.

It is equipped with quick connect terminals, facilitating fast, solderless installation in control panels.

It is certified to RoHS, CSA, ENEC, and UL standards, ensuring compliance with safety and environmental regulations.

The housing is made from glass-filled polycyclohexylenedimethylene terephthalate, which provides excellent electrical insulation and chemical resistance.

It is ideal for automation systems, conveyor position detection, industrial appliances, and safety interlocks.

The switch supports a single-pole double-throw (SPDT) contact configuration, allowing for efficient switching.

The operating force is 90 grams, which is the force needed to actuate the switch.

The country of origin for this model is Mexico.
