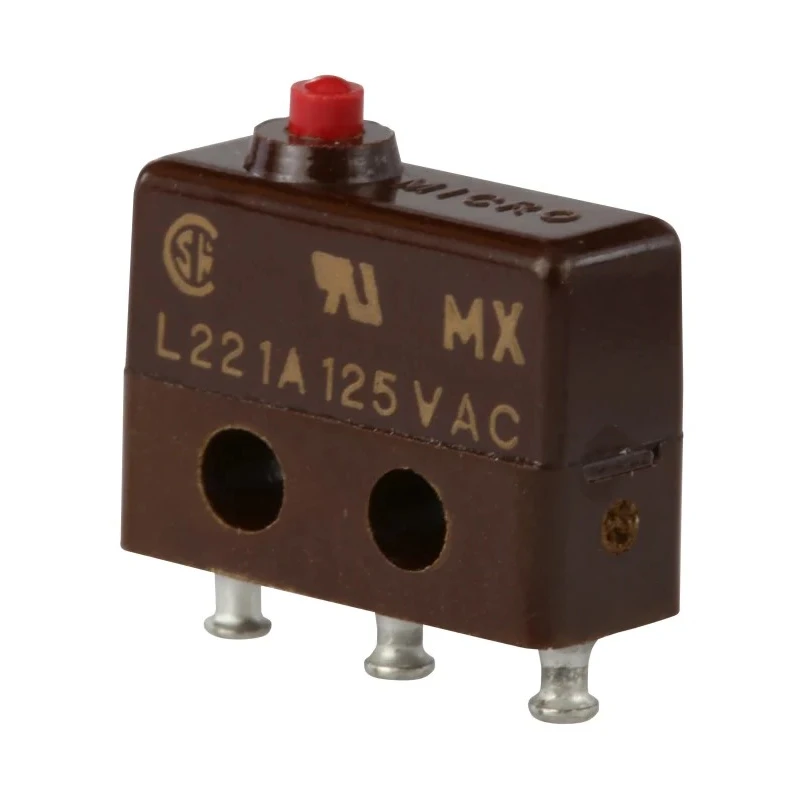

Honeywell Technologies Pin Plunger Micro Switch, Solder Terminal, 1A, 125V AC, SPDT 12SX1-T
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Honeywell |
| Length | 12.7mm |
| Model | 12SX1-T |
| Depth | 8.9mm |
| Width | 5.1mm |
| Housing Material | Phenolic |
| Series | SX |
| Maximum Operating Temperature | 204°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -54°C |
| Terminal type | Solder |
| Standards/Approvals | UL, CE, CSA, RoHS |
| Switch Contact Current | 1A |
| Operating Force | 1.39N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Subminiature |
| Switch, Basic, SubMiniature, 1 AMP, PIN PLUNGERBrand | Honeywell |
Key Features
- Compact subminiature design enables integration in tight spaces.
- Phenolic housing ensures resistance to elevated temperatures.
- Operating force set at 1.39 N for reliable actuation feedback.
- Mechanical life rated at 10 million operations for long service intervals.
- Suitable for position sensing in industrial automation equipment.
- Meets UL, CE, CSA, and RoHS approvals for regulated applications.
- Operating temperature range from -54°C up to 204°C for demanding environments.
- Solder terminals provide secure PCB mounting or wire connection.
Product Description
Honeywell 12SX1-T Pin Plunger Micro Switch is a subminiature device designed for precise mechanical movement detection and control circuit switching. Featuring a solder terminal connection, this micro switch supports a 1 ampere switch contact current at 125 volts AC with a single-pole double-throw (SPDT) configuration. The phenolic housing provides resistance to high temperatures, making it suitable for demanding industrial and commercial environments.
This micro switch operates with an actuation force of 1.39 newtons, offering consistent tactile feedback for control applications. The robust mechanical design guarantees a long operational lifespan of up to 10 million cycles, reducing the need for frequent replacements and maintenance.
Applications include position sensing within industrial automation systems, limit switching in electromechanical assemblies, control inputs on appliance PCBs, and safety interlocks within instrumentation panels. The broad operating temperature range of -54°C to 204°C expands usage potential across harsh and varied conditions.
Certified under UL, CE, CSA, and RoHS standards, the 12SX1-T micro switch meets industry safety and environmental compliance requirements. The solder terminal type allows easy integration into printed circuit boards or direct wire soldering, facilitating versatile mounting options.
Compact phenolic housing for heat resistance. High mechanical reliability with 10 million operation lifespan. SPDT contact configuration for versatile electrical switching. Wide temperature tolerance from -54°C to 204°C.
Compliance with key international standards and certifications. Appropriate for industrial, laboratory, and commercial automation controls. Manufactured in Mexico ensuring consistent product quality. Single-pole changeover contact ensures precise circuit control.
Solder terminals offer secure mounting on PCBs or direct wiring. Explore more Micro Switches and electrical components in the Electronics & Electricals category at EnvMart for your automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this micro switch is 204°C.
It has a mechanical life rating of 10 million operations, ensuring long service intervals.
This model features a single-pole double-throw (SPDT) contact configuration.
The operating force set for this micro switch is 1.39 N.
The dimensions are 12.7 mm in length, 8.9 mm in depth, and 5.1 mm in width.
It uses solder terminals for secure PCB mounting or wire connection.
The minimum operating temperature is -54°C, making it suitable for harsh environments.
This micro switch meets UL, CE, CSA, and RoHS standards for safety and environmental compliance.
The switch contact current rating is 1 ampere at 125 volts AC.
It is suitable for position sensing in industrial automation, limit switching, and control inputs on appliance PCBs.
The housing is made from phenolic material, providing resistance to elevated temperatures.
This micro switch is manufactured in Mexico, ensuring consistent product quality.
