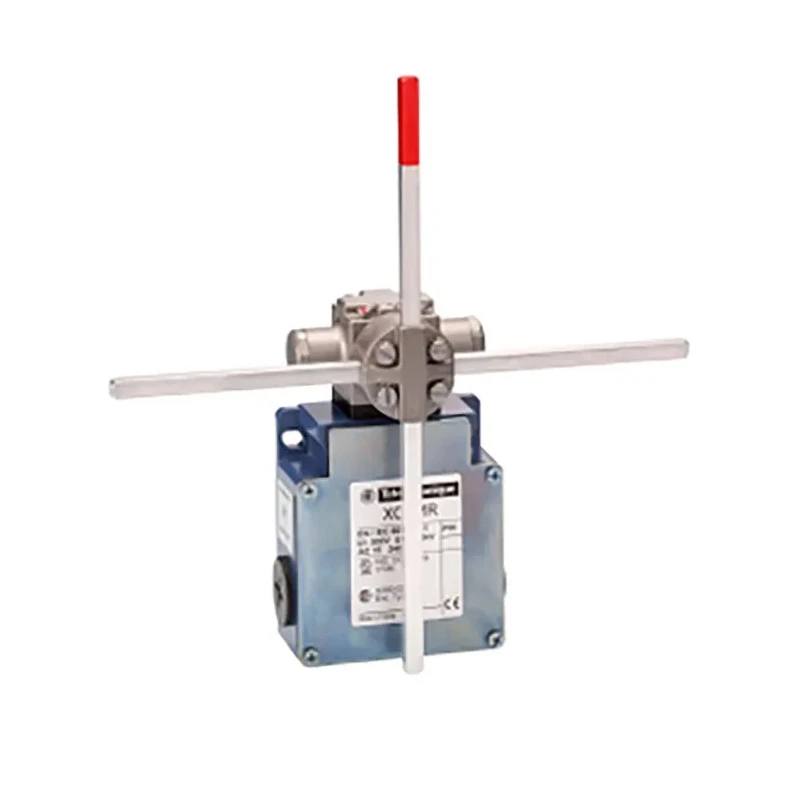

Telemecanique Sensors Limit Switch OsiSense XC Series Rod Actuator 4P IP66 Zinc Alloy Housing 500V AC 10A XCKMR24SR1H29

Telemecanique Sensors XCKMR24SR1H29 Limit Switch from the OsiSense XC Series features a robust rod actuator designed for industrial automation, position detection, and control applications. The device offers reliable snap action electrical switching with a 4P contact configuration, capable of handling up to 10A current at 500V AC and DC voltages.

This limit switch is housed in a zinc alloy enclosure rated IP66, ensuring protection against dust ingress and powerful water jets, making it suitable for harsh and demanding environments such as manufacturing plants, mining, minerals, metals processing, and conveyor systems.

Precision in operation is guaranteed by the 0.5 Nm operating force and vertical mounting capability. It supports M20 conduit entry for secure and standardized wiring. The switch operates effectively across a temperature range from -25°C to 70°C, providing versatility for varied industrial conditions.

Its mechanical endurance is rated for 2 million cycles, a testament to its reliability and suitability for prolonged usage in industrial settings. With compact dimensions measuring 200mm in length, 59mm in width, and 118mm in depth, it enables flexible installation in tight spaces.

The rod actuator enables precise position detection in automation and control systems. The switch is rated for 10A switching current at 500V AC and DC, suitable for heavy-duty applications. IP66 rated zinc alloy housing ensures dust-tight and water-resistant protection.

Features 4P contact configuration with snap action for reliable and fast electrical switching. Designed with M20 terminal entry and vertical mounting orientation for easy installation. Operates reliably within a temperature range of -25°C to 70°C for harsh industrial conditions.

Mechanical life expectancy of 2,000,000 cycles ensures long-term durability. Operating force requirement is 0.5 Nm, facilitating smooth mechanical actuation. Dimensions include length 200mm, width 59mm, and depth 118mm, compact for varied mounting setups.

Complies with RoHS standards for environmental safety and quality assurance.

Telemecanique Sensors limit switches are widely used in industries such as industrial automation, manufacturing, mining, material handling, and process control. The XCKMR24SR1H29 model provides a durable and high-performance solution for position monitoring and safety limit detection.
