Digi International WiFi Module 3.46V, 72Mbps Data Rate, 802.11 b/g/n XB2B-WFWT-001

Free Delivery in India | Lowest Global Shipping Charges

Digi International WiFi Module 3.46V, 72Mbps Data Rate, 802.11 b/g/n XB2B-WFWT-001

Name: Digi International WiFi Module 3.46V, 72Mbps Data Rate, 802.11 b/g/n XB2B-WFWT-001
Brand: Digi International
SKU: 247955
Price: 20.22 USD
Availability: InStock



Category WiFi Modules Brand Digi International Condition New

Specifications

Country of Origin	Thailand
Frequency	2.4GHz
Brand	Digi International
Dimensions	24.4 x 32.9 x 7mm (DIL), 22 x 34 x 3mm (SMT)
Operating Temperature Range	-30 to +85°C
Length	24.38mm
Model	XB2B-WFWT-001
Width	32.94mm
Series	XB2B-WFWT-001
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Security	WEP, WPA-PSK and WPA2-PSK
Receiver Sensitivity	-97 to -71dBm
Interface Type	SPI, UART
Maximum Supply Voltage	3.46V
Minimum Supply Voltage	3.14V
Host communication	serial UART/SPI
Supported Protocols	802.11 b/g/n
Supported Security Standards	WPA-PSK, WPA2-PSK, WEP
Carrier Frequency	2.4GHz ISM Band with 13 channels
Receiving Supply Current	100mA
Transmitting Supply Current	309mA
OTA Data Rates	11Mbps (802.11b), 54Mbps (802.11g), 72Mbps (802.11n)

Key Features

Supports WPA-PSK, WPA2-PSK, and WEP security standards.
Operates at a frequency of 2.4GHz ISM band with 13 channels.
Interfaces include SPI and UART for host communication.
Operating temperature range from -30°C to 85°C ensures reliability in diverse environments.
Compact dimensions of 24.4 x 32.9 x 7mm (DIL) or 22 x 34 x 3mm (SMT) for versatile integration.
Power supply range between 3.14V and 3.46V with transmission current up to 309mA.
Receiver sensitivity ranges from -97 to -71dBm for stable wireless communication.
Designed for wireless sensor networks and Internet of Things (IoT) communication applications.

Product Description

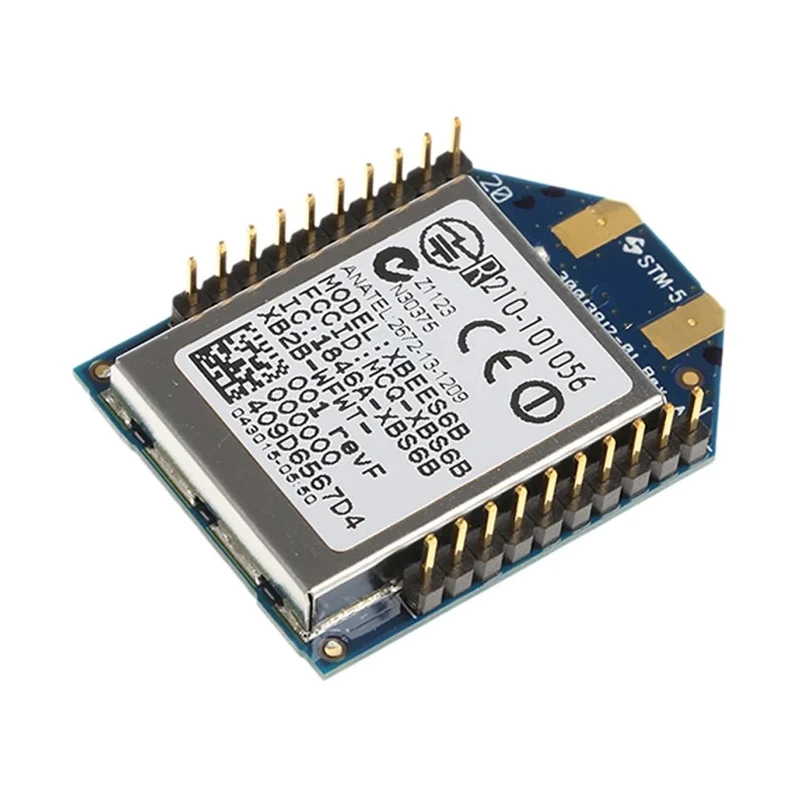

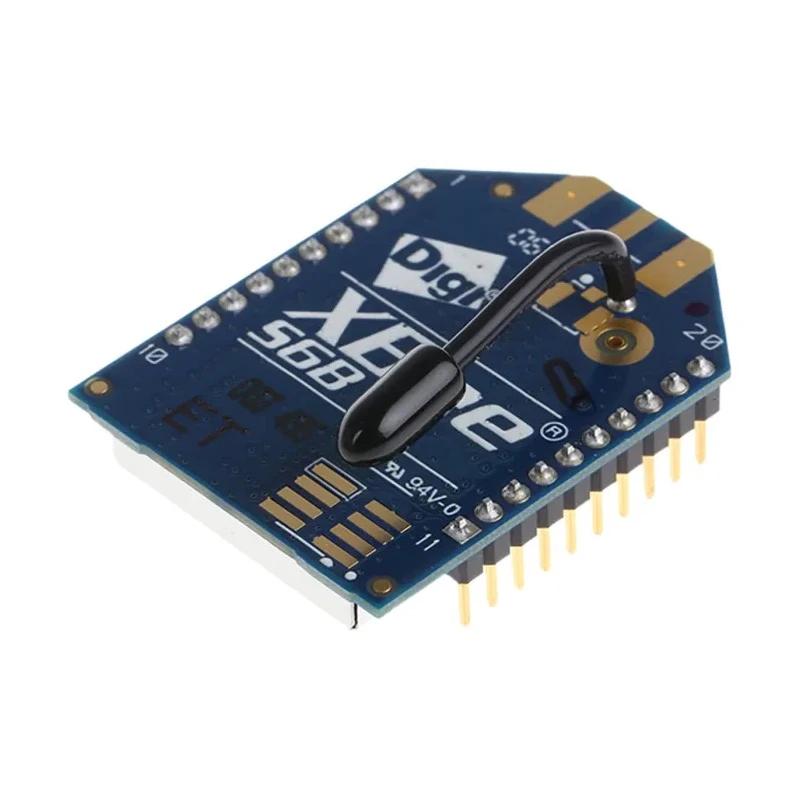

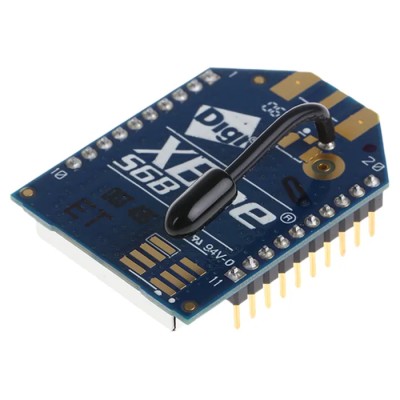

Digi International XB2B-WFWT-001 WiFi Module is a high-performance embedded Wi-Fi transceiver module compliant with IEEE 802.11 b/g/n standards. Operating on a 3.14V to 3.46V power supply, it delivers data rates up to 72Mbps, facilitating robust wireless connectivity for electronic designs.

This module supports multiple security protocols including WPA-PSK, WPA2-PSK, and WEP, ensuring secure network connections. It operates in the 2.4GHz ISM band offering 13 channels, ideal for diverse wireless applications.

Featuring dual communication interfaces - SPI and UART - the XB2B-WFWT-001 allows easy integration with host systems. Its receiver sensitivity between -97 to -71dBm enhances reliable data reception over wireless links.

The compact form factor, measuring 24.4 x 32.9 x 7mm (DIL) and 22 x 34 x 3mm (SMT), supports versatile installation options. It operates efficiently within an ambient temperature range of -30°C to +85°C, perfect for industrial and commercial environments.

Commonly deployed in wireless sensor networks and Internet of Things (IoT) communication systems, this module provides flexible and secure wireless connectivity for embedded applications.

Supports WPA-PSK, WPA2-PSK, and WEP security standards. Operates at 2.4GHz ISM band with 13 channels. Host communication interfaces: SPI and UART. Power supply voltage range: 3.14V to 3.46V DC. Operating temperature range: -30°C to 85°C.

Receiver sensitivity: -97 to -71dBm. Compact dimensions for flexible installation. Ideal for wireless sensor networks and IoT applications. Explore our extensive range of WiFi Modules at EnvMart for industrial, commercial, and IoT connectivity solutions.
