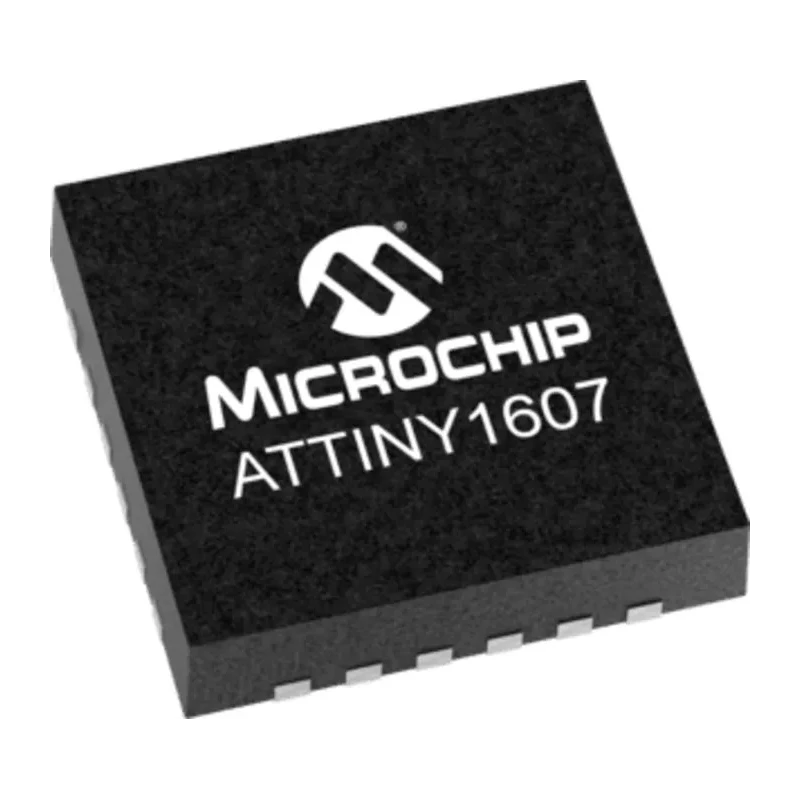

Microchip 8 bit AVR ATTINY1607 Microcontroller 20 MHz 16kB FLASH 24-Pin VQFN ATTINY1607-MFR

Microchip ATTINY1607-MFR is a high-performance 8-bit AVR microcontroller designed with an integrated hardware multiplier for efficient computation, operating at up to 20 MHz clock speed. It has a program memory of 16kB FLASH, supplemented by 1.024kB SRAM and 256 bytes EEPROM, providing sufficient memory for compact embedded applications.

The device comes in a compact 24-pin VQFN surface mount package with dimensions of 4mm by 4mm and a height of 850μm, optimized for space-constrained designs. It supports a wide operating voltage range from 1.8V to 5.5V with various low power modes including Idle, Standby, and Power Down, which maximize battery life in portable and embedded systems.

Equipped with 22 programmable input/output pins, this microcontroller offers versatile connections for peripherals and external devices. Featuring a 12-channel 10-bit ADC with voltage reference, it enables precise analog signal measurement suitable for sensor interfacing and control systems. Additionally, it houses one analogue comparator, two timers (16-bit TCA/TCB), configurable custom logic, watchdog timer, power-on reset, brown-out detection, and cyclic redundancy check functionality.

The architecture utilizes a RISC instruction set for efficient operation, facilitating a total of 135 instructions to cover a broad range of computational needs. This device is RoHS compliant and manufactured in the United States, adhering to international standards for quality and environmental safety.

Designed for use in industrial automation, consumer electronics, automotive applications, and other embedded systems, this microcontroller offers reliable operation with a temperature range from -40°C to 125°C, ensuring stable performance under extreme conditions.

This 8-bit AVR microcontroller is suitable for developers requiring a flexible and low power embedded solution with advanced peripheral support combined with a compact footprint. Microchip ATTINY1607-MFR facilitates efficient creation of complex control applications and sensor interfacing with its rich feature set.

Runs on an 8-bit AVR processor with hardware multiplier running up to 20 MHz. Features 16kB Flash memory, 1.024kB SRAM, and 256 bytes EEPROM for program and data storage. Includes 22 programmable I/Os and 12-channel 10-bit ADC with voltage reference.

Operates at a voltage range of 1.8 V to 5.5 V, supporting low power modes such as Idle, Standby, and Power Down. Compact 24-pin VQFN surface mount package with 4mm x 4mm dimensions and 850μm height. Equipped with multiple peripherals including analog comparators, timers, watchdog timer, and configurable custom logic.

Designed for advanced embedded applications requiring flexible architecture and low power consumption. Operates in temperatures from -40°C to 125°C ensuring robust performance in harsh environments. Explore the Microcontroller category on EnvMart for more advanced embedded systems components from leading brands including Microchip.
