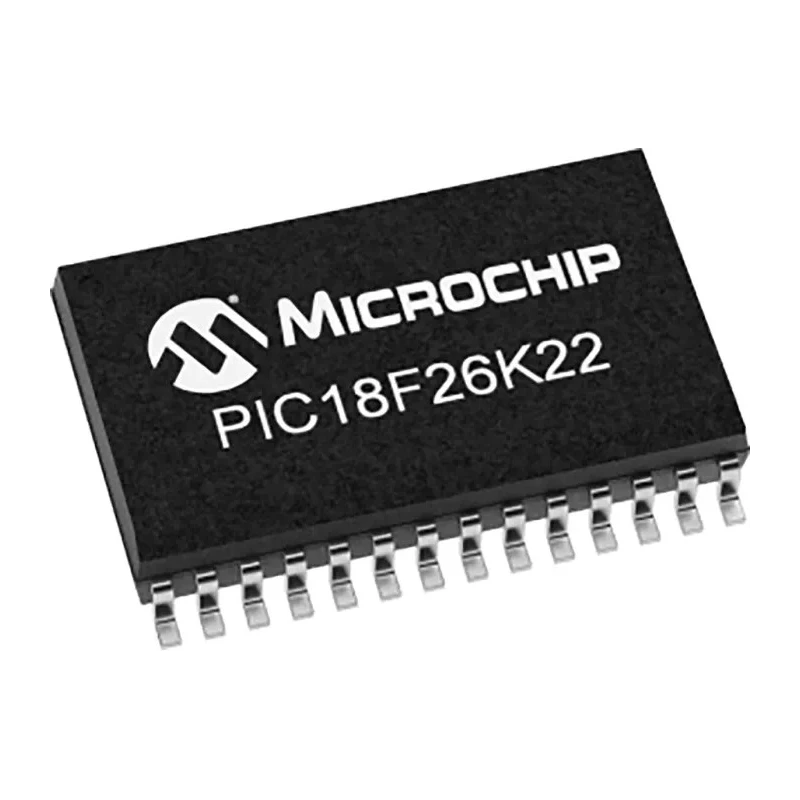

Microchip 8 bit PIC PIC18F Microcontroller 64 MHz 64kB FLASH 28-Pin QFN PIC18F26K22T-I/ML

Microchip PIC18F26K22T-I/ML is an advanced 8 bit PIC microcontroller designed for industrial, commercial, and embedded system applications. It operates at a high clock frequency of 64 MHz and features 64kB of FLASH program memory complemented by 3.9kB of RAM. The device is housed in a compact 28-Pin QFN surface mount package measuring 6 mm by 6 mm with a height of 950 microns, making it ideal for space-constrained designs.

This microcontroller incorporates a high-performance RISC CPU with up to 16 MIPS operation, an 8 x 8 single-cycle hardware multiplier, and priority interrupt levels with a 31-level software accessible hardware stack. The architecture includes advanced low-power management capabilities, featuring a nanoWatt XLP sleep mode consuming just 100 nA typical current.

Interfaces supported include EUSART, I2C, LIN, RS485, and SPI, with 35 programmable input/output pins for versatile connectivity.

Additional features include 19 channels of 10-bit ADCs, two analog comparators, five-bit DACs, and timers for precise timing and control tasks. The microcontroller also has a flexible oscillator structure with a 16 MHz internal oscillator factory calibrated to ±1%, with selectable frequencies ranging from 31 kHz to 16 MHz and an optional PLL to achieve the 64 MHz performance.

The device operates within a voltage range of 2 V to 5.5 V and is rated for temperatures from -40°C up to 85°C, suitable for harsh industrial environments. Its low power dissipation at a maximum of 1 W ensures energy efficiency in embedded applications.

As a RoHS-compliant component manufactured in the United States, the PIC18F26K22T-I/ML microcontroller is well suited for use in embedded systems requiring reliable, low power, and high-performance processing.

Key industrial use cases include automation, instrumentation, motor control, communication interfaces, and sensor management in commercial and industrial electronics. Equipped with 35 programmable I/Os for versatile interfacing.

Includes 3.9kB RAM and 19 ADC channels with 10-bit resolution. Supports multiple interfaces including EUSART, I2C, LIN, RS485, and SPI. Operates efficiently within a supply voltage range of 2V to 5.5V. Features ultra-low power sleep mode with 100 nA typical consumption.

Built with precision internal oscillators and PLL supporting up to 64 MHz clock frequency. RoHS compliant with robust temperature tolerance from -40°C to 85°C. Includes two analog comparators and two timers for enhanced control.

Offers 5-bit DACs for precise analog output functions. Measures 6 mm x 6 mm footprint with 950 μm height, suitable for compact designs. Explore detailed technical specifications and other related Microcontrollers in the Microchip category on EnvMart.
