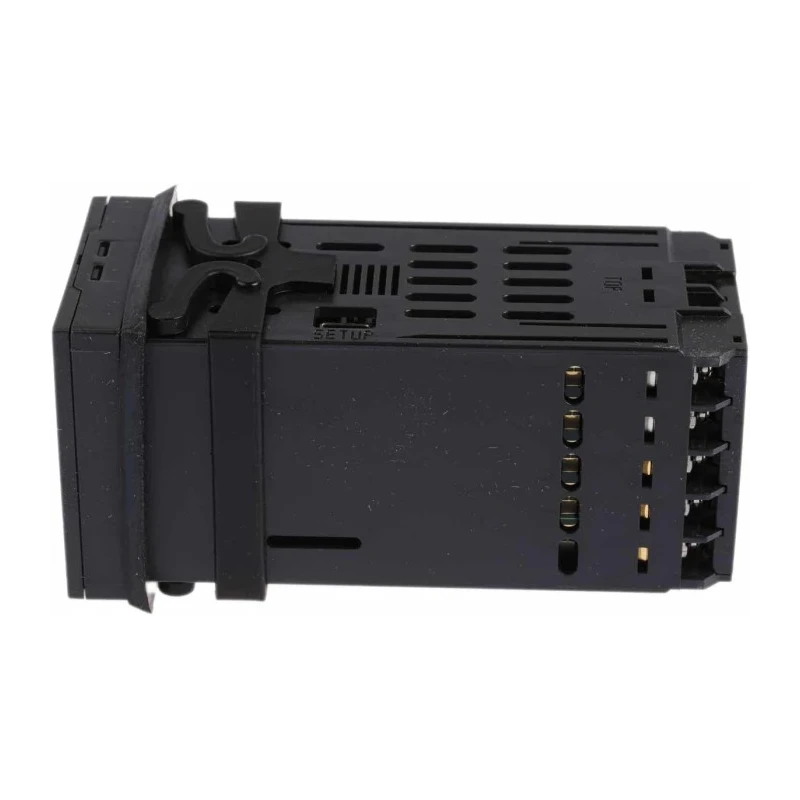

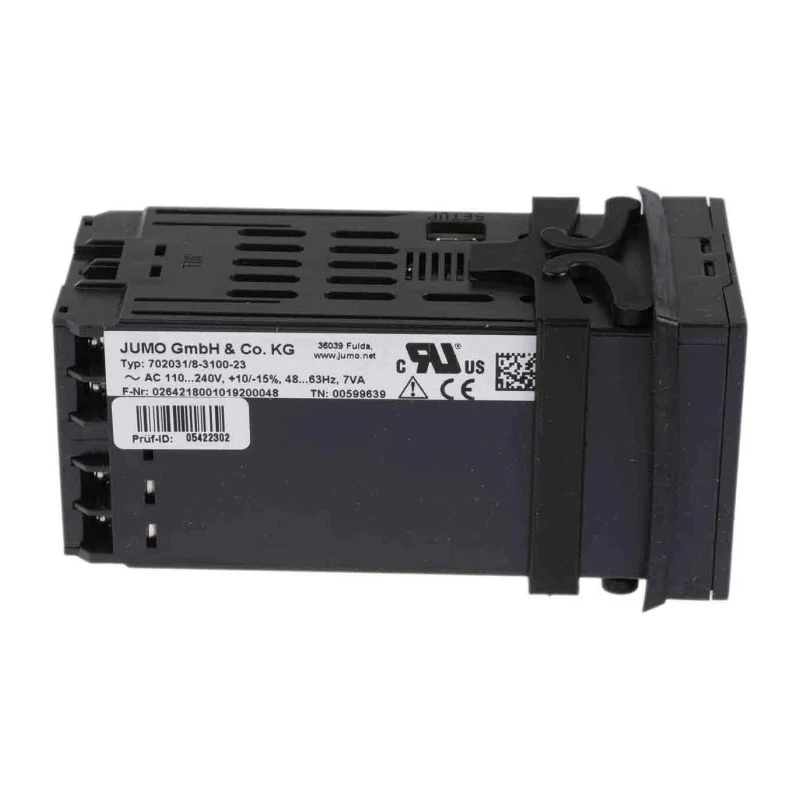

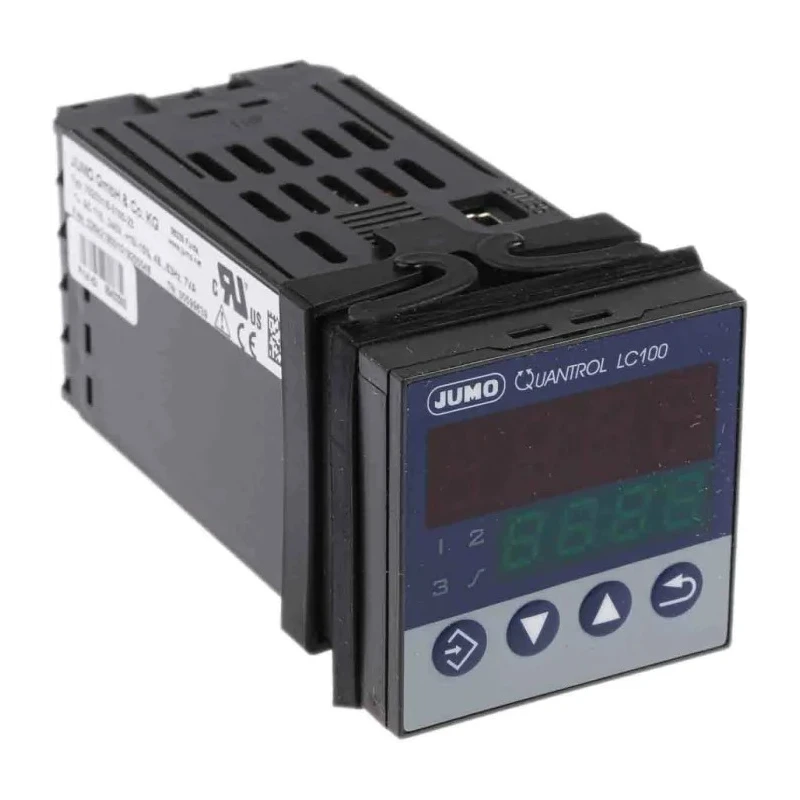

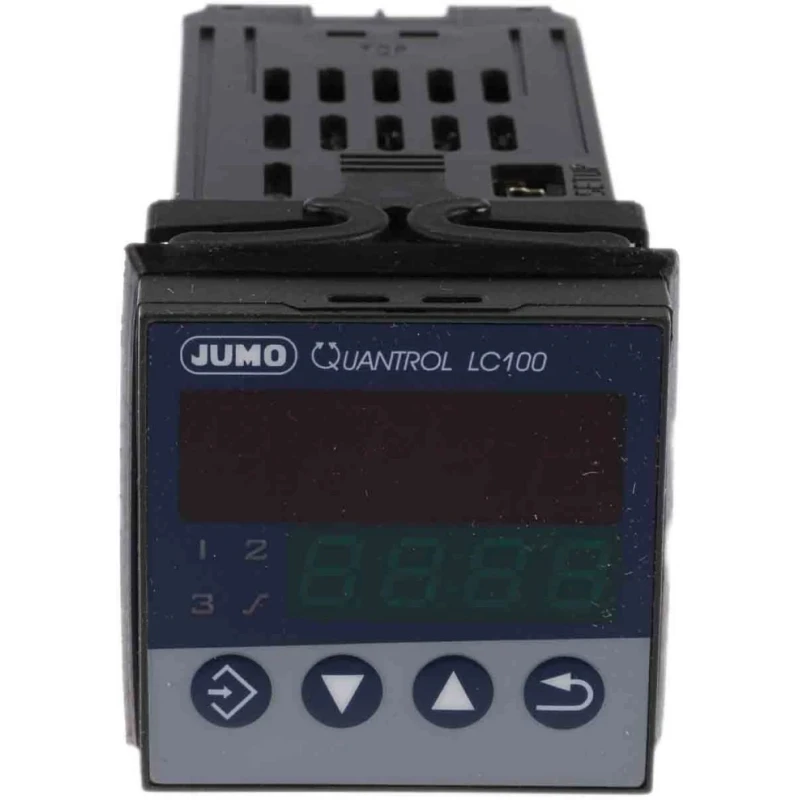

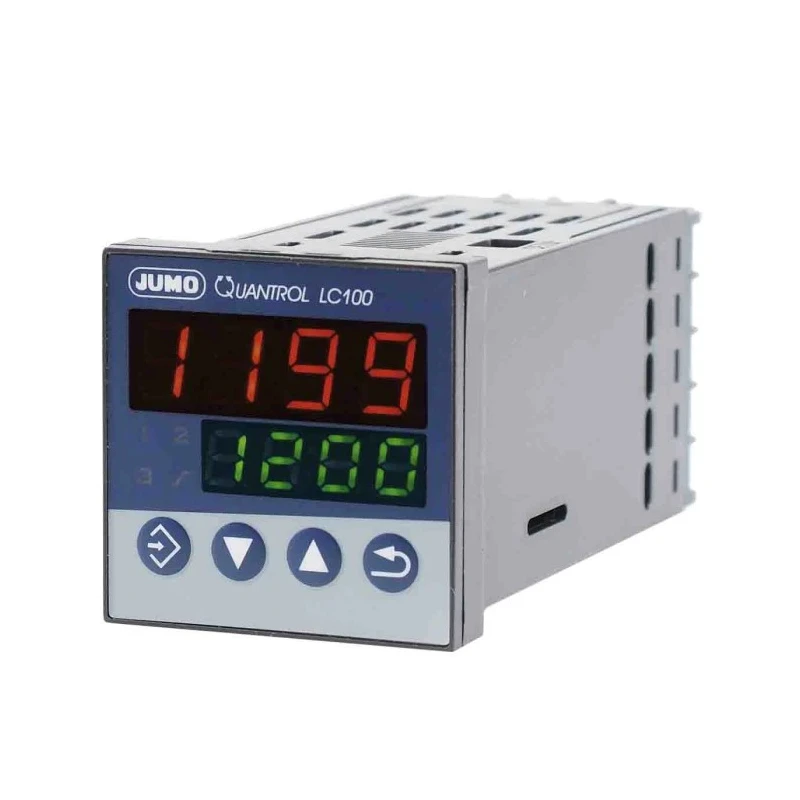

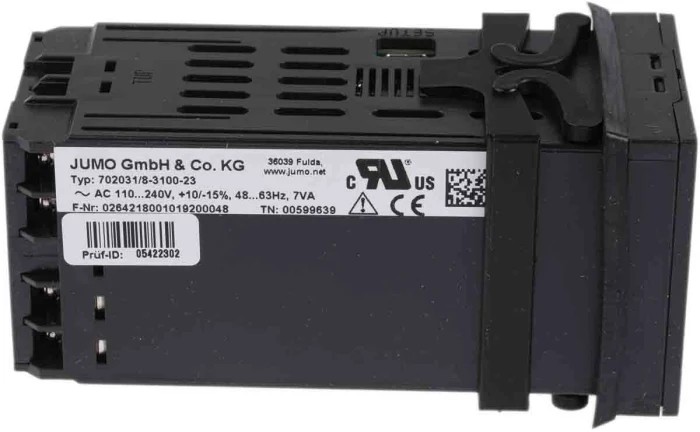

RS PRO QUANTROL Panel PID Temperature Controller 1 Input 2 Output Analogue 240V AC On-Off 702031/8-3100-23

Jumo 702031/8-3100-23 QUANTROL Panel PID Temperature Controller is a compact, self-optimising device designed for industrial process temperature control. It operates on a universal supply voltage from 110 VAC up to 240 VAC and features a panel mount design with dimensions of 48mm by 48mm and a panel depth of 95mm. The controller supports one universal analogue input suitable for RTD temperature probes, thermocouples, and current or voltage signals.

This temperature controller offers both analogue and relay outputs with on-off control type. It is ideal for 2-state and 3-state control applications, controlling regulating valves or silicon-controlled rectifier (SCR) power controllers via continuous output. The device is optimized for firing curve operations used in pottery kilns and similar thermal processes.

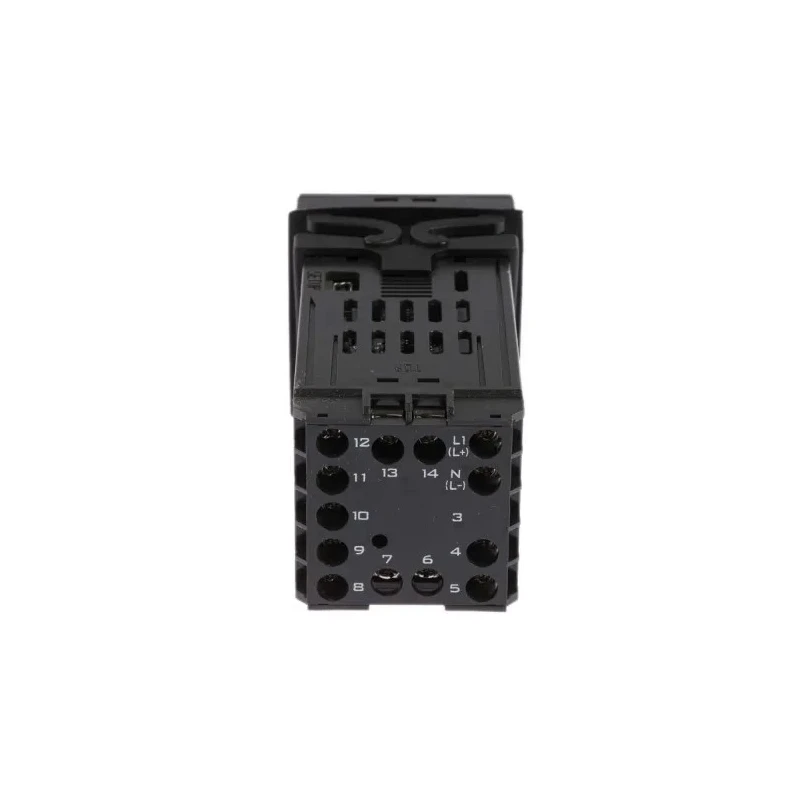

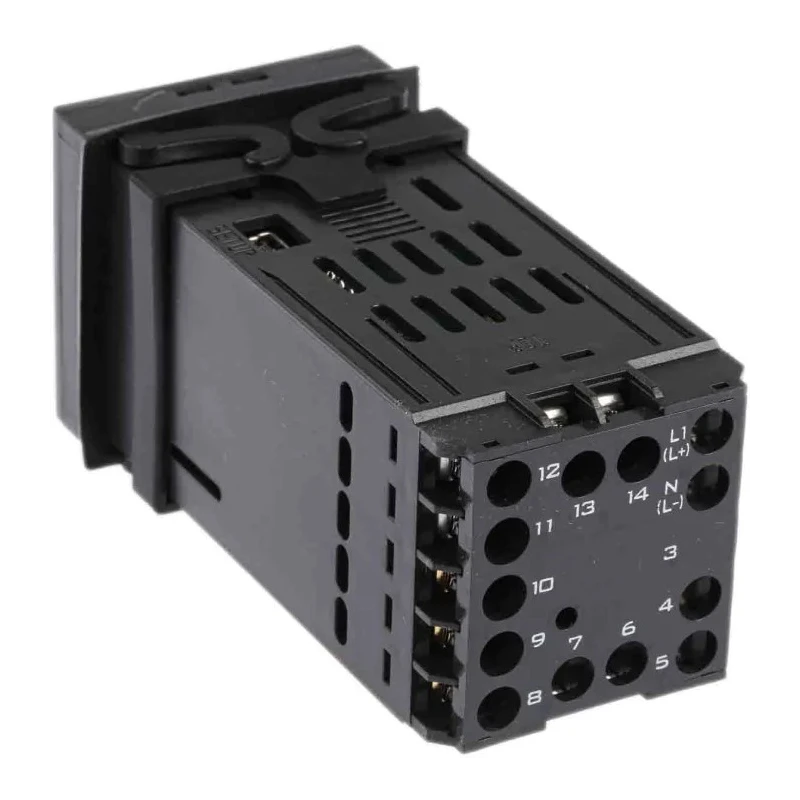

Featuring an LED display type and IP65 rating for protection against dust and moisture, the controller meets numerous industry standards including UL 61010-1, IEC 61554, DIN EN 61326-1, DIN EN 61010-1, DIN EN 60529, and CAN/CSA C22.2 No. 61010-1. The terminal connections are screw type ensuring secure wiring. Digital communication is enabled through RS485 Modbus RTU with diagnostic capabilities.

Additional functional benefits include configurable alarm monitoring, self-tuning PID regulation, manual/automatic operation modes, ramp and timer functions, and key lock for security. It also supports sensor monitoring and set point changeover to enhance reliability and flexibility in demanding industrial environments.

The device originates from Germany and is suitable for applications in industrial automation, process control, manufacturing, and temperature-sensitive operations in laboratories and commercial environments. It is a versatile solution for precise thermal regulation with durable construction and advanced control features.

The controller supports configurable alarms for limit value monitoring. Its PID control system enables precise thermal management. RS485 Modbus RTU interface allows seamless integration in industrial networks. IP65 rated enclosure provides robust protection in harsh environments.

Firing curve functionality adapts to pottery kiln temperature profiles. Includes LED status indicators and USB mini-B setup port for ease of use. Compact panel mount design with a depth of 95mm fits standard installations.

Supports temperature inputs from RTDs, thermocouples, and electrical signals. Complies with multiple international safety and performance standards. Explore more quality temperature controllers and automation solutions in the Temperature Controllers category on EnvMart.
