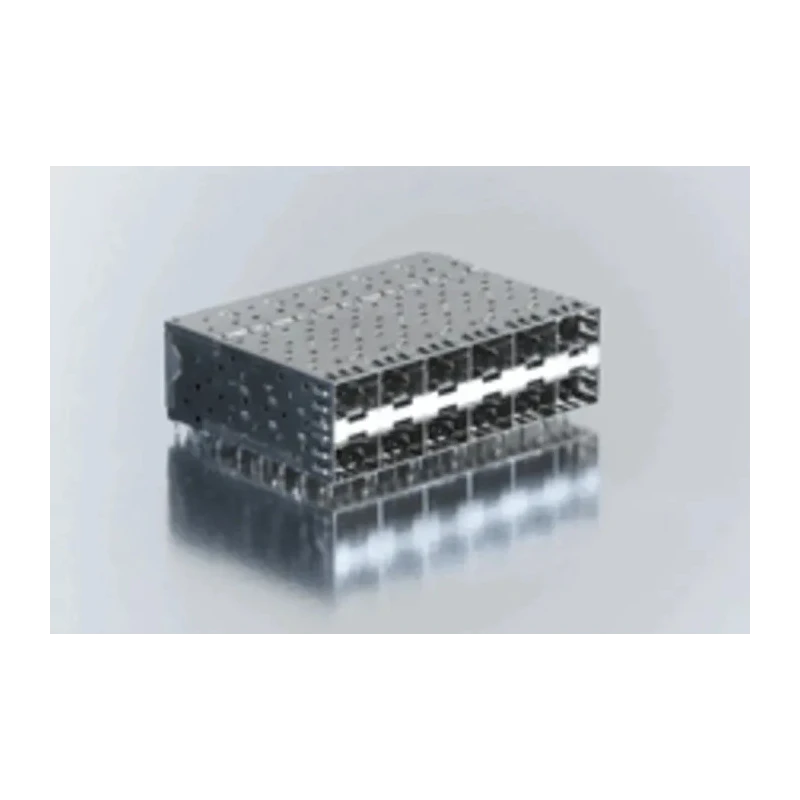

Molex Pluggable I/O Connector SFP Female Solder 12 Port 240-Position Thermoplastic Housing 120V 500mA 75477-5001

Name: Molex Pluggable I/O Connector SFP Female Solder 12 Port 240-Position Thermoplastic Housing 120V 500mA 75477-5001
Brand: Molex
SKU: 246090
Price: 195.01 USD
Availability: InStock



Category Pluggable I/O Connectors Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	120V
Brand	Molex
Orientation	Right Angle
Current	500mA
Housing Material	Thermoplastic
Contact Material	High Performance Alloy
Series	75477
Number Of Ports	12
Termination Type	Solder
Sub Type	Connector
Form Factor	SFP
Contact Plating	Tin, Gold
Number of Contacts	240
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Contact Gender	Female
Connector Gender	Female

Key Features

Small form factor pluggable stacked 2 by 6 multi-port design ensures compact integration.
Constructed with thermoplastic housing material for durable performance.
Contact material is high performance alloy, plated with tin and gold for enhanced conductivity.
Connector features right angle orientation suitable for printed circuit boards.
Operating temperature range from -40°C to 85°C supports varied environments.
Lead-free and RoHS compliant ensuring environmental safety.
Gold plated mating and tin plating termination to prevent corrosion and ensure signal integrity.
Rated for 500mA current and voltage rating of 120Vrms AC/DC for reliable power delivery.

Product Description

Molex 75477-5001 Pluggable I/O Connector is a female SFP type connector designed for high-density and reliable electrical connections. Featuring 12 ports and 240 positions arranged in a compact 2 by 6 stack, this connector is ideal for electronic and networking applications where space savings are critical. The connector's thermoplastic housing ensures robustness with a lightweight form factor.

This component is engineered with high performance alloy contacts, applying tin plating termination and gold plating for the mating surfaces to enhance conductivity and prevent corrosion over long-term use. Its solder termination type is compatible with printed circuit board assembly, providing right angle orientation for streamlined PCB layouts.

Rated for 120V voltage and 500mA current capacity, the connector supports demanding industrial and telecommunications environments. The operating temperature range from -40°C to 85°C allows for application in harsh temperature conditions without degradation.

Compliant with current environmental and safety standards, including RoHS, ANSI/ESD S20.20 (2014), and BS EN 61340-5-1 (2007), this connector ensures reliable and safe operation in professional settings. The Molex 75477 series is designed and manufactured in China, meeting global quality benchmarks.

Ideal for use in industrial manufacturing, networking equipment, communications systems, and electronic devices requiring robust pluggable I/O connectivity. This connector supports specialized technical applications demanding precision, durability, and compliance.

Small form factor, stacked multi-port design reduces space requirements. Thermoplastic housing offers high durability and electrical insulation. Premium contact materials and plating enhance connection integrity. Right angle solder termination suitable for PCB mounting.

Wide operating temperature range for versatile environments. RoHS compliant and lead-free attribute supports environmental standards. Meets ANSI and BS EN electrostatic discharge and safety standards. Reliable performance for 120V and 500mA ratings.

Manufactured in China with global quality accreditation. Explore more in our Electronics & Electricals Connectors category for compatible parts and accessories.
