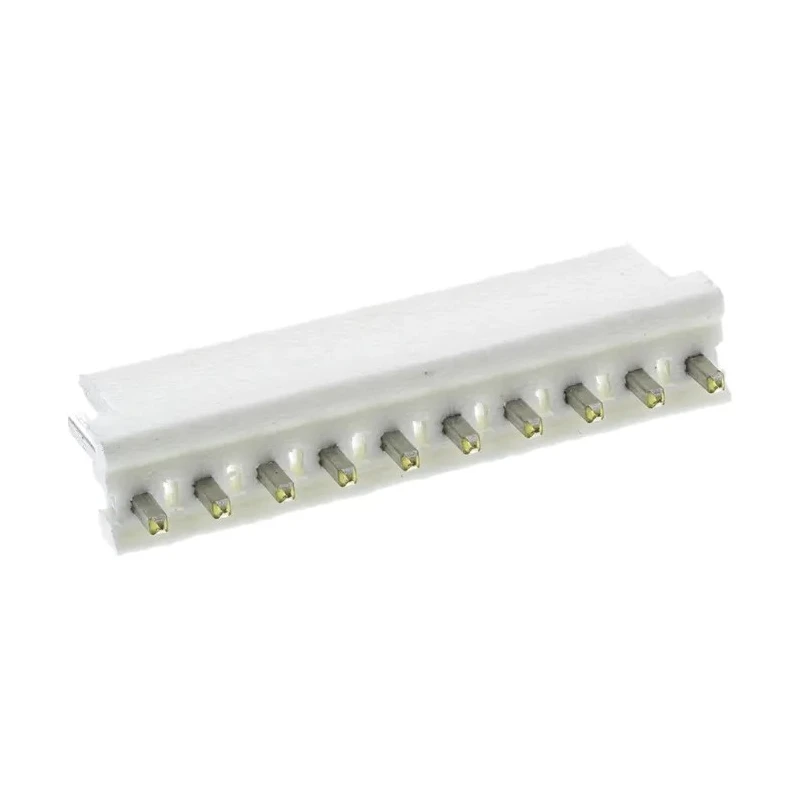

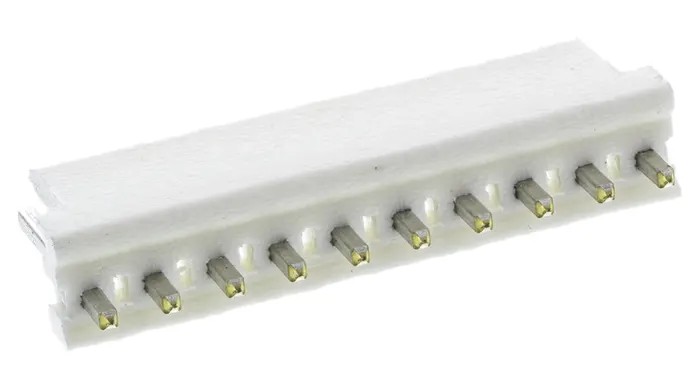

TE Connectivity MTA-156 Series Straight Through Hole Pin Header, 10 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 1-640445-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- Designed with a single row of 10 male contacts for efficient circuit connectivity.
- Constructed with a durable polyester housing and copper alloy contacts plated with tin.
- Supports through-hole mounting with solder termination for robust mechanical and electrical connection.
- Operates within a wide temperature range from -65°C to 105°C ensuring performance in harsh environments.
- Rated for 7A current and 600V voltage applications for versatile electronic uses.
- Features an unshrouded, straight orientation design suitable for mass termination with IDC connectors.
- Tail pin length of 3.18 mm facilitates secure mounting and soldering.
- End-to-end stackable headers incorporate friction lock mechanism for reliable mating connections.
Product Description
TE Connectivity 1-640445-0 MTA-156 Series Straight Through Hole Pin Header is engineered for wire-to-board mass termination applications with IDC connectors. Featuring 10 male contacts arranged in a single row with 3.96 mm pitch, this header ensures reliable electrical and mechanical performance for diverse industrial uses.
Constructed from polyester housing and copper alloy contacts plated with tin, it offers excellent durability, corrosion resistance, and conductivity. The header supports through-hole solder type termination and operates efficiently in temperatures ranging from -65°C to +105°C, suitable for demanding environments.
Rated for a current of 7A and a voltage of 600V, this pin header supports robust power and signal transmission. Its unshrouded design and straight orientation allow straightforward PCB integration, while the 3.18 mm tail pin length guarantees secure solder joint formation.
The MTA-156 series supports end-to-end stackability and incorporates a friction lock mechanism for secure mating with compatible IDC connectors, providing cost-saving mass wire termination solutions. This product finds applications across automotive body and chassis systems, driver information and safety systems, as well as in computer and consumer electronics including desktops, notebooks, servers, and storage systems.
Designed for efficient wire-to-board mass termination using MTA-156 IDC connectors. Durable polyester housing with copper alloy contacts and tin plating. Through-hole mounting with solder termination ensures strong mechanical connection.
Wide operating temperature range from -65°C to 105°C. Supports 7A current and 600V voltage rating. Unshrouded and straight orientation compatible with varied PCB layouts. Features friction lock for secure mating and end-to-end stackability.
Applicable in automotive, computer, and consumer electronics applications.
Explore the range of TE Connectivity PCB Headers available at EnvMart for reliable, industrial-grade interconnection solutions designed to optimize your electronic designs and manufacturing processes.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 3.96 mm, allowing for efficient spacing between contacts.
It is rated for a current of 7A, making it suitable for various electronic applications.
This model has a voltage rating of 600V, which supports robust power transmission.
The housing is made from durable polyester, while the contacts are copper alloy plated with tin for improved conductivity and corrosion resistance.
It uses solder termination, which ensures a strong mechanical connection when mounted.
The operating temperature range is from -65°C to 105°C, allowing it to perform in harsh environments.
This model features 10 male contacts arranged in a single row.
The tail pin length is 3.18 mm, which facilitates secure mounting and soldering.
It has a straight orientation, which is compatible with various PCB layouts.
This pin header is unshrouded, allowing for straightforward integration with IDC connectors.
It is applicable in automotive body and chassis systems, as well as in computer and consumer electronics like desktops and servers.
The country of origin for this pin header is India.
