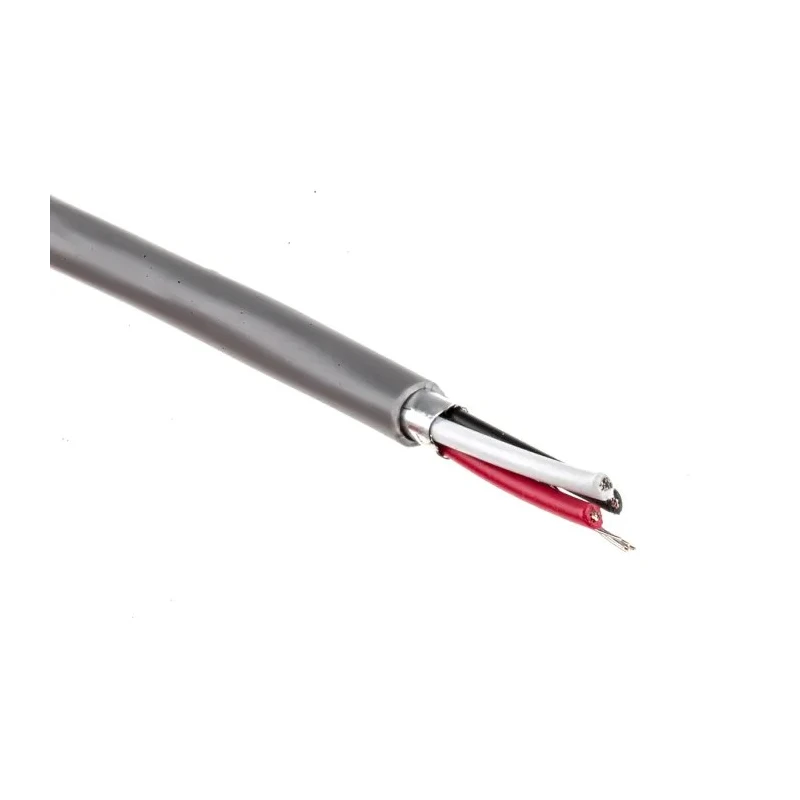

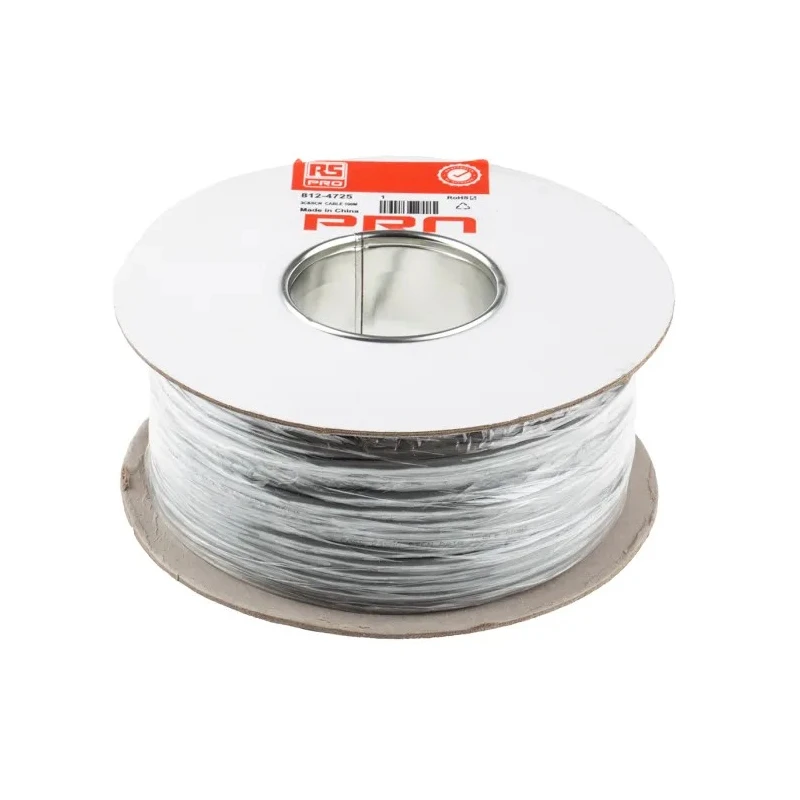

RS PRO Data Cable 3 Cores 0.22 mm² 100 m Voltage 300V Flame Retardant Polyvinyl Chloride Grey Sheath 812-4725
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| CROSS SECTIONAL AREA | 0.22mm² |
| Model | 812-4725 |
| Cable Length | 100m |
| Outside diameter | 4mm |
| Maximum Operating Temperature | 60°C |
| Number Of Cores | 3 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EN, CE, EAC |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| 3 core foil screened data cable,100mBrand | RS PRO |
Key Features
- The cable has three stranded copper cores with a cross sectional area of 0.22 mm².
- It features a flame retardant grey PVC jacket providing enhanced safety in high temperature environments.
- The cable length is 100 meters with an outside diameter of 4 mm.
- Suitable for industrial and automation applications requiring screened multicore data cables.
- The cable complies with EN, CE, and EAC standards for quality and safety.
- Minimum operating temperature is -20°C and maximum is 60°C, ensuring versatility across environments.
- The conductor strands are 7 strands of 0.2 mm diameter each, classified as 24 AWG.
Product Description
RS PRO 812-4725 Data Cable is a high-quality product designed for use in electrical, automation, and industrial applications. Featuring 3 stranded copper cores inside a grey polyvinyl chloride (PVC) sheath, this cable offers a cross-sectional area of 0.22 mm² and a length of 100 meters, well-suited for extensive wiring needs.
The cable withstands operating temperatures from -20°C up to 60°C, making it reliable in varying climatic conditions. It carries a voltage rating of 300V and conforms to stringent industry standards including EN, CE, and EAC certifications, ensuring safety and performance.
The PVC sheath is flame retardant, providing essential protection in environments with potential fire risks. The cable consists of seven 0.2 mm strands per conductor, classified as 24 AWG, which supports flexible and durable connections.
This screened multicore cable is ideal for applications such as factory automation, machine control equipment, large control panels, conveyor systems, and entertainment and audio industries. The screened design improves signal integrity and reduces electromagnetic interference, which is vital in mixed cable environments.
The cable’s grey outer sheath is both robust and flexible, facilitating easy installation and organization in complex cable runs. Multicore construction assists in reducing wire clutter and simplifies installation in control panels and industrial wiring setups.
The cable has three stranded copper cores with a cross sectional area of 0.22 mm². It features a flame retardant grey PVC jacket providing enhanced safety in high temperature environments. The cable length is 100 meters with an outside diameter of 4 mm.
Suitable for industrial and automation applications requiring screened multicore data cables. The cable complies with EN, CE, and EAC standards for quality and safety. Minimum operating temperature is -20°C and maximum is 60°C, ensuring versatility across environments.
The conductor strands are 7 strands of 0.2 mm diameter each, classified as 24 AWG.
This RS PRO cable is a dependable choice for professionals needing quality data transmission and durability in electrical wiring systems. Explore more cables and electrical components in the Electronics & Electricals > Wires & Cables > Data Cable category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this data cable is 300V.
This model has a length of 100 meters.
The jacket of this cable is made from flame retardant polyvinyl chloride (PVC).
The minimum operating temperature is -20°C and the maximum is 60°C.
This data cable features 3 cores.
The cross-sectional area of the conductors is 0.22 mm².
The conductors are made of stranded copper.
The outside diameter of this cable is 4 mm.
This cable complies with EN, CE, and EAC standards.
Each core consists of 7 strands of 0.2 mm diameter each.
This model is suitable for industrial and automation applications requiring screened multicore data cables.
The jacket of this cable is flame retardant, providing enhanced safety in high temperature environments.
