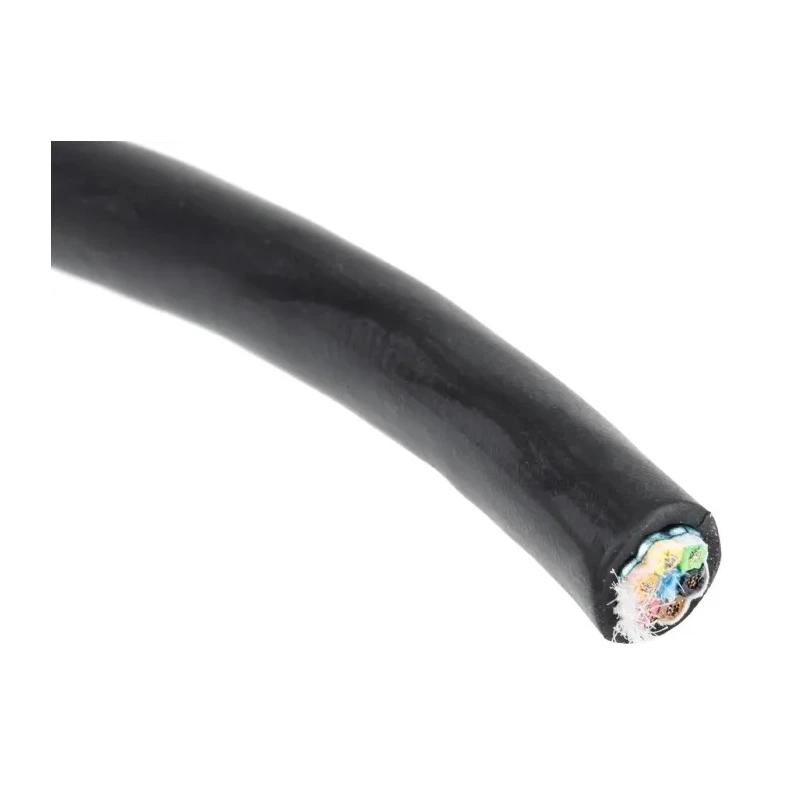

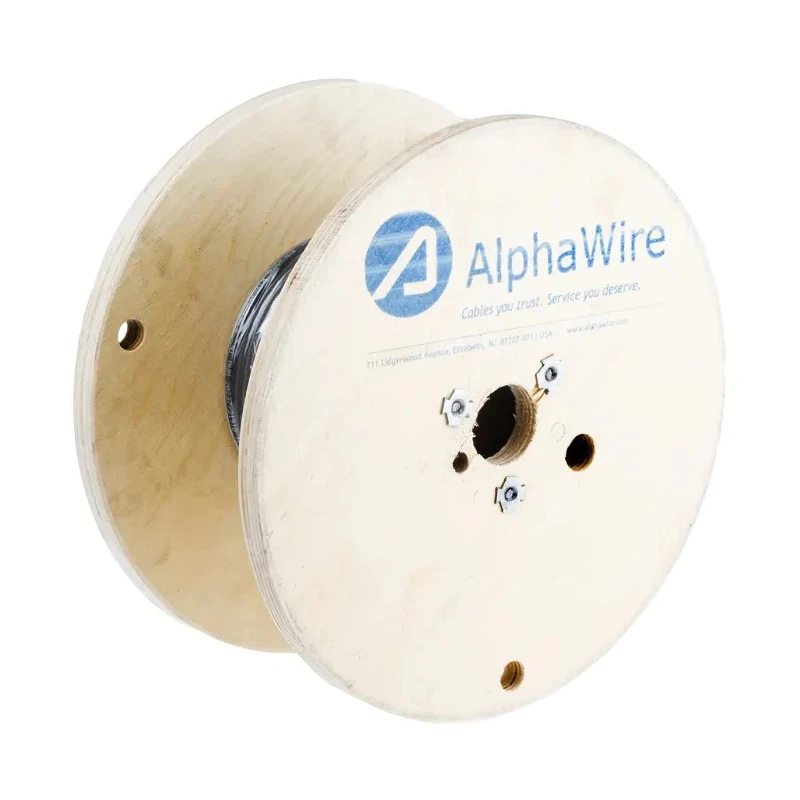

Alpha Wire Xtra-Guard 4 Performance Cable Control Cable 6 Cores 0.35mm² 22 AWG Screened 30 m Black Thermoplastic 45196 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 45196 BK005 |
| Cable Length | 30m |
| Series | Xtra-Guard 4 Performance Cable |
| Outside diameter | 7.24mm |
| Maximum Operating Temperature | 125°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.285 inch (7.24 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Black |
| Fire Behaviour | FT1 |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.35mm² |
| Conductors | 6, Black, Brown, Red, Orange, Yellow, Green |
| Jacket Thickness | 0.045 inch (1.14 mm) |
| Stranding | 7/30 |
| FIT Heatshrink tubing recommendations | FIT-400 and FIT-600 |
Key Features
- The cable is designed with tin copper wire conductors for excellent conductivity.
- It offers a temperature range from -50°C to 125°C for extreme environment performance.
- The screened construction provides protection against electromagnetic interference.
- The jacket material is UV resistant and abrasion resistant, enhancing cable durability.
- Suitable for industrial control applications requiring high flexibility and durability.
- Complies with UL, CSA, and CE standards for safety and reliability.
- The cable has an outside diameter of 7.24 mm and a jacket thickness of 1.14 mm.

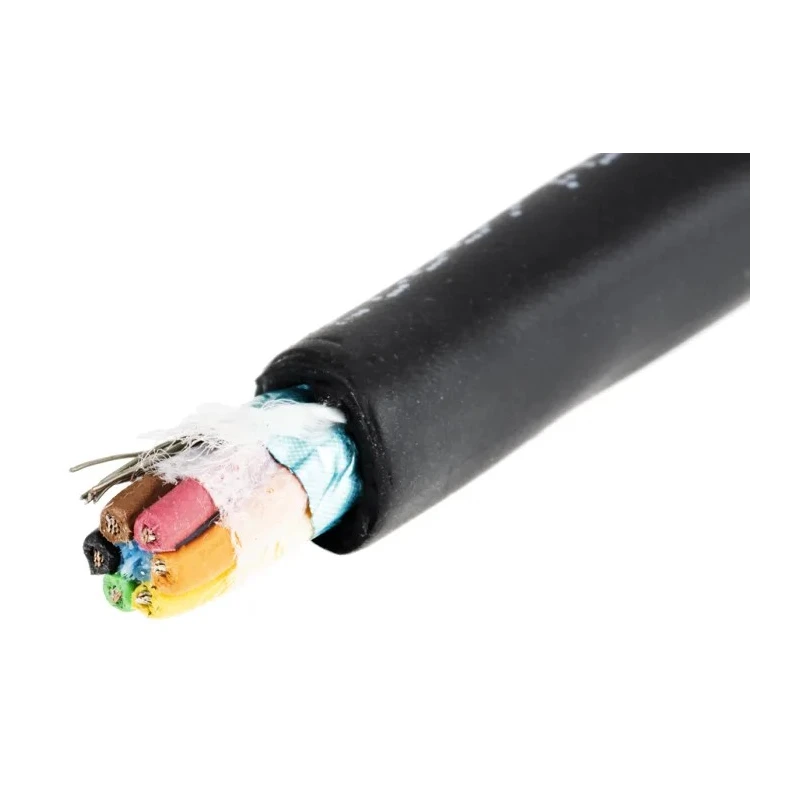

- Color coding with black, brown, red, orange, yellow, and green cores aids easy identification.
Product Description
Alpha Wire 45196 BK005 Control Cable is a high-performance screened cable designed for industrial and commercial control applications. It features 6 cores with tin copper wire conductors sized at 0.35 mm² (22 AWG), making it suitable for precise signal and power control.
The cable jacket and insulation are made from thermoplastic elastomer (TPE), providing excellent flexibility and durability at temperatures ranging from -50°C to 125°C. This range enables the cable to perform reliably in both extreme cold and hot environments.

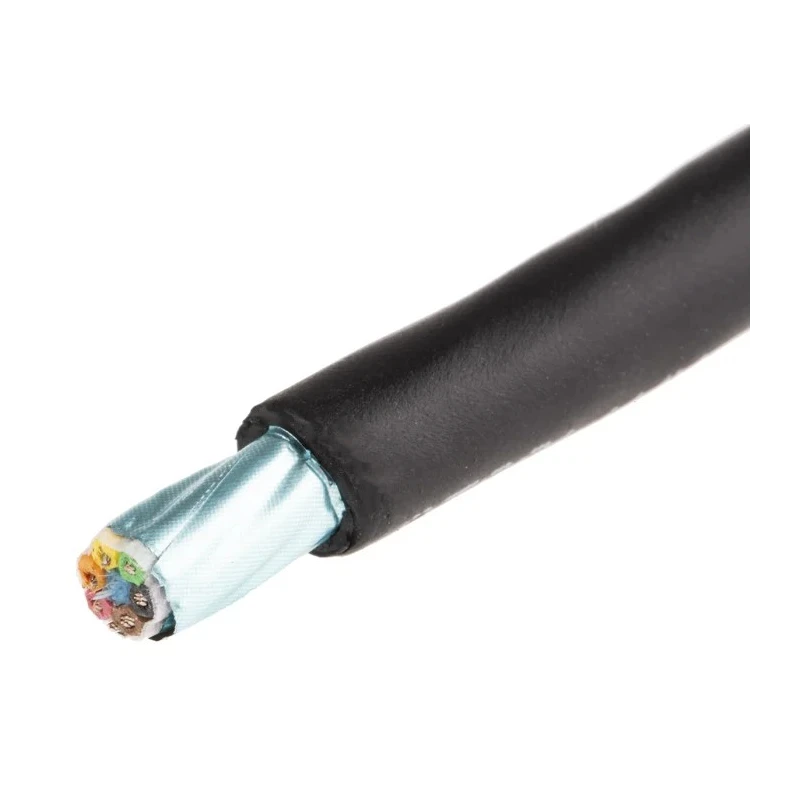

The screened construction provides effective electromagnetic interference (EMI) protection, ensuring signal integrity in complex electrical environments. The black TPE jacket is UV resistant and abrasion resistant, enhancing the cable's longevity in harsh conditions.
The cable diameter is 7.24 mm, with a jacket thickness of 1.14 mm and insulation thickness of 0.41 mm, optimizing mechanical protection without compromising flexibility. The cable contains 7 strands per conductor, providing robust electrical performance.
Alpha Wire 45196 BK005 is UL, CSA, and CE compliant and is approved for use in various industrial sectors, including paper production, mining, food and beverage processing, petrochemical plants, pipelines, and military installations. Its color-coded conductors (black, brown, red, orange, yellow, green) facilitate easy wiring and maintenance.
The cable offers temperature resilience from -50°C to +125°C making it suitable for extreme environment applications. Screened design protects against electromagnetic interference ensuring signal reliability. The TPE jacket provides superior flexibility and resistance to oils, chemicals, abrasions, and UV exposure.
Compliant with UL, CSA, and CE standards for safety and performance. Ideal for control systems in industrial automation, construction, HVAC, and manufacturing sectors. Recommended heatshrink tubing FIT-400 and FIT-600 for enhanced cable protection.
This cable is specifically engineered for applications requiring critical performance and reliability under demanding industrial conditions. Its combination of advanced materials and robust design makes it a trusted choice where consistent control signal integrity is mandatory.
Explore more high-quality industrial cables and accessories in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 125°C.
This model features 6 cores.
The outside diameter of the cable is 7.24 mm.
The jacket material is thermoplastic elastomer (TPE), which provides flexibility and durability.
The cable uses tin copper wire conductors for excellent conductivity.
The voltage rating for this cable is 300V.
The minimum operating temperature is -50°C, making it suitable for extreme conditions.
This cable complies with UL, CSA, and CE standards for safety and reliability.
The insulation thickness is 0.41 mm (0.016 inches).
The recommended heatshrink tubing for enhanced protection is FIT-400 and FIT-600.
Each conductor contains 7 strands.
The conductors are color-coded with black, brown, red, orange, yellow, and green for easy identification.
