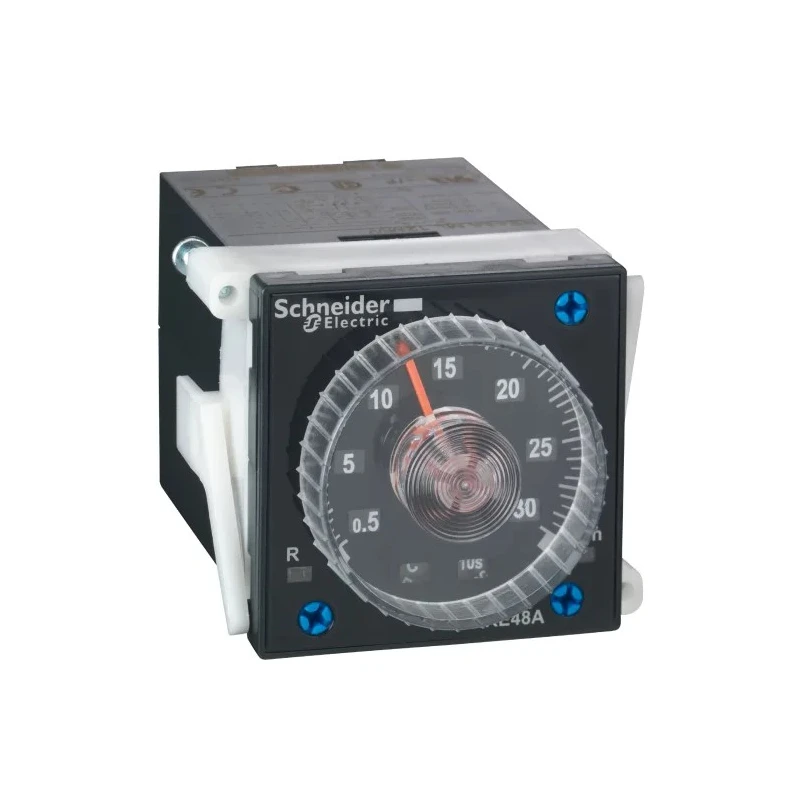

Schneider Electric Harmony Time Series Panel Timer Relay, 2-Contact, 24 to 240 V AC/DC, 5A, Multifunction, 0.02 RE48AMH13MW

Schneider Electric RE48AMH13MW Panel Timer Relay is a multifunctional timing device designed for panel mounting in industrial electrical systems. It features a 2-contact DPDT configuration supporting a 5A current capacity, suitable for precise timing operations ranging from 0.02 seconds up to 300 hours. The relay supports both AC and DC supply voltages from 24 to 240 V, providing high compatibility across various industrial control scenarios.

Its rugged construction includes silver-nickel alloy contacts that ensure excellent conductivity and corrosion resistance, delivering reliable performance under tough operating conditions. The device withstands a broad operating temperature range from -20°C to 50°C, making it suitable for use in challenging environments. The compact dimensions of 48 mm width, 48 mm length, and 96.8 mm height allow for efficient panel integration without excessive bulk.

The relay enclosure meets IP40 and IP50 protection standards, rendering it touch-proof and safe from intrusion by tools or wires greater than 1 mm. Its mechanical durability extends to an estimated 30 million operational cycles, ensuring longevity in demanding industrial applications.

Installation is simplified with included accessories and an 8-pin terminal type configuration. The relay complies with numerous international standards such as IEC 60669-2-3, UL, CSA, and EN 50081-1/2, guaranteeing performance, safety, and electromagnetic compatibility.

Typical use cases include industrial automation systems, factory conveyor controls, and HVAC equipment management, where precise and reliable timer relay functions are essential. This Schneider Electric timer relay is manufactured in Indonesia, following stringent quality controls consistent with the Harmony Time Series lineup.

Robust 5A contact current rating for reliable switching in industrial applications. Wide timing range from 0.02 seconds to 300 hours for varied control needs. Compact panel mount design with IP40 and IP50 touch protection ratings.

Durable silver-nickel alloy contacts providing corrosion resistance and conductivity. Operating temperature range from -20°C to +50°C suitable for demanding environments. Mechanical lifespan up to 30 million cycles ensuring long-lasting performance.

Equipped with 8-pin terminals for easy installation and connection. Complies with multiple international standards including IEC and UL for safety and reliability. Compatible with industrial automation, factory conveyors, and HVAC system applications.
