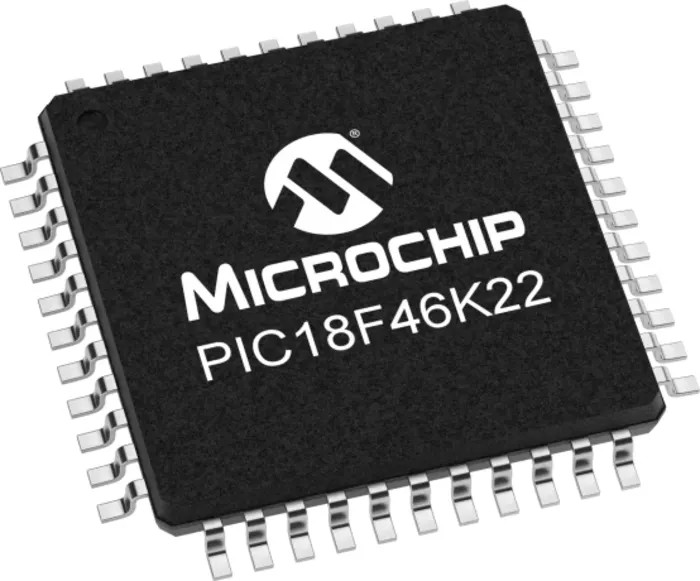

Microchip 8-bit PIC18F Microcontroller 64 MHz 64kB FLASH 44-Pin TQFP PIC18F46K22T-I/PT

Microchip PIC18F46K22T-I/PT is a high performance 8-bit PIC microcontroller operating at up to 64 MHz, featuring 64kB of FLASH program memory and a 44-pin TQFP surface mount package. This microcontroller is designed to deliver robust performance with a C compiler optimized RISC CPU architecture, suitable for embedded systems in industrial, automotive, and consumer electronics applications.

It includes 3.9kB of RAM, 64kB maximum expanded memory size, and a data bus width of 8 bits. Connectivity interfaces such as MSSP and EUSART provide versatile communication options. With a maximum supply voltage of 5.5V and minimum operating voltage of 2V, the device supports a wide power range.

This device also offers extensive features such as two 10-bit analog comparators, a 5-bit DAC, 30 channels of 10-bit ADC, and multiple timers to meet various system requirements. Power management capabilities include nanoWatt XLP for ultra-low power consumption and protective functions like Power-on Reset, Brown-out Reset, and an extended Watchdog Timer with integrated oscillator for enhanced system reliability.

Operating temperature ranges from -40°C to 85°C allow deployment in harsh environmental conditions. The device complies with RoHS standards and meets the automotive AEC-Q100 standard, ensuring quality and reliability for automotive applications.

Its compact 10mm x 10mm x 1.05mm package with 44 pins supports efficient PCB layout and integration. The microcontroller is ideal for embedded applications requiring dependable performance, robust peripheral integration, and low power consumption.

Features a high performance RISC CPU with C compiler optimized architecture and instruction set. Includes 64kB linear program memory and 3.9kB RAM for efficient data handling. Operates with a data bus width of 8 bits and supports MSSP and EUSART interfaces.

Supports extended operating temperature range from -40°C to 85°C for industrial environments. Contains 2 analog comparators and 30 channels of 10-bit ADC for precise signal processing. Includes a 5-bit DAC and multiple timers for versatile functions.

Equipped with nanoWatt XLP low-power management for energy efficiency. Complies with automotive standard AEC-Q100 for automotive suitability. Features multiple protective systems including Fail-Safe Clock Monitor and Brown-out Reset.

Compact surface mount TQFP package supports easy PCB integration. Explore a wide range of Microchip Microcontrollers and electronics components on EnvMart for advanced embedded system design and manufacturing needs.
