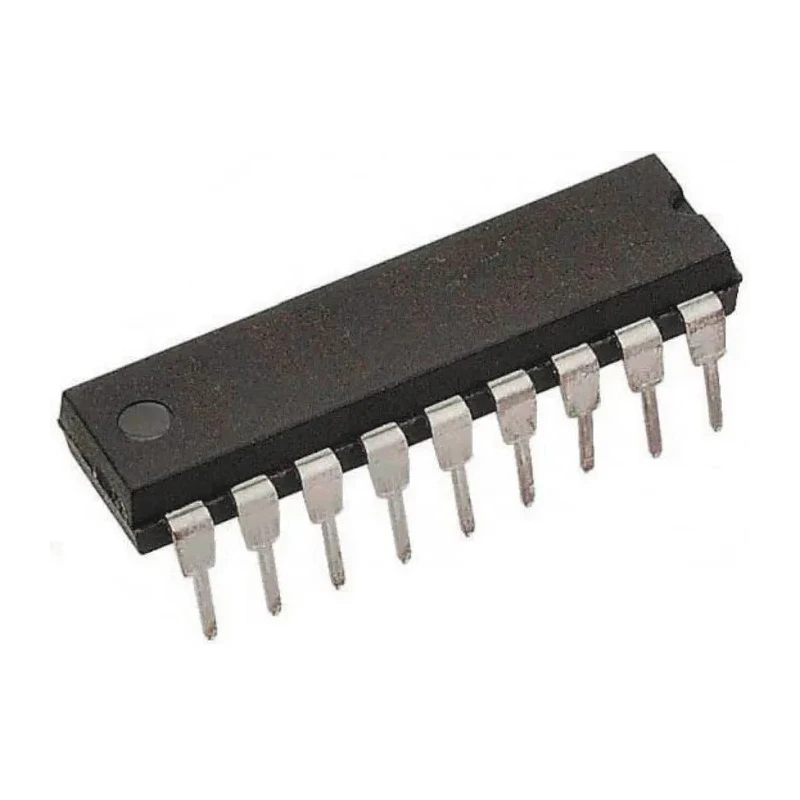

Microchip 8-Bit PIC16C Microcontroller 3.5kB OTP EEPROM 40 MHz 18-Pin PDIP PIC16C622A-04I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16C622A-04I/P |
| Width | 8.26mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 18 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | OTP EEPROM |
Key Features
- This microcontroller features an 8-bit data bus and PIC architecture.
- Equipped with 3.5kB of program memory as OTP EEPROM for reliable code storage.
- Supports SPI interface type for flexible communication.
- Operates within a voltage range of 2 V to 5.5 V with a maximum power dissipation of 1 W.
- Includes 22 programmable input/output pins and 2 analogue comparators.
- Operable in temperature ranges from -40°C to 85°C, suitable for industrial applications.
- Physical dimensions are 22.99 mm length, 8.26 mm width, and 3.68 mm height.
- Features one 8-bit timer and the RISC instruction set architecture.
Product Description
Microchip PIC16C622A-04I/P is an 8-bit microcontroller featuring 3.5kB OTP EEPROM program memory and operating at a maximum clock frequency of 40 MHz. Packaged in a standard 18-Pin PDIP, it offers an 8-bit data bus architecture and a flexible SPI interface suitable for a variety of embedded applications.
The device includes 22 programmable input/output pins and 2 analogue comparators, providing multiple interfacing options. Its operational voltage range spans from 2 V minimum to 5.5 V maximum with a maximum power dissipation of 1 Watt, making it energy efficient for diverse industrial electronics.
Designed to work reliably in harsh environments, it supports operating temperatures from -40°C to 85°C. The physical size of the microcontroller - 22.99 mm in length, 8.26 mm in width, and 3.68 mm in height - ensures compact integration into electronic assemblies.
Features such as one 8-bit timer, an 8-level hardware stack, 35 instructions, watchdog timer protection, power-on reset, and power-up timers support robust and flexible design implementations. The RISC instruction set architecture enhances processing efficiency at up to 10 MIPS speed.
This microcontroller adheres to ISO 9001 automotive standards, ensuring quality and reliability for automotive and industrial electronics use cases. Its through-hole PDIP package supports quick and secure mounting on printed circuit boards, ideal for development and production environments.
8-bit data bus width with PIC architecture. 3.5kB OTP EEPROM program memory. Maximum clock frequency of 40 MHz. Operating voltage between 2 V and 5.5 V. 22 programmable I/O pins for interface flexibility. 2 analogue comparators included.
Operating temperature range from -40°C to 85°C. One 8-bit timer available. Compliant with ISO 9001 automotive standards. Through-hole mounted 18-Pin PDIP package.
Ideal for industrial, automotive, and embedded system applications requiring reliable 8-bit microcontroller solutions. Browse more Microchip Microcontrollers and electronic components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16C622A-04I/P microcontroller is 40 MHz.
It features a program memory size of 3.5kB, utilizing OTP EEPROM for code storage.
The operating voltage range for this unit is from 2 V to 5.5 V.
This microcontroller includes 22 programmable input/output pins, allowing for flexible interfacing options.
It is packaged in an 18-Pin PDIP (Plastic Dual In-line Package) for through-hole mounting.
The operational temperature range is from -40°C to 85°C, making it suitable for industrial applications.
It supports an SPI (Serial Peripheral Interface) for flexible communication with other devices.
This microcontroller includes 2 analogue comparators for enhanced functionality.
The maximum power dissipation for this microcontroller is 1 Watt.
The device uses a RISC (Reduced Instruction Set Computing) instruction set architecture, enhancing processing efficiency.
The height of the PIC16C622A-04I/P microcontroller is 3.68 mm.
It complies with ISO 9001 automotive standards, ensuring quality for automotive applications.
